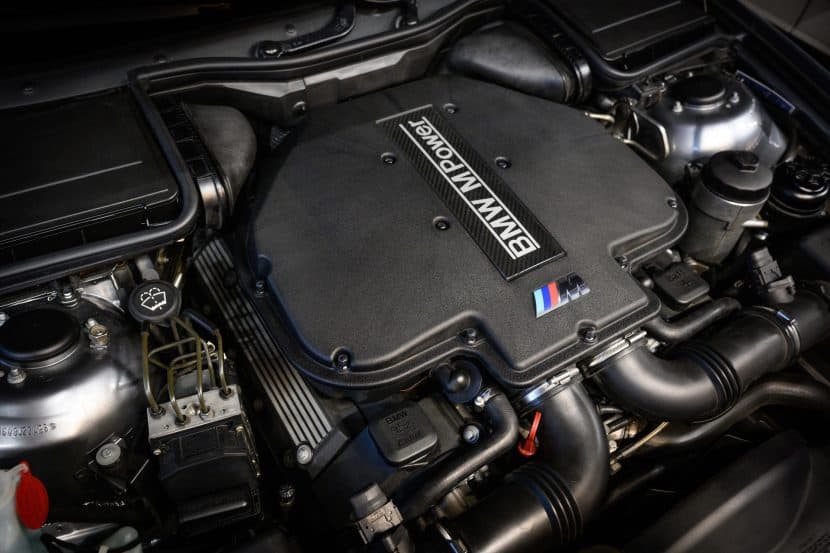

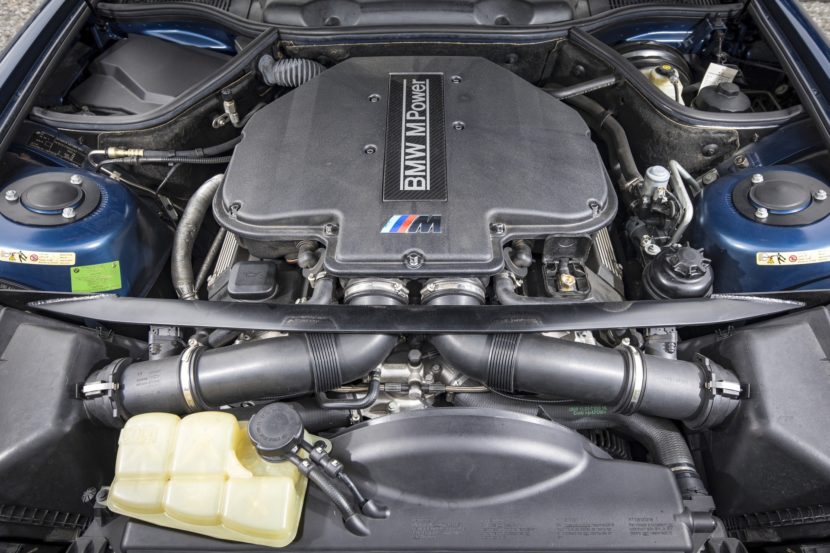

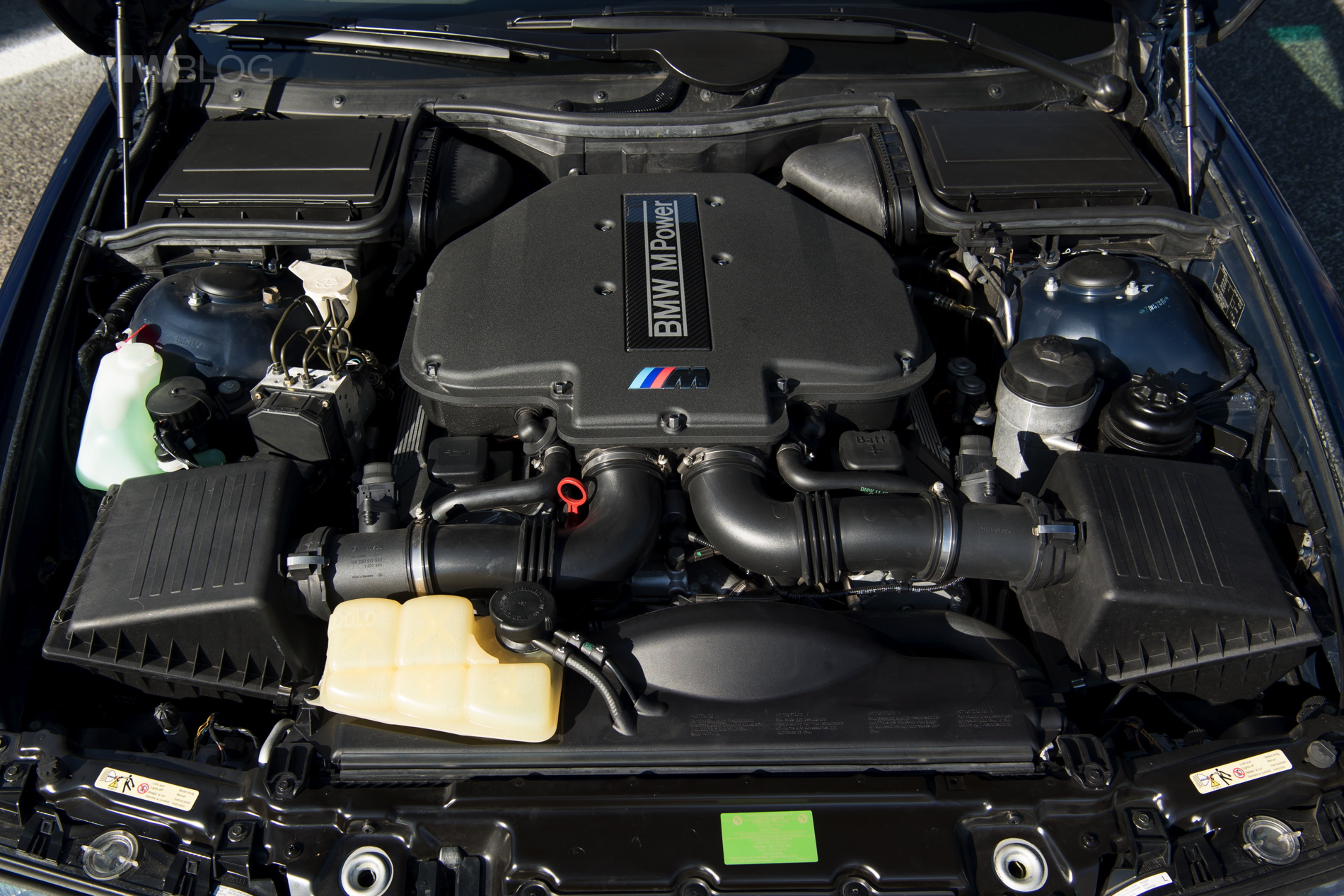

The BMW S62 engine (full model code S62B50) represents a flood mark in the natural engine line from BMW. As a high-performance variant of the M62, it was only adapted to the legendary E39 M5 and the breathtakingly beautiful E52 Z8 Roadster. The S62 introduced between 1998 and 2003 marked the first V8 engine from BMW with double vanos-variable valve-timing technology, which be applied to both admission and exhaust camshafts-power, reactionability and efficiency. With a robust performance of 394 hp, individual throttle flaps for unmatched gas precision and an exciting RPM redline, which is supplemented by a glorious V8 soundtrack, the S62 remains for its reliability, efficiency and tuning potential and voted the tuning potential, which continued to be captured for decades after his debut.
Motor overview and properties
The BMW S62B50 represents an era of uncompromising performance and offers a remarkable combination of blanket and technical sophistication. The S62 was derived from the M62 engine architecture and was severely refined by the Motorsport Division of BMW in order to become one of the Marque most worshiped engines.
The most important functions include:
- Shifting: 4,941 cc (5.0 liters)
- Configuration: V8, of course sucked out
- Exit: 394 hp (400 hp) and 369 LB-FT (500 Nm) torque
- Redline: 7,000 rpm
- Valvetrain: Dohc, double vanos variable valve timing
- Intake: individual throttle folding body (ITBS) with electronic drive control
Differences compared to the M62
- Individual electronically operated gas bodies for each cylinder
- Driver selectable gas reaction modes (“normal” and “sport”)
- Increased compression ratio (11.0: 1 compared to 10.0: 1 in M62)
- Double series-timing chain (individual series in the M62)
- Hohle camshafts for reduced weight
- Siemens MSS 52 engine control unit
- Double air absorption and double mass flow sensors
- Semi-drug swamp oil system with two additional scavenging pumps to improve the lubrication during the aggressive curve
- Aluminum engine block and cylinder heads (together with M62)
- Motor module in the Dingolfing plant from BMW
Reliability and common questions
For a high-performance engine from this time, the S62B50 has a reputation for reliability. Robust internal components, such as B. forged crankshaft and rod connection rods, make the engine able with a proper care with high mileage. However, some known weaknesses require attention:
- Timing Chain Guides: As a rule, the most discussed weakness of the plastic chains worsen over time, which leads to noise and potential catastrophic failure when neglected. The preventive replacement of 160,000 km is recommended.
- Vanos system: The double vanos are clever, but susceptible to sealing of seals, which can affect performance and driving care. The reconstruction or replacement of vanos units with higher mileage restores the performance and prevents serious problems.
- Cooling system: As with other BMW engines of the era, the cooling system components of the S62 (cooler, water pumps, expansion stands) benefit from regular inspections and preventive reductions to maintain reliability.
- Stang camps: Although more robust compared to later BMW engines (such as the S65/S85), examples with a high Mila performance can still occur with pole flows. The proactive replacement significantly expands the longevity of the engine.
Routine oil changes, careful monitoring of timing chains, vanos and maintenance of the cooling system are crucial for ensuring reliability.
Efficiency and fuel consumption
In view of its performance -oriented nature, the S62 is not known for fuel efficiency, especially according to today’s standards. Efficiency officially evaluated with around 13-15 MPG (city) and 21-23 MPG (motorway) and depends heavily on the driving style. Moderately driven, the S62 can achieve a respectable fuel consumption of the highway, especially for long -distance sticks. The real average values in the real world usually float between 15 and 18 mpg.
Tuning and modification potential
Enthusiasts appreciate the S62B50 for its tuning potential. Although no main candidate for massive performance gains without forced induction, significant improvements in terms of performance, sound and drive are possible:
- ECU judge: The gas reaction can optimize high-quality tuning software, remove speed limiter and offer modest performance results (typically about 20 to 30 hp).
- Take and exhaust: The absorption and delivery systems of the aftermarket performance improve the throttle valve reaction, acoustics and add incremental horsepower.
- Header: High-performance header significantly improve exhaust gas flow, increase the torque of the medium to high speed and increase the tip.
- Forced induction: Although expensive, Supercharger kits are available and can certainly be transferred to electricity with suitable supporting changes and engine reinforcement.
- Individual throttle flap reinforcement: Tuning or Aftermarket -Itb setups can sharpen the reaction and further improve the recording acoustics.
The legendary sound
The sound profile of the S62 is unforgettable – Deep, Resonant and Melodic. The individual gas bodies create a characteristic aggressive induction shouting, while the V8 exhaust grade delivers a throat and sophisticated soundtrack that intensifies itself towards the redline of 7,000 rpm. This combination of mechanical precision and auditorial drama increases the driving experience beyond the mere statistics and also makes the S62 an enthusiastic favorite for decades after its production.
Applications:
- 1998–2003 BMW M5 (E39)
- 2000–2003 BMW Z8
- 2005–2010 ASCARI KZ1
- 2006 ASCARI A10
