Electrical Automobile Structure Design

The tempo of acceleration within the electrical automobile market has taken shoppers and producers alike unexpectedly. That’s largely as a consequence of progressive corporations and pioneers who’ve labored relentlessly to mitigate many if not all the present shopper issues evolving electrical autos. These issues signify some important engineering challenges, reminiscent of extending driving vary, growing automobile efficiency, dependable acceleration and lowering charging time. These challenges all signify larger vitality calls for and thermal challenges that require progressive resolution with out negatively impacting security, reliability and affordability.

A key design ingredient to make sure the continued proliferation of electrical autos is named skateboard structure, a design path that has been evolving for the previous 20 years. Skateboard structure enhances automobile platforming, permitting authentic gear producers to attain the mandatory economies of scale and manufacturing methods like automation that can in the end drive EV prices decrease than equal inner combustion engine platforms. It additionally offers automobile designers with extra flexibility to create design parts that improve the patron expertise with their autos. These embrace improvements in miniaturization and balancing management of car weight and value in addition to connectivity that can assist automotive system architects obtain scalability and sturdiness with out sacrificing value and packaging dimension.

Charged EVs Learn more about EV architecture design

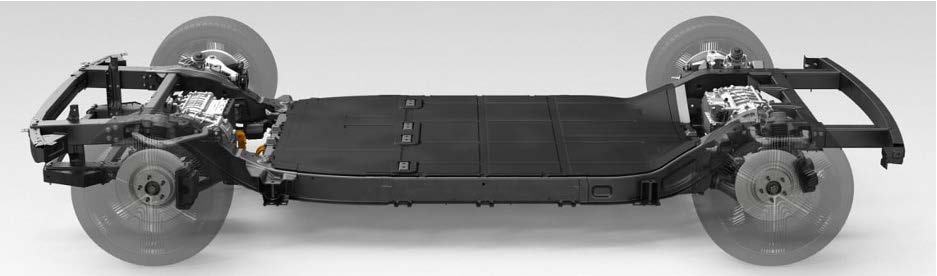

EV Skateboard Structure

Charging improvements and applied sciences additionally assist allow quick automobile charging. Vital electrical automobile connections join the facility from the grid to the battery and from the battery to important methods throughout the automobile. One distinctive connection system expertise offers scalability to help ever-evolving automobile calls for by facilitating numerous cable varieties – copper or aluminum, spherical or flat and normal or strong cabling. That scalability permits producers to help the growing calls for on the powertrain and charging methods with out sacrificing packaging area.

1656345802 890 Charged EVs Learn more about EV architecture design
Scalable options

STACK SYSTEM DESIGN

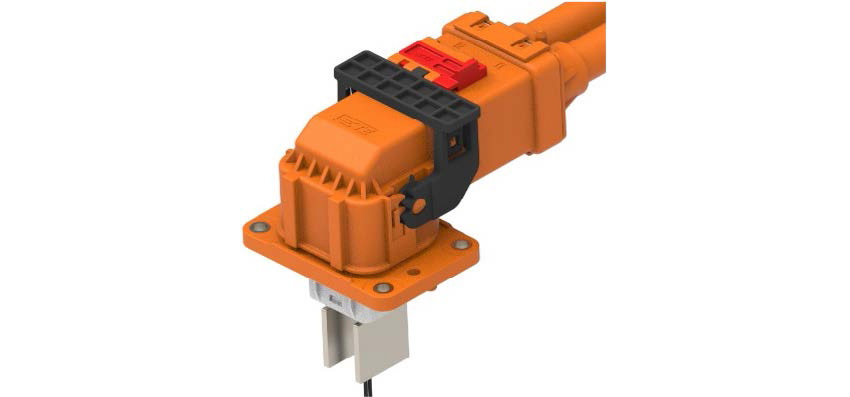

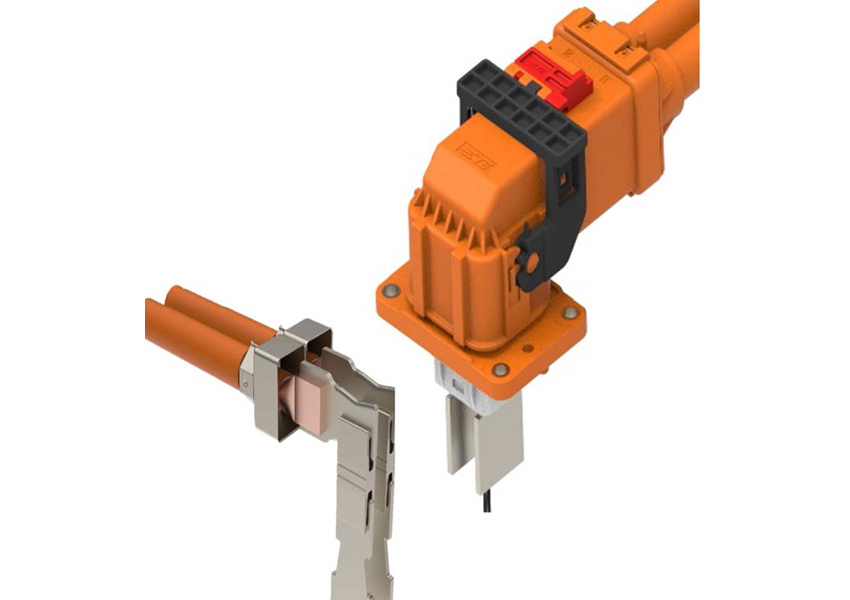

Stack methods present unparalleled design flexibility for automotive engineers. A stack system doesn’t look a lot completely different than the standard high-power automotive electrical connection methods, however at its core is a stack of double-ended fork terminals which can be pre-installed and floating independently throughout the connector housing cavity.

Conventional automotive terminal methods are usually extra difficult – the stack system design eliminates or strikes one-time features to extra succesful parts. This method ensures no errors might be made relating to alignment, orientation or partially-installed terminal detection to ensure the terminal is put in appropriately into the housing. One of many benefits of this method is the truth that the terminal might be put in in a wide range of completely different positions and orientations that gives the automobile engineers with unparalleled versatility.

1656345802 330 Charged EVs Learn more about EV architecture design

In the case of a scalable terminal or connector, design reuse is deployed, however that always doesn’t scale linearly with the facility calls for, so engineers could have to regulate different characteristic units that create a stage of complexity. However with a stack system, various ranges of efficiency might be made out of the very same die solid with minimal danger simply by growing or lowering the variety of forks within the system. This true scalability tremendously reduces the time to market, and the carrying functionality is restricted solely to the scale of the cabling expertise used within the software. The forks within the stack might be scaled up and right down to match the conductivity of the cable, offering a continuing stream of present with out factors of excessive resistance that create instability within the system.

ADDRESSING ELECTRIFICATION CHALLENGES

As a result of thermal inertia of those methods, massive linked methods warmth up very slowly and due to this fact can carry present ranges exceeding their regular state present limits for brief durations. This habits might be leveraged for various purposes, reminiscent of electrical automobile charging that requires excessive energy. Nevertheless, one danger is overdesigning the system – for instance, an 800-amp steady connection system requires a particularly massive cable dimension and connector system.

The stack system distinguishes itself with industry-leading contact density. Choices vary from 40 factors of contact to 64 factors of contact, offering adequate headroom for automobile designers and system architects to make use of a connection system with a really small profile that may deal with very excessive transient masses with out sacrificing value and efficiency.

FAST CHARGING IN NEXT GENERATION MOBILITY

Whereas needed for the widespread adoption of electrical autos, high-speed charging presents a wide range of distinctive engineering challenges. Shoppers anticipate quick, handy charging just like filling up at a gasoline station. This represents some important engineering challenges for thermal administration to restrict the floor temperature of contact surfaces and decrease electrical resistance whereas sustaining environment friendly and secure automobile charging.

One key problem with quick charging is thermal administration of the warmth byproduct of vitality switch. The warmth has a direct unfavorable affect on element reliability by lowering their service life, so the system should derate with a purpose to hold the system low and in a position to function. Danger mitigation strategies embrace warmth discount by managing {the electrical} resistances within the system, or thermal administration applied sciences reminiscent of lively or passive cooling methods.

1656345802 537 Charged EVs Learn more about EV architecture design

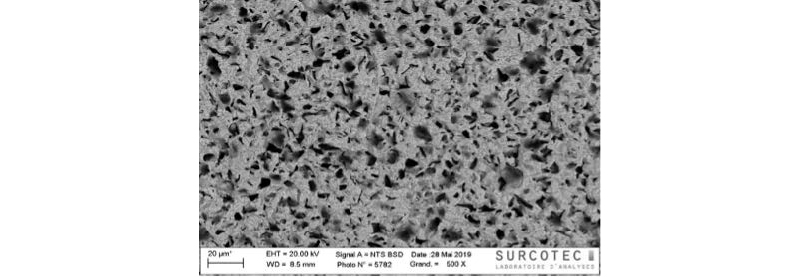

TENDUR extremely abrasion resistant HV contact plating

These mitigation efforts current a variety of alternative for energy losses or extra resistance that may lower the effectivity of the system. Utilizing a full system evaluation helps reveal the place and the way a lot warmth is being generated all through the system and the place the warmth is flowing. Different challenges embrace limiting the temperature of touchable surfaces to 90 levels Fahrenheit and decreasing mating-induced put on on charging parts.

One solution to overcome these challenges and enhance charging efficiency is through the use of plated surfaces to guard the charging inlet contact zone from put on. Through the use of abrasion-resistant contact plating, self-lubrication ensures the flexibility for the parts to resist 50,000 mating cycles with no contact. Different options embrace lively or passive cooled charging plugs which can be important for high-speed electrical automobile charging.

Collectively, TE and TTI supply a variety of high-power connectivity merchandise, together with high-power connectivity contacts in addition to interconnects specialised to be used inside battery packs.

Be taught extra at:
https://www.tti.com/content material/ttiinc/en/producers/te-connectivity/marketing campaign/te-hv-terminal.html
