Market State of affairs
- Customers are embracing EVs as a proactive funding in environmental duty and CO2 emission discount.
- Although EV gross sales are on the rise, important infrastructure hurdles stay.
- Whereas single-phase charging is available, continued EV gross sales development and client confidence (pushed by comfort and reliability) would require broad entry to quick DC charging stations.
Utility Challenges
- Constructing out a fast-charging EV infrastructure calls for a return on funding by way of dependable methods that prioritize sturdiness, efficiency and security.

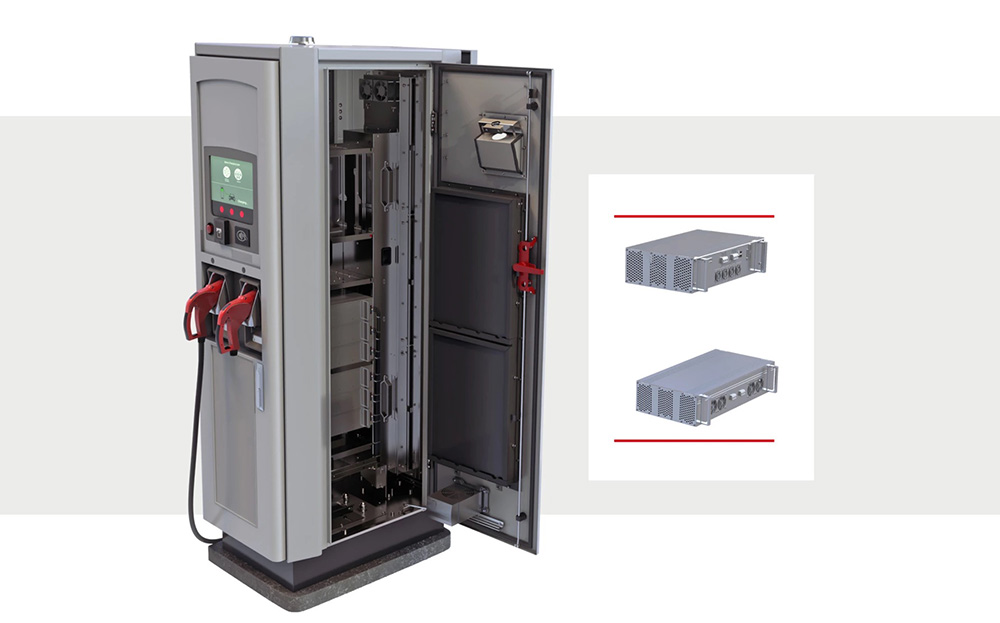

- A significant concern with DC quick and ultra-fast chargers is their voltage ranges that vary from 400 V to over 1000 V and energy that may be in extra of 350 kW.
- To manage the warmth generated by such excessive energy switch, system designers should make use of highly-effective thermal administration methods to keep up constant and dependable energy supply, each for the charger and the battery pack.
- Controlling the temperature rise of key converter board elements built-in into energy modules and discrete methods requires excessive efficiency thermal interface supplies (TIM) to make sure reliability and security.
Options

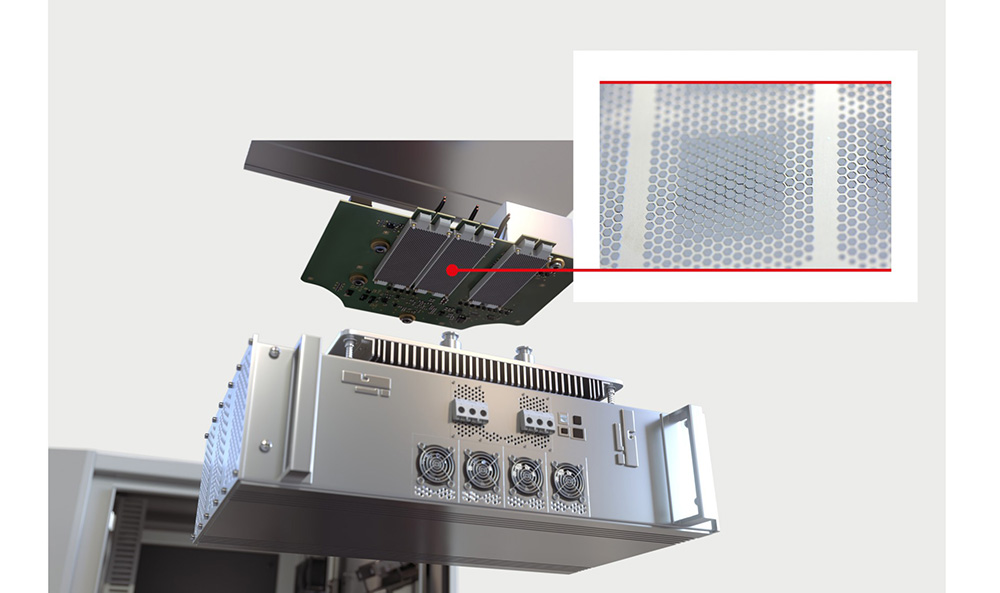

Section change materials on an influence module system converter board
- For thermal management inside the energy module, a skinny bond line TIM that gives very low thermal impedance for maximized thermal switch is good and helps ship efficiency stability over the life expectancy of the module, which will be so long as 10 years.
- Section change TIMs, which ‘soften’ and movement solely at designated section change temperatures, are the best thermal administration answer for energy module methods. They’re simply processed, present skinny bond traces for optimized thermal switch and don’t undergo from materials migration like greases. Henkel’s LOCTITE TCP 7000 and LOCTITE TCP 4000 are confirmed TIM options for energy modules utilized in excessive voltage DC quick charging methods.

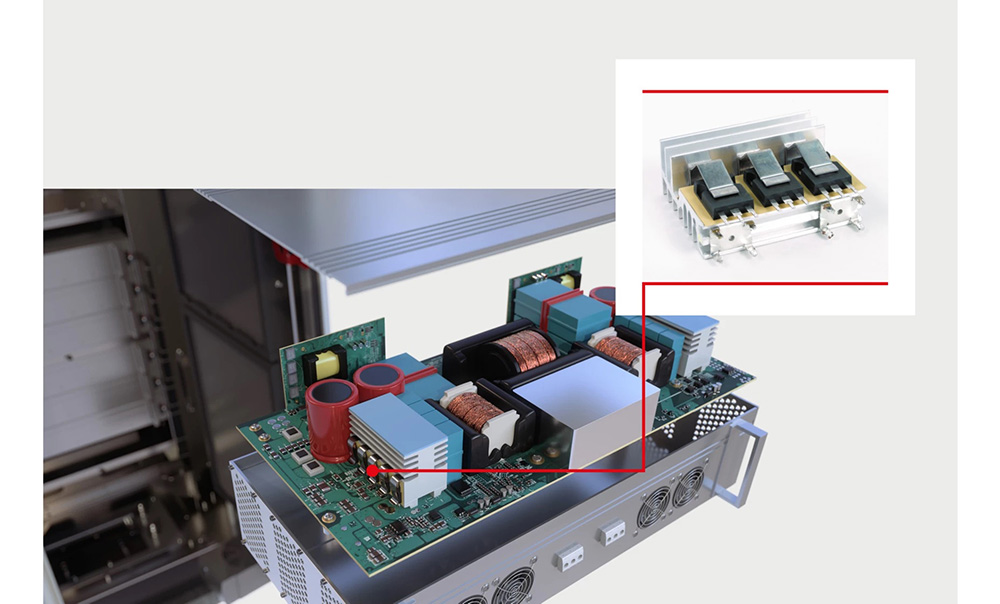

SIL PAD materials on a discrete element system converter board
- Managing warmth generated from the converter board within the DC charger’s discrete element system will be achieved with quite a lot of TIMs, relying on the particular design and the processing necessities. BERGQUIST® model GAP PAD and SIL PAD TIMs are custom-cut, easy-to-apply pad-based choices, some with electrical isolation options as effectively. If the design structure is complicated or excessive automation is a consideration, liquid Hole Filler supplies are handiest.
As EV charging infrastructure machine growth accelerates, there isn’t any higher companion than Henkel for thermal administration supplies engineering and session. World leaders in TIM innovation, collaboration with Henkel delivers entry to broad lab testing and analytics, coaching, gear partnerships, prototyping, on-site assist and best-in-class customer support.
