Think about the problem. You’re working for an electrical automobile (EV) startup, designing the {Hardware}-in-the-Loop Simulation (HILS) check system. Every part is new – the {hardware}, the software program, the instruments, the testers and the check code. But, the system should be as correct as attainable to simulate the working atmosphere appropriately. You’re additionally engaged on the digital management unit (ECU), which displays and controls the EV batteries. To check them completely, the software program should be confused past its regular working vary. To completely check the EV battery management algorithms, enhanced simulation with fault insertion is the one strategy to safely check the software program earlier than hitting the street in prototype automobiles.

{Hardware} within the Loop Simulation for automotive ECU programs

Throughout improvement, HILs are usually employed to check the operation of the ECU in a simulated real-world atmosphere wherein the ECU will function. Instrumentation simulates an ECU’s sensor inputs and captures and verifies the ECU management outputs. Security-critical controllers normally require certification, the place faults, together with quick and open circuits, are launched. The ECU’s response is analyzed to make sure it performs in a predictable and secure method. Automated fault insertion programs enable verification assessments to be run effectively in a managed and repeatable approach.

Charged EVs Designing a hardware in the loop simulation test system for
Instance of {Hardware} within the Loop Simulation

The automotive atmosphere can typically be very hostile, particularly for sensors, with broad ranges of temperature generally skilled. Failures can happen as a consequence of corrosion, getting old, harm and even defective set up. Due to all of the options and choices obtainable in automobiles, particularly as extra digital programs are being launched for ADAS programs, the ECUs have gotten very complicated, so the accuracy of HILS is important for a profitable launch.

In an EV, the battery dominates, so the ECU that manages the battery should be extremely correct, environment friendly and assured dependable to make sure secure operation.

Software program testing a battery Digital Management Unit in an Electrical Car startup

Pickering Interfaces gives services to streamline the design, deployment and sustainment of high-performance digital check and verification programs. The corporate was approached by a staff designing an EV start-up’s software program check programs for battery ECUs. Each HIL check programs and benchtop testers are required.

The software program check staff confronted three challenges. First, it discovered itself in a really dynamic and altering state of affairs. As a start-up addressing a brand new market, the product vary was nonetheless evolving as new necessities emerged. This meant long-term check methods with widespread check components had been troublesome to plan and implement. Second, the whole lot was new. The ECU software program, {hardware} and sensors had been new. The {hardware} and software program wanted debugging, and generally it was not apparent whether or not the problem was brought on by a {hardware} fault or within the software program. The battery configuration was additionally new. Certainly, the check staff itself – though comprising extremely skilled personnel – was additionally new. Lastly, the check atmosphere was doubtlessly harmful. To make sure operational security limits, precise EV batteries should be examined nicely above their specified scores. Excessive currents as much as 2000A and excessive voltages within the lots of of volts should be employed in an precise EV battery for practical security issues. Due to this fact, many redundancies and excessive security precautions had been vital for typical testing.

In opposition to this background, the staff was continuously battling to make sure that the design of the HIL check system was functionally secure, correct and repeatable and was able to increasing to dynamic {hardware} and software program improvement cycles. Of their phrases, it was “a monumental problem to wring out all of the items concurrently whereas adhering to an aggressive schedule.”

Due to this fact, the software program check platform wanted to be expandable and really versatile. The choice to make use of instrumentation based mostly on industry-standard PXI and LXI codecs was apparent. Nonetheless, the EV start-up additionally determined to make use of each a completely practical HILS system and versatile benchtop tools in its software program check technique.

HIL programs should simulate the atmosphere below which the system will function not just for security issues however to instrument a complete check technique completely. This may be achieved utilizing fashions and simulation or by bodily means. Accuracy and repeatability are very important. Fashions will be very space- and cost-effective, however the accuracy or actual replication of the simulation atmosphere would possibly endure. With batteries, it’s essential to regulate the temperature to forestall thermal runaway. Batteries for EVs can simply make use of over 100 thermistors. The EV check improvement staff most well-liked to make use of programmable resistors as a bodily illustration of the thermistors because the conduct of a programmable resistor extra precisely represents that of a thermistor (which is, in fact, a sort of resistor).  The programmable resistors may also give the complete vary of traits of the particular sensor, together with variations with temperature – described by the EV firm because the ‘thermal isotope.’ Nonetheless, with over 100 sensors to simulate, deciding on programmable resistor playing cards with as many channels as attainable is important to keep away from making giant check programs. This turns into a tradeoff to amass sufficient channels, accuracy and vary in opposition to price and house. The client commented that the check system turns into “extra complicated than the precise system to have the ability to simulate and check for all attainable eventualities.”

Fault insertion is one other consideration; for instance, how do you replicate and reply to a damaged wire? If driving a excessive voltage and present drive relay, in a worst-case state of affairs, management currents as excessive as 50A may be in circulation – principally a welder – so all of the circuitry should be capable of deal with 50A and reply in a particular time and shut off successfully.

Pickering options

The HIL Take a look at System Workforce Lead was a long-time person of Pickering merchandise from his earlier employment, so the staff approached Pickering to beat the constraints of its current HILS programs, which weren’t versatile sufficient to fulfill its wants for brand spanking new check ranges and capabilities. Lack of assist was additionally a problem. Pickering labored with the staff to develop a roadmap for a HILS system that was extra applicable for his or her necessities.

An entire bodily HILS system based mostly across the following Pickering merchandise:

Charged EVs Designing a hardware in the loop simulation test system for

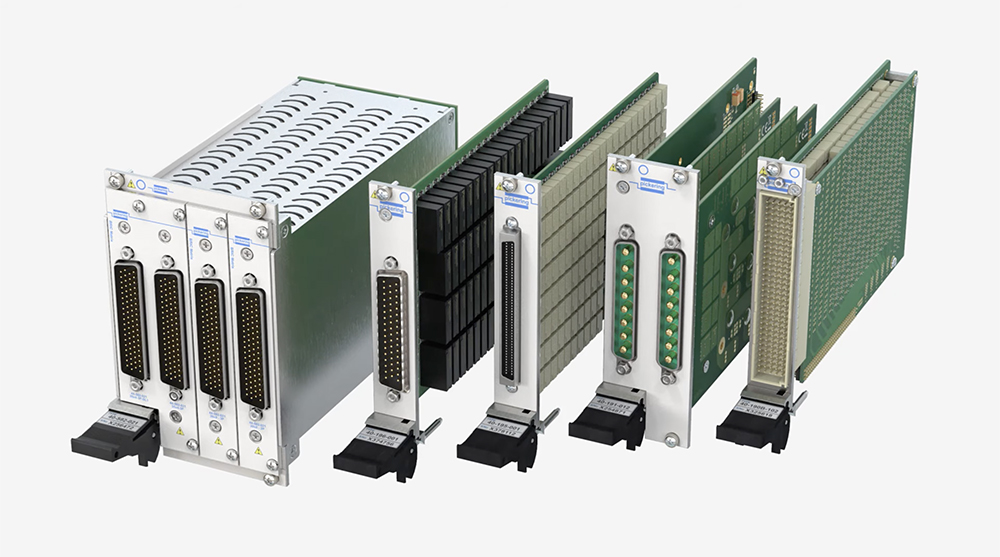

Pickering’s PXI switching and simulation merchandise used for the HIL system

The HILS system was designed for totally automated operation, performing full bodily perform assessments in a single day unattended. For a extra particular, granular check, the EV firm additionally specified benchtop programs based mostly on comparable merchandise housed in Pickering’s 2-slot LXI/USB chassis (mannequin 60-104-001).  Whereas with the entire HILS system, the emphasis was on the efficiency, scalability, and adaptability of the Pickering options, small measurement was the important thing benefit for the benchtop tester.

1660580672 319 Charged EVs Designing a hardware in the loop simulation test system for
Benchtop system for extra particular, granular check


Along with these advantages, the EV check system improvement staff commented that Pickering’s lengthy historical past of delivering high-quality switching and simulation merchandise which can be simple to make use of and program had been vital causes for selecting Pickering. “With all of the adjustments we had been coping with, it was good to have one thing to depend on – that I don’t have to fret about,” stated Pickering’s buyer.
