Second solely to energy output, effectivity is among the most fudgeable scores that applies to traction motors for EVs (proper up there with capability and cycle life claims for Li-ion batteries…). For widespread 3-phase industrial AC motors, a lot of the specmanship shenanigans have been handled by NEMA (Nationwide Electrical Producers Affiliation), a voluntary trade group that outlines requirements for all the things from the dimensions and design of motors to electrical enclosures and even energy plugs and receptacles (for instance, the usual 120 VAC outlet discovered in every single place within the US is designated NEMA 5-15R). For industrial motors meant to be provided instantly from the mains, NEMA at all times specifies a motor’s effectivity on the nameplate rated voltage and frequency. When a motor is provided by a variable frequency drive, nevertheless, figuring out its effectivity turns into a much more tough process. It is because, of the 4 related parameters that should be precisely measured to find out effectivity (which, in spite of everything, is the ratio of mechanical output energy to electrical enter energy), solely velocity and present are probably simple to measure, whereas getting correct voltage and torque values tends to be way more troublesome.
When a motor is provided by a variable frequency drive, figuring out its effectivity turns into a much more tough process.
The same old answer for measuring a motor’s velocity and torque concurrently is a dynamometer, or dyno, and there are two fundamental varieties (and lots of subtypes) that are used for evaluating EVs: the chassis dyno, which measures energy with the motor nonetheless within the car; and the bench dyno which, because the title implies, requires eradicating the motor for testing. The chassis dyno is much simpler (and certain the one actual alternative) for the EV proprietor to make use of (although beware—the quite common inertial dyno is little higher than hand-waving in relation to accuracy), whereas a bench dyno is extra prone to be employed by the OEM throughout motor (and inverter) growth, after which for high quality management spot checks in manufacturing, because it offers a purer evaluation of the motor, with none losses from the remainder of the drivetrain and the tires. Both kind of dyno can use a 3-phase motor and an inverter working in regeneration mode because the load, and by doing so can both recycle a lot of the traction motor’s output again into the battery pack, and even to the mains (although that requires one other inverter working at a set frequency and synchronized to the mains, or grid-tied).
From {the electrical} enter energy aspect of issues, it’s comparatively simple to get an correct present measurement on every section, even though the utilized voltage is a collection of duty-cycle modulated pulses. It is because the section windings have appreciable inductance, so the voltage pulses will arrange a (comparatively) slowly altering present in them. The noticed voltage waveforms will stay as distinct pulses, nevertheless, which makes getting an correct RMS (root imply sq.) worth for them a little bit of a problem. If the inverter switching frequency isn’t too excessive, it could be attainable to make use of a “true-RMS” digital multimeter to get an correct voltage magnitude, however this received’t present the relative section angle between stated voltage and the corresponding section present, and each are wanted to precisely calculate actual (versus obvious) enter energy to any motor moreover a PM synchronous kind working within the regular (i.e. not field-weakened) mode. It is because the PMSM can current as a unity energy issue load—successfully as a pure resistance—whereas all different sorts of AC motor seem significantly inductive in nature (so present lags voltage). In truth, for the AC induction motor, the section angle between the present and voltage waveforms kind of varies inversely with p.c load. At no load, the present on every section of an ACIM might be displaced from its voltage by practically 90 levels, giving a vector sum of close to zero actual energy. This so-called “reactive” present sloshes forwards and backwards between the inverter DC hyperlink capacitor and the inductance of the section windings, incurring some losses within the switches, windings, and so on, however in any other case little or no precise energy (and due to this fact vitality) might be demanded from the battery. The perfect—and actually solely sensible—answer is to make use of a contemporary 4-channel oscilloscope with waveform math capabilities meant for energy issue and harmonic evaluation. Oh, and don’t neglect that the scope wants remoted channels, or the voltage probes should be the differential kind to keep away from blowing up the scope.
It must be apparent that resistive losses are a quadratic (sq.) perform of present, however it’s not fairly so apparent that windage losses are a cubic perform of RPM.
The effectivity of an unloaded spinning motor, or one with its shaft stalled, might be 0% in each instances as a result of no helpful work is being accomplished, however stepping away from these excessive edge instances, what about when the motor is 1% loaded whereas spinning at excessive RPM, or when its shaft is popping at 1 RPM whereas delivering most torque (similar to originally of accelerating from a cease, for instance)? As could be anticipated, effectivity is fairly low in each instances, although for very completely different causes. For the hardly loaded motor, the main loss contributors might be windage, or the aerodynamic losses incurred by the rotor having to push air out of the way in which because it spins, adopted by varied AC electrical losses within the stator windings, rotor, and “again iron” (the a part of the motor housing that completes the magnetic circuit linking the rotor and stator collectively), and eventually, by friction and drag losses within the bearings (which hopefully are available a really distant third place to the primary two). For the nearly-stalled motor, nearly the entire losses are from I2R, because of the resistance of the stator windings for all motor varieties, in addition to that of the shorting bars within the rotor for the ACIM, particularly. It must be apparent that resistive losses are a quadratic (sq.) perform of present, however it’s not fairly so apparent that windage losses are a cubic perform of RPM. For instance, a motor that incurs 10 W of windage loss at, say, 3,000 RPM will rack up 270 W of loss at 9,000 RPM. One other potential draw back to working a PMSM, particularly, at excessive sufficient speeds to require field-weakening is that this truly prices vitality, as some portion of the stator present then goes in the direction of opposing the sphere produced by the rotor magnets, moderately than working with it to provide torque. The alternative applies to the ACIM—weakening the sphere truly saves some vitality as a result of the sphere must be induced into the rotor by the stator within the first place (so simply induce much less, et voila, the sphere is weakened). Additionally, making use of an excessive amount of field-weakening to a PMSM can completely demagnetize its erstwhile everlasting magnets.
As for I2R losses incurred throughout acceleration from a cease, a standard query is whether or not it’s higher to spend much less time at the next torque (i.e. present) to rise up to hurry, or a proportionally longer time at a decrease torque. Essentially the most acceptable equation for vitality on this case is I2R * t (which is simply one other expression of the product of watts and time) however one lacking issue is how torque varies with present, and that relies upon drastically on the kind of motor and the precise management technique utilized by the inverter. Usually talking, although, torque in most motors is a linear perform of present as much as a sure present degree (saturation), at which level it both peaks and ranges off, or truly begins falling once more (e.g. breakdown torque in an ACIM). Essentially the most notable exception to this rule is the collection discipline DC motor, by which torque is a quadratic perform of present up till saturation of the sphere construction, at which level it reverts to a linear perform (till the motor self-destructs from overcurrent, anyway). At any charge, since losses from present are quadratic whereas torque is linear, this implies losses are twice as excessive if accelerating twice as shortly however for half the time to achieve a given velocity. (That stated, don’t be that one who takes over a minute to hit 60 mph when merging onto the freeway due to this.)

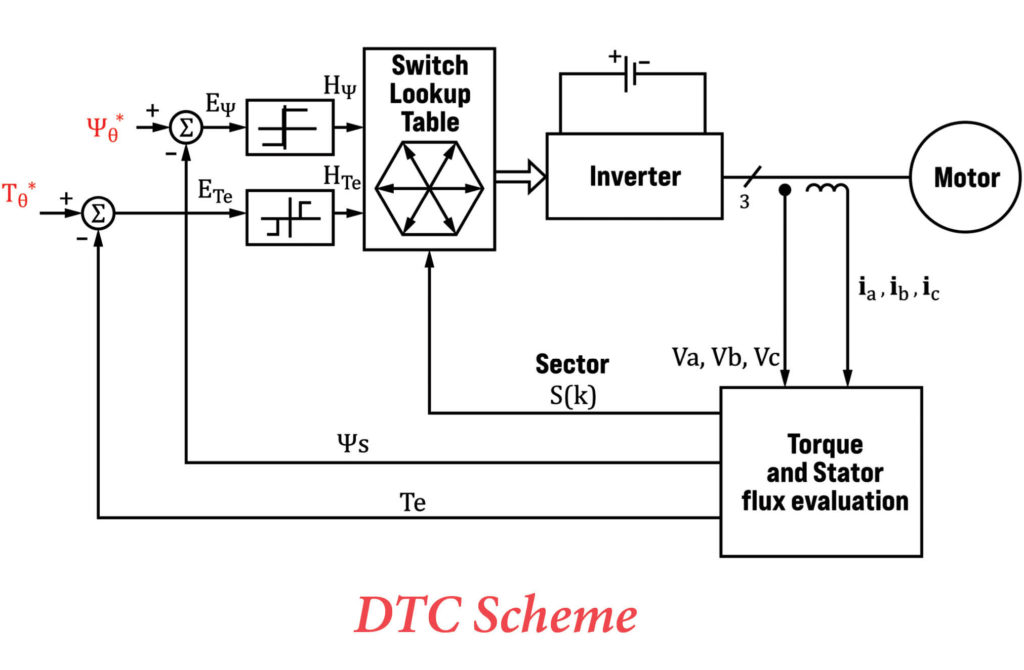

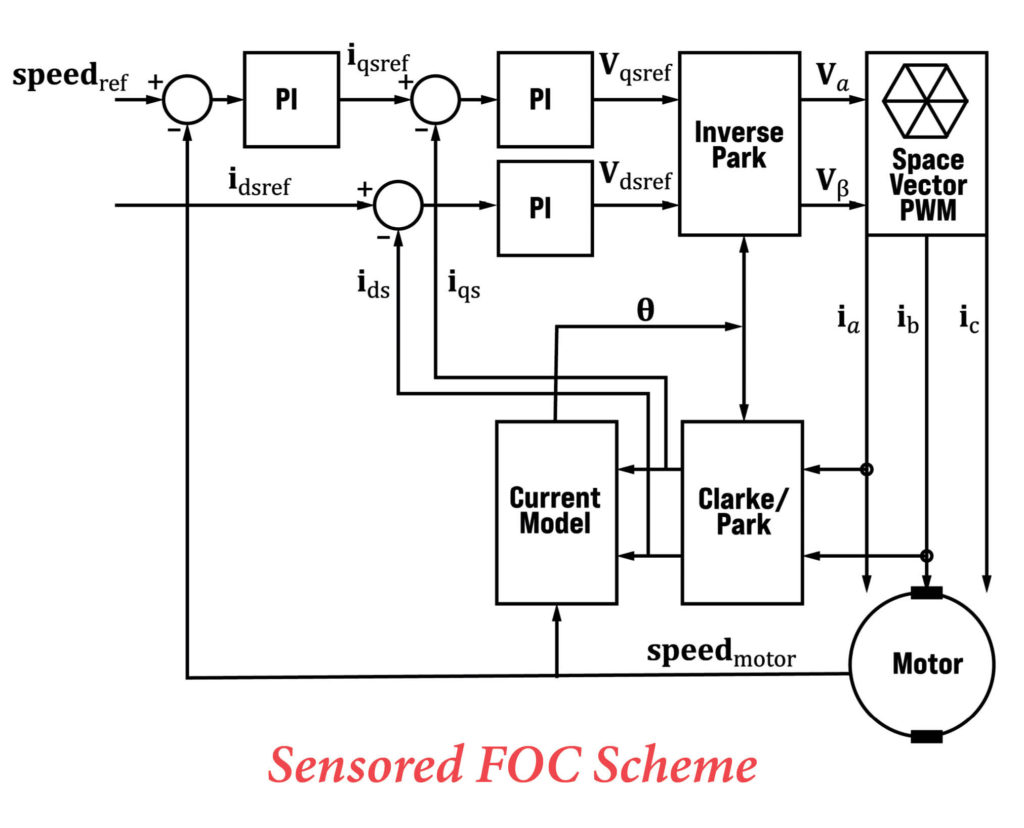

Lastly, there are minor variations in effectivity because of the precise management technique of the inverter. The overwhelming majority of 3-phase inverters for traction purposes will use what’s generically referred to as vector or field-oriented management, however there may be one other method referred to as direct torque management, which was initially developed as a result of it was far much less computationally-intensive. Again when probably the most highly effective microcontrollers have been 8 bits large (and needed to be programmed in meeting language, moderately than extra human-friendly languages like C or C++), the modest computing calls for of DTC have been very compelling, however simply as Microsoft Home windows has gotten ever extra bloated as CPU velocity and reminiscence dimension have elevated, so too have inverter design engineers been spoiled by the large improve in computing energy obtainable in fashionable microcontrollers, DSPs (digital sign processors) and FPGAs (field-programmable gate arrays). In what nearly looks like a redux of the Betamax vs VHS warfare of yesteryear, FOC is much extra generally used even though for finest efficiency (learn: getting the utmost torque per ampere and widest attainable velocity vary) it requires a fearsome quantity of calculations per second and an often-impractical degree of data of the motor parameters (as a result of quite a lot of these parameters both have free tolerances to start with—just like the permeability {of electrical} metal—or change with temperature—like the majority resistivities of all metals).
Broadly talking, FOC is healthier at sustaining a continuing velocity and delivering clean torque, significantly at low RPM, whereas DTC has higher dynamic response and far much less must predict the motor parameters to function accurately.
There are an enormous variety of permutations of each DTC and FOC, however broadly talking, FOC is healthier at sustaining a continuing velocity and delivering clean (i.e. non-pulsating) torque, significantly at low RPM, whereas DTC has higher dynamic response and far much less must know and/or predict the motor parameters to function accurately, and due to this fact is way much less delicate to adjustments in such. As for variations in total effectivity (i.e. motor plus inverter), the sting theoretically goes to FOC, if solely as a result of it has a lot much less torque ripple, however in the actual world it’s most likely a toss-up, particularly when paired with a PMSM. With an ACIM, nevertheless, traditional FOC makes an attempt to take care of full discipline flux always no matter how a lot torque is being demanded to provide the very best transient response (from, for instance, all of a sudden hammering on the accelerator pedal), whereas DTC with House Vector Modulation (aka SVM, which most—if not all—fashionable implementations use) simply picks the suitable (or closest, anyway) voltage vector from a lookup desk based mostly on an inner motor mannequin to ship no matter discipline flux and torque is required for the load at that second. One factor to be very skeptical of, although, are claims of delivering (or sustaining) good efficiency with out rotor velocity (ACIM) or place (PMSM) suggestions, aka “sensorless” operation. Usually talking, the utmost achievable torque per amp—and due to this fact the last word effectivity, actually—is diminished when the inverter is disadvantaged of rotor velocity/place info, and this must be thought of a limp-home mode, moderately than a standard mode of operation.
