Check the performance and security {of electrical} automobile charging stations, simply and reliably

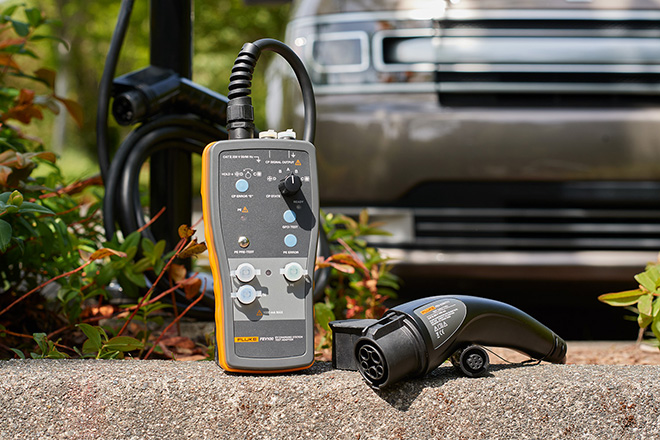

Check the security and efficiency of sort 1, stage 1 or stage 2 electrical automobile ac charging stations (EVSEs) with the Fluke FEV100. This check adapter simulates the presence of {an electrical} automobile, permitting you to conduct checks together with applicable check devices akin to a digital multimeter or oscilloscope. Use the FEV100 to confirm an EVSE is working correctly after set up and through periodic upkeep, or troubleshoot an EVSE if it’s not delivering the suitable cost.
Security
EVSE charging cables could grow to be broken over the course of use, rising electrical shock dangers to customers. Keep protected against and examine threat of electrical shock with the GFCI journey check. This operate verifies the breaker of the EVSE is linked by detecting floor faults. Moreover, the PE grounding safety pre-test verifies that there isn’t any presence of harmful voltage on the floor terminal.
Simplicity and comfort
Carry out a wide range of checks together with floor fault checks, insulation of wires, measuring voltage and obligation cycle to see max present out there for charging all with one adapter that safely integrates with the Fluke portfolio of check and measurement instruments. There isn’t a have to convey an electrical automobile onsite for EVSE troubleshooting: the adapter acts as an electrical automobile when linked to an EVSE for straightforward efficiency and upkeep testing.

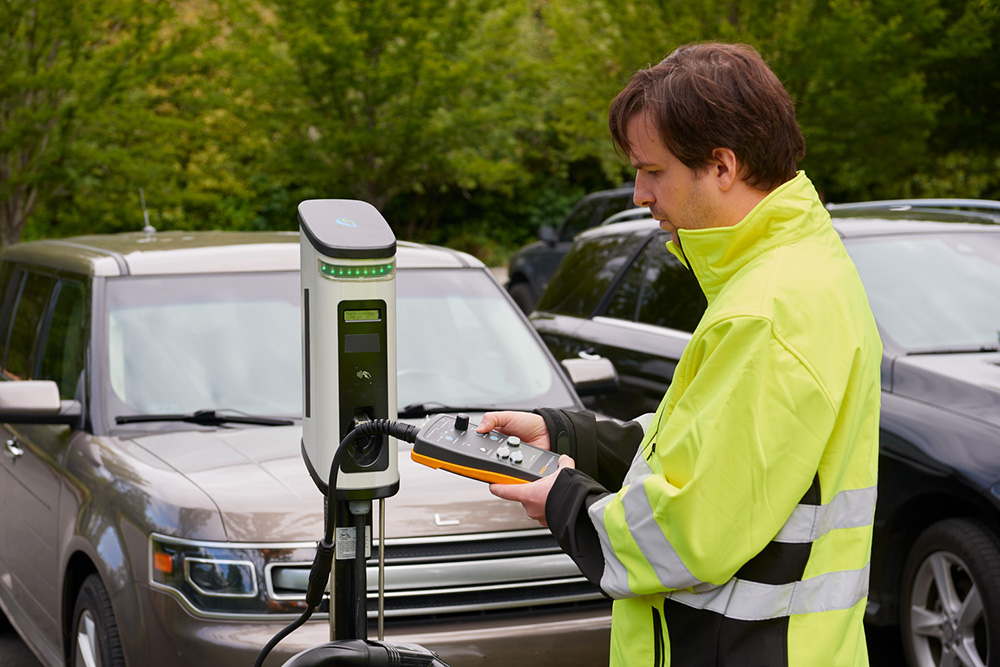

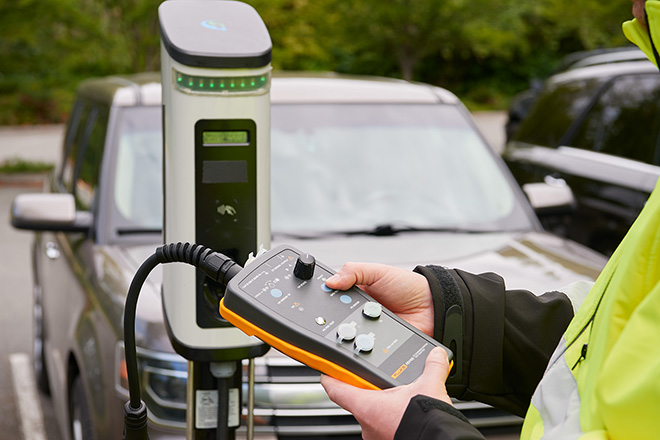

The way to check a charging station
As soon as an EVSE acknowledges it’s linked to a “automotive” and is prepared for charging, the adapter checks if the EVSE is performing the way in which it needs to be.
- Carry out the security grounding safety pretest to confirm that no harmful voltage is current within the grounding circuit. If the indicator lights up, it’s doable that {the electrical} wiring has been arrange improperly or there’s a grounding malfunction. On this occasion cease additional testing instantly and examine for a doable wiring fault of the bottom conductor.
- Confirm station output voltage utilizing a further meter, such because the 87V digital multimeter.
- Confirm station most preset cost present utilizing CP terminals and a meter with an obligation cycle operate or an oscilloscope.
- Simulate the error states as described within the SAE J1772 normal: CP error “E”, GFCI journey check, and grounding error.
CP error “E” simulation
The usual SAE J1772 defines Error “E” as a state when charging station is: disconnected from automobile, disconnected from utility, there’s a lack of utility energy or management pilot is brief to regulate pilot reference (floor). This error simulation checks the station to make sure that if there is a matter with the CP of the automobile, the station and utility is not going to provide a cost to the automobile.
GFCI
Every EVSE is required to be geared up with GFCI safety. On many stations, the GFCI safety is totally computerized and doesn’t want a handbook reset after the GFCI circuit is tripped.
Floor Error (Floor Fault) simulation
The Floor Error button simulates an interruption of the bottom conductor. Because of this, the pending charging course of is aborted and new charging processes are prevented. Superior checks akin to insulation resistance, energy high quality, evaluation of the management pilot waveform and loop impedance will also be executed utilizing the adapter along side applicable check and measurement tools.
Verifying charging voltage with automobile simulation
The CP state rotary change selector simulates numerous automobile states when the check adapter is linked to the charging station. Car states are simulated with totally different resistances linked between CP and PE conductors.
