For exams drives of electrical automobiles, high-frequency currents and voltages should be measured within the high-voltage car electrical system. The set up choices for the required measurement tools may be very restricted as a consequence of confined set up areas. This instance reveals how currents and voltages can nonetheless be measured with excessive sampling charges, HV-safe and shielded from environmental influences.
Background
Parts within the electrical powertrain in addition to the entire HV electrical system of electrified automobiles are extensively examined in each simulations and on take a look at benches. However, present, voltage and energy should even be measured in highway exams to validate the event outcomes underneath actual situations. That is the one approach to receive correct outcomes for the numerous essential optimization steps.

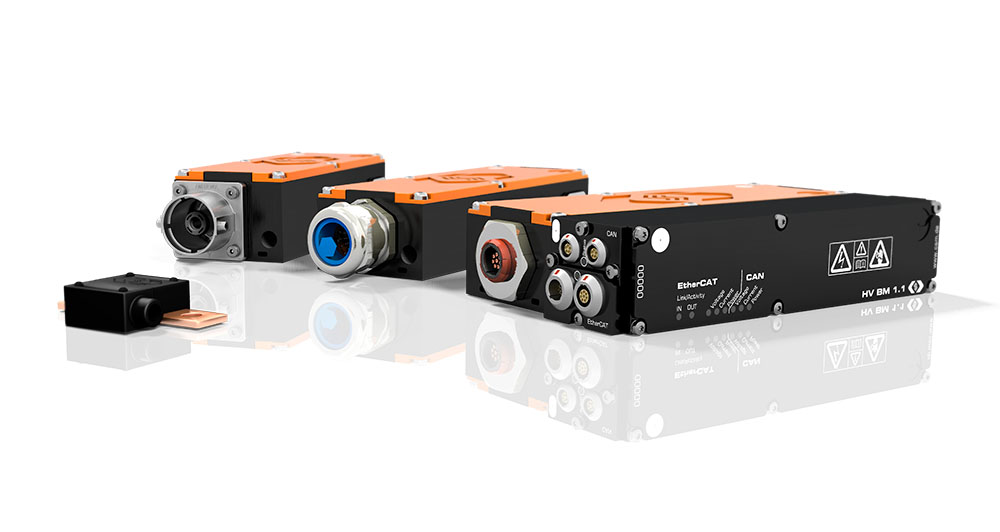

For the measurement of present, voltage and energy within the HV electrical system on take a look at benches and within the car, CSM’s HV Breakout Modules (https://s.csm.de/charged-bm) are a confirmed resolution: They signify probably the most compact and least interference-sensitive measurement expertise resolution for such measurement duties. The HV Breakout Modules have a sturdy housing for cell use in automobiles and measure as much as 2,000 A and a couple of,000 V with a excessive sampling price of as much as 2 MS/s. To fulfill EN61010:1 security necessities, the HV energy cables are related straight contained in the HV-safe housing
As a result of direct measurement from the inside conductors (additionally attainable for present on the braided shields), extraordinarily exact measurement outcomes are achieved.
Problem
The obtainable set up area within the car could also be too small for conventional instrumentation as a consequence of tightly put in elements and slim cable ducts for set up. In such circumstances, one other resolution should be discovered for measuring present, voltage and energy in highway testing.
At the start, the measurement expertise used should have the ability to be put in on the desired measurement factors. Typically slim cable ducts or surrounding elements restrict the obtainable set up area. For that reason, the measurement expertise used should then be designed to be much more compact, and have the ability to be used wherever on the car.
However, very exact measurement outcomes should be achieved, which is why the measurements should be taken straight within the inside conductor in any other case the outcomes shall be falsified by induced defend currents and interference. As a way to stop missed (aliased) information, measurements should be made at a sampling price of a minimum of 1 MHz.
The measurement expertise should have strong housings with the intention to guarantee high-voltage security for customers and programs, on the one hand and to be shielded from harsh environmental situations on the opposite.
The CSM Measurement Answer
As an evolution of the beforehand talked about HV BM product line, the brand new HV BM Break up Modules (https://s.csm.de/charged-split) are used for measuring present, voltage and energy in very confined set up areas. Excessive-voltage Breakout Modules of the Break up household (HV BM Break up Modules) use the identical measuring precept because the CSM HV Breakout Modules for measurements within the car electrical system. Nonetheless, the three primary capabilities are carried out in their very own small HV-safe enclosures, thus being “break up” from one another. These 3 capabilities and break up modules are
- HV SBM_I (HV Break up Breakout Module for present): Present measurement with temperature compensated shunt module
- HV SBM_U (HV Break up Breakout Module for voltage): direct measurement of Voltage
- HV SAM (HV Break up Acquisition Module): Acquires the measurement information of the two SBM’s and places that information onto the measurement community for additional DAQ by a pc or logger.
By separating the three primary HV BM capabilities, the area required for set up in HV energy cables or in busbars is vastly diminished. The HV SBMs are inserted straight into the HV cables through cable glands and ring terminals or PL300/PL500 connectors. The cable defend is routed individually, as with the HV Breakout Modules.

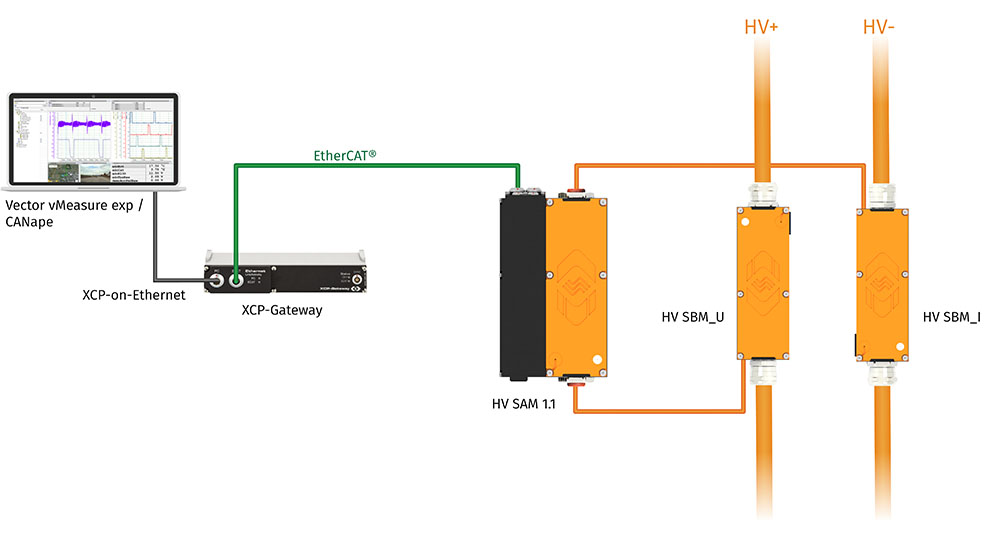

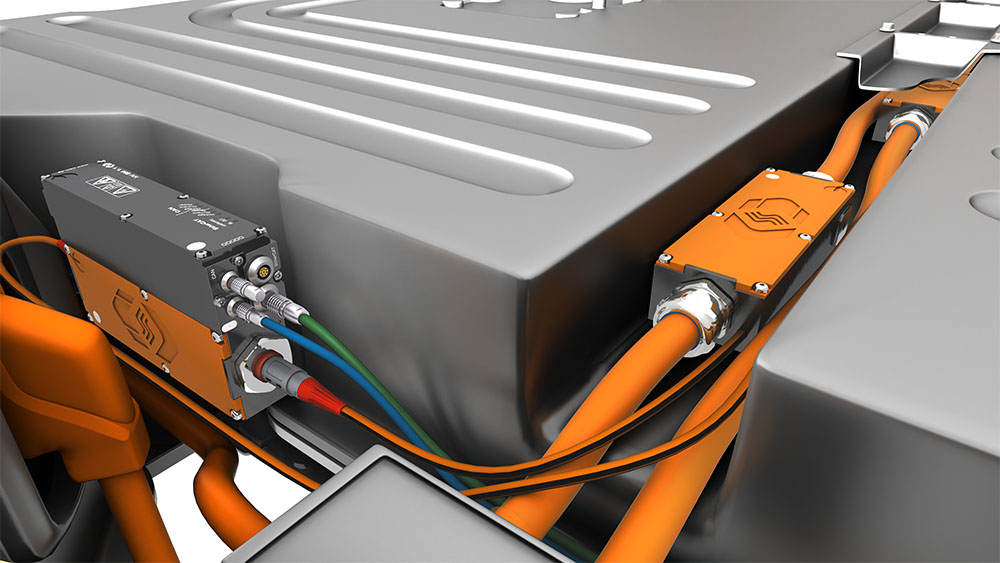

The present and voltage Break up Breakout Modules are related to the Break up Acquisition Module through shielded high-voltage sensor cables with specialised connectors making the system protected. This enables the slim HV SBMs for use individually in confined areas and positioned as much as 2m away from the HV SAM
The HV SAM performs sampling, AD conversion, filtering, on-line calculations, information acquisition, protocol conversion, and galvanic isolation. As with the usual HV Breakout Modules, information output is through EtherCAT® or CAN with as much as 1 MHz information price.
The measurement information output through EtherCAT® is transformed to XCP-on-Ethernet through an XCP-Gateway and forwarded to the measuring pc. Additional measurement modules for the acquisition of extra measured variables (comparable to temperature, pressures, vibration, noise, pressure) may be simply built-in through the XCP-Gateway.
Advantages
The HV BM Break up Modules allow exact present, voltage, and energy measurements in very confined areas. They use the confirmed expertise of the HV Breakout Modules for correct measurement outcomes: Present measurement with shunt modules straight within the HV cables minimizes the affect of exterior fields, comparable to people who happen in magnetic discipline or Corridor effect-based options. Pseudo-signals, hysteresis results, system-related noise, attribute shift or offset errors are virtually non-existent with CSM shunt expertise.
The sensor modules of the HV BM Break up Modules are hardly bigger than the HV strains themselves and may be put in in appropriate areas. Measurements on intently put in high-voltage auxiliary customers comparable to compressors, pumps, converters or braking resistors are thus made attainable.
The HV BM Break up modules are a part of the Vector CSM E-Mobility Measurement System. They increase the decentralized, scalable measurement system for high-voltage present and voltage measurement in confined car set up areas for E-Mobility on-line evaluation with CANape and vMeasure exp.
