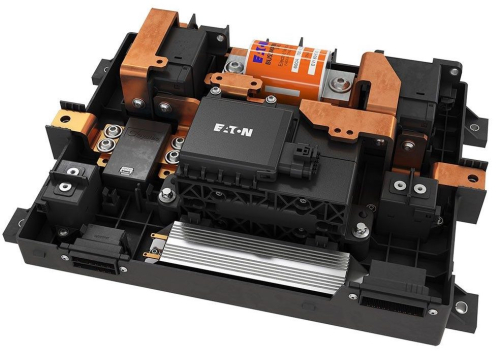

Energy administration firm Eaton’s eMobility enterprise has launched a battery disconnect unit (BDU) that may be mixed with upgraded Breaktor circuit safety expertise to supply circuit safety in electrified autos (EVs) whereas decreasing total complexity and value.
When paired with the Breaktor circuit safety expertise, which mixes present switching and resettable bidirectional short-circuit safety with quick actuation, Eaton’s BDU eliminates the necessity for as much as 15 extra system parts. Conventional techniques require a mixture of pyro and thermal fuses and contactors.
As producers proceed to extend the ability ranges in EVs, it’s more and more necessary to have succesful and reliable safety options. Our BDU mixed with our Breaktor circuit safety expertise supplies every little thing wanted, in a compact and environment friendly bundle, to guard the car and occupants.
—Kevin Calzada, international product technique supervisor, Eaton’s eMobility enterprise
The BDU’s main operate is to function an on/off change to the battery relying on the mode the EV is working in, comparable to charging or driving. Present mannequin EVs depend on one in every of three conventional BDU configurations: fuse and contactor; pyro fuse and contactor; or fuse, pyro fuse and contactor, all used collectively in a single BDU.
Whereas all present switching and safety capabilities, they every have disadvantages, together with total system complexity, serviceability, coordination difficulties and susceptibility to fatigue underneath excessive present ranges.
Including Breaktor circuit safety expertise to Eaton’s BDU supplies additional performance and advantages, together with lively and passive actuation in a single gadget; the aptitude to transition to an off-state underneath a variety of fault situations; improved purposeful security; the power to be reset after a high-energy fault; and the power to switch as much as 4 high-voltage electrical parts, which reduces complexity and system-level price.
Our Breaktor circuit safety expertise’s self-triggering design, diagnostic electronics and mirror contact assist obtain BDU purposeful security targets. With its built-in coil driver, economizer, and the sensing/triggering circuit, Breaktor circuit safety expertise additionally reduces battery management-system price and complexity.
—Kevin Calzada
Eaton’s Breaktor circuit safety expertise additionally allows as much as 350 kW DC quick charging when used to guard and change the DC fast-charge circuit, permitting EVs to cost in quarter-hour or much less. This functionality is made attainable by current upgrades to the Breaktor circuit safety expertise’s thermal administration and supplies to spice up its energy capability. Breaktor circuit safety expertise is now capable of carry 500 amps constantly and as much as 750 amps of steady present when an lively or passive cooling system is leveraged.
