Lighter automobiles can journey farther on much less vitality, therefore driving demand for lighter automotive parts. Excessive-performance aluminum alloys, similar to alloy 7075, are among the many lightest and strongest choices, however they require energy-intensive manufacturing that raises prices and subsequently limits their use.
Now, researchers from the Pacific Northwest Nationwide Laboratory (PNNL) have proven that their Shear Assisted Processing and Extrusion (ShAPE) know-how (earlier publish) can get rid of warmth therapy steps within the manufacturing course of, leading to vital vitality financial savings and diminished emissions. An open-access paper on the examine is printed within the journal Supplies & Design.
Typical metallic manufacturing makes use of warmth to soften particular person metals and alloying parts collectively—similar to aluminum, copper, or magnesium—to create alloys which can be lighter, stronger, or simpler to type. If these parts aren’t well-mixed, cracks and fractures can type throughout processing that compromise the properties of the ultimate product. In metals manufacturing, warmth is used to make sure that particular person metallic parts in an alloy are well-mixed throughout a step known as homogenization.
Throughout homogenization, massive metallic castings known as billets are heated to almost 500 levels Celsius—about 900 levels Fahrenheit—for as much as 24 hours. This warmth therapy step dissolves alloy aggregates within the billet to make sure that all metallic parts are evenly distributed or homogenized. This improves the efficiency of the ultimate product. After homogenization, the metallic rods bear additional heating and forming in a step known as extrusion.
Homogenization is the largest energy-consuming step in your entire metals extrusion course of.
—Scott Whalen, PNNL chief supplies scientist and co-developer of ShAPE
PNNL’s ShAPE course of makes use of a machine to spin billets or chunks of bulk metallic alloy, creating simply sufficient warmth by friction to melt the fabric so it may be simply extruded by a die to type tubes, rods, and channels. The simultaneous linear and rotational forces use solely 10% of the drive sometimes wanted to push the fabric by the die in typical processes.
PNNL researchers have now discovered that the ShAPE machine eliminates the necessity for separate homogenization and extrusion steps by combining heating and deformation—the change within the form of the metallic itself. Within the ShAPE machine, the metallic billet is concurrently pushed by a small opening in a die which rotates. Collectively, the rotational motion and deformation completely mixes the metallic parts as they’re being extruded. Basically, the ShAPE course of homogenizes the metallic billet in a couple of seconds, instantly earlier than it’s extruded. This eliminates the necessity for a day-long, pre-heating homogenization step and implies that no further vitality is used to warmth the billet throughout extrusion. Collectively, this leads to an vitality financial savings of as much as 50% utilizing ShAPE.
Extrusion of unhomogenized castings of the 7075 aluminum (Al) alloy has been completed utilizing shear assisted processing and extrusion (ShAPE). The simultaneous plastic deformation and warmth technology throughout ShAPE quickly fracture and dissolve interdendritic and intragranular secondary phases of Al-Zn-Mg-Cu, undertaking homogenization in seconds relatively than many hours in a furnace earlier than extrusion. ShAPE thereby eliminates the energy-intensive and time-consuming homogenization step required to arrange as-cast microstructures for typical extrusion.
Concurrently, in depth grain refinement happens as a consequence of gradient activation of dynamic recrystallization throughout ShAPE, which facilitates a threefold improve in extrusion pace in comparison with the traditional extrusion methodology. Evident enhancement of the mechanical properties of ShAPE + T6 samples is achieved, in comparison with the ASTM customary values for typical extrusion merchandise.
—Wang et al.

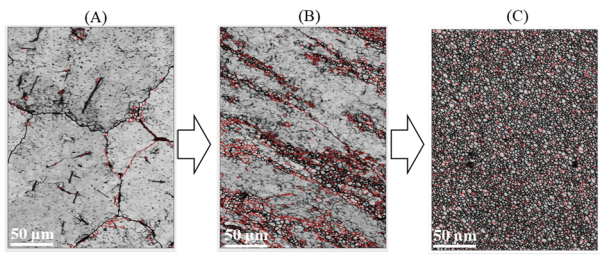

Pictures of aluminum alloy 7075 taken with a scanning electron microscope earlier than (A), throughout (B), and after (C) going by the ShAPE machine present how the microstructure of the alloy adjustments throughout extrusion. The shearing impact of the ShAPE machine breaks up particles, into a lot smaller items to create a extra uniform microstructure. (Picture by Joshua Silverstein | Pacific Northwest Nationwide Laboratory)
Not solely is ShAPE a extra vitality environment friendly and faster course of, however it additionally improves how effectively the person alloying parts are combined, resulting in a greater closing product. Efficiency testing confirmed that parts made from aluminum alloys processed with ShAPE exceeded present American Society for Testing and Supplies requirements for power and elongation.

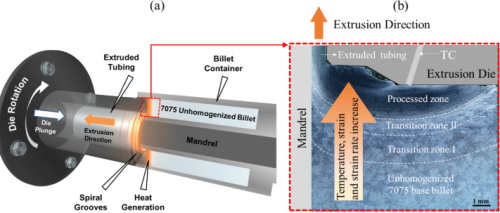

Schematics of (a) the ShAPE course of and (b) the corresponding materials response within the remnant billet after extrusion (longitudinal view). Wang et al.
We took a better look utilizing an electron microscope and noticed that ShAPE breaks aside the alloy aggregates and dissolves them into the aluminum matrix previous to extrusion, making it extra extrudable. This interprets to raised efficiency—our aluminum 7075 alloys are stronger and stretch farther earlier than breaking.
—Tianhao Wang, PNNL supplies scientist and lead creator
Probably the most high-performance aluminum alloys are time- and energy-intensive to fabricate, pricing them out of many markets, similar to functions in passenger automobiles. The ShAPE course of removes a significant hurdle within the manufacturing of high-performance aluminum alloys by considerably lowering vitality consumption and greenhouse gasoline emissions throughout manufacturing.
This analysis was supported by the Division of Vitality’s Superior Manufacturing Workplace and carried out utilizing a purpose-built ShAPE machine manufactured by BOND Applied sciences, Inc. The ShAPE course of, tooling, and methods can be found for licensing.
Assets
-
Tianhao Wang, Julian Escobar Atehortua, Miao Tune, Md Reza-E-Rabby, Brandon Scott Taysom, Josh Silverstein, Timothy Roosendaal, Darrell Herling, Scott Whalen (2022) “Extrusion of Unhomogenized Castings of 7075 Aluminum through ShAPE,” Supplies & Design, Quantity 213, doi: 10.1016/j.matdes.2021.110374
