Researchers on the US Division of Power’s (DOE) Princeton Plasma Physics Laboratory (PPPL) have discovered a strategy to construct high-temperature superconducting magnets made of fabric that conducts electrical energy with little or no resistance at temperatures hotter than earlier than. Such highly effective magnets would extra simply match throughout the tight house inside spherical tokamaks, that are formed extra like a cored apple than the doughnut-like form of typical tokamaks, and are being explored as a attainable design for future fusion energy crops.
A paper on the work is printed in IEEE Transactions on Utilized Superconductivity.
Vital progress has been made not too long ago within the US fusion group to develop a strategic plan to allow engineering design and building of a fusion pilot plant (FPP). Princeton Plasma Physics Laboratory (PPPL) is engaged on growing excessive present density HTS conductors for subsequent fusion experiments. Partnering with the US trade, we’re evaluating feasibility and affordability of Conductor on Spherical Core (CORC) developed by Superior Conductor Applied sciences (ACT) for the subsequent compact fusion tokamak facility.
Excessive present density achieved by a CORC cable primarily based on a four-layer mannequin coil not too long ago examined at Nationwide Excessive Magnetic Discipline Laboratory (NHMFL) motivated its consideration for low price, lowered dimension fusion magnet utility. That is of curiosity to PPPL due to its scalability to tokamak central solenoid (CS) coils when it comes to required flux swings for plasma startup operations.
Partnering with ACT, we designed and constructed a two-layer mannequin coil solenoid immediately wound with CORC to exhibit its applicability for compact solenoids reminiscent of that used within the nationwide spherical torus experiment (NSTX), NSTX-upgrade (NSTX-U) and the US sustained high-power density check facility (SHPD). The ∼160 mm diameter solenoid wound by a two-layer CORC is being examined in early 2022 underneath electromagnetic cyclic loading at NHMFL in a novel 160 mm bore, 14 T background discipline magnet facility.
—Zhai et al.

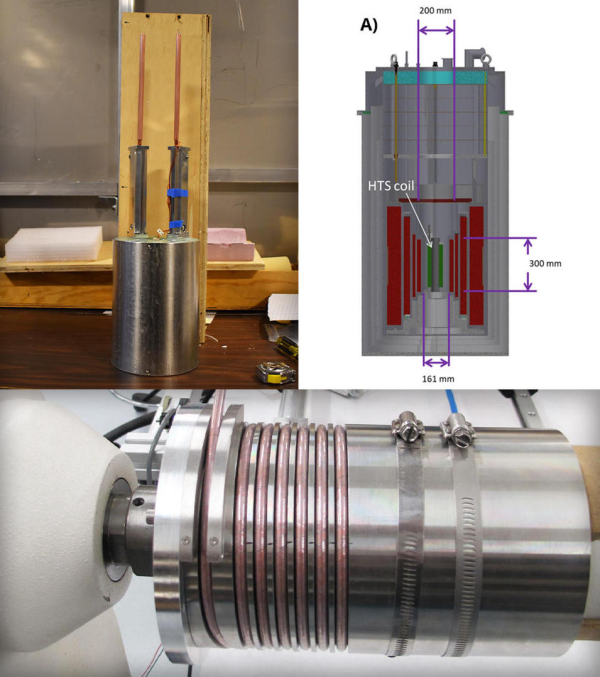

Photographs of a high-temperature superconducting magnet which may enhance the efficiency of spherical tokamak fusion units. (Collage by Kiran Sudarsanan)
For the reason that magnets may very well be positioned aside from different equipment within the spherical tokamak’s central cavity to corral the recent plasma that fuels fusion reactions, researchers may restore them with out having to take the rest aside.
To do that, you want a magnet with a stronger magnetic discipline and a smaller dimension than present magnets. The one manner you do that’s with superconducting wires, and that’s what we’ve finished.
—Yuhu Zhai, a principal engineer at PPPL and lead creator
Fusion, the facility that drives the solar and stars, combines gentle parts within the type of plasma—the recent, charged state of matter composed of free electrons and atomic nuclei—that generates large quantities of vitality. Scientists are looking for to copy fusion on Earth for a nearly inexhaustible provide of secure and clear energy to generate electrical energy.
Excessive-temperature superconducting magnets have a number of benefits over copper magnets. They are often turned on for longer durations than copper magnets can as a result of they don’t warmth up as shortly, making them higher suited to use in future fusion energy crops that should run for months at a time. Superconducting wires are additionally highly effective, in a position to transmit the identical quantity {of electrical} present as a copper wire many occasions wider whereas producing a stronger magnetic discipline.
The magnets may additionally assist scientists proceed to shrink the scale of tokamaks, enhancing efficiency and decreasing building price.
Tokamaks are delicate to the situations of their central areas, together with the scale of the central magnet, or solenoid, the shielding, and the vacuum vessel. Loads depends upon the middle. So in case you can shrink issues within the center, you may shrink the entire machine and cut back price whereas, in idea, enhancing efficiency.
—Jon Menard, PPPL’s deputy director for analysis and co-author
These new magnets make the most of a method refined by Zhai and researchers at Superior Conductor Applied sciences, the College of Colorado, Boulder, and the Nationwide Excessive Magnetic Discipline Laboratory, in Tallahassee, Florida. The approach signifies that the wires don’t want typical epoxy and glass fiber insulation to make sure the stream of electrical energy. Whereas simplifying building, the approach additionally lowers prices.
The prices to wind the coils are a lot decrease as a result of we don’t should undergo the costly and error-prone epoxy vacuum-impregnation course of. As an alternative, you’re immediately winding the conductor into the coil kind.
—Yuhu Zhai
Excessive-temperature superconducting magnets can assist spherical tokamak design as a result of the upper present density and smaller windings present more room for help construction that helps the machine face up to the excessive magnetic fields, enhancing working situations. Additionally, the smaller, extra highly effective magnets give the machine designer extra choices to design a spherical tokamak with geometry that would improve general tokamak efficiency. We’re not fairly there but however we’re nearer, and possibly shut sufficient.
—Thomas Brown, a PPPL engineer and co-author
This analysis was supported by the US Division of Power (Small Enterprise Innovation Analysis and Laboratory Directed Analysis and Growth).
Assets
-
Y. Zhai, T. Brown, J. E. Menard, D. C. van der Laan, J. D. Weiss and Z. Johnson, “HTS Cable Conductor for Compact Fusion Tokamak Solenoids,” in IEEE Transactions on Utilized Superconductivity, vol. 32, no. 6, pp. 1-5, Sept. 2022, Artwork no. 4203005, doi: 10.1109/TASC.2022.3167343.
