In 2010, researchers from the Beijing Institute of Know-how proposed a brand new combustion system for diesel engines: the Double Swirl Combustion System (DSCS) (Li et al. 2010). Throughout the DSCS, the Double Swirl (DS) chamber is likely one of the most noticeable components within the new system.
The configuration of DS chamber is made up of two dishes: the smaller dish is within the heart of the chamber which kinds the inside chamber, and the bigger one kinds the outer chamber. The cone face (Line o–3 within the diagram under) from the nozzle orifices to round ridge kinds a theoretical interface between the outer and inside chambers. A truncated cone is in the midst of the inside chamber.

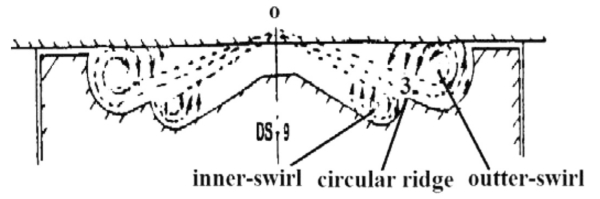

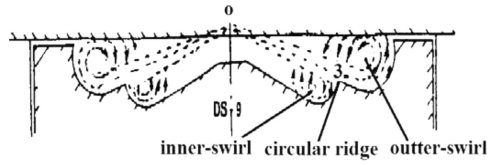

Double swirl combustion chamber. Li et al. (2010)
The workforce hypothesized that the gasoline spray collides with the round ridge, splits into two components, after which kinds double swirls, which makes the core of the one spray meet the air instantly.
Because of this, the gasoline is distributed extra evenly than that in an atypical kind of chamber, and the air within the chamber—particularly the air within the inside a part of chamber—could be absolutely utilized, and the fuel-air mixing could be improved. The DSCS in a diesel engine could make vital effectivity enhancements and emission reductions.
Now, researchers from the Beijing Institute of Know-how have investigated the consequences of DSCS combustion chamber diameter on efficiency beneath varied circumstances. They report their ends in a paper within the journal Gas.
DSCSs with diameters of 83, 91, and 98 mm (DSCS83, DSCS91, and DSCS98) have been designed and examined in a single-cylinder diesel engine on the most torque pace of 1800 rpm beneath varied hundreds and varied extra air coefficients (φ).
Experiments confirmed that DSCS83 outperformed the opposite DSCSs, with a 2.1–4.9% lower in brake particular gasoline consumption (BSFC), 12.4–23.1% discount in soot, and a shortening of the combustion interval by 1.6–3.6 °CA.
Simulation outcomes utilizing AVL-Hearth indicated that the wall-flow-guiding results and in-cylinder air movement together with air entrainment and reversed squish improved because the combustion chamber diameter decreased, which contributed to quick gasoline–air mixing within the outer chamber and the clearance, excessive indicated energy and low soot era.
Nonetheless, when the combustion chamber additional decreased from 83 to 76 mm, the unutilized air within the inside chamber and the clearance decreased the efficiency.
An evaluation of the uniformity index of the equivalence ratio in several components of DSCS discovered that DSCS83 had a 1.2–4.8% enchancment within the whole-chamber uniformity index at 60 °CA ATDC at 32% load situation.
These outcomes may very well be a vital reference within the optimization and utility of DSCSs in diesel engines.
—Kang et al.
Assets
-
Xiangrong Li, Zuoyu Solar, Wei Du & Rong Wei (2010) ”Analysis and Growth of Double Swirl Combustion System for a DI Diesel Engine,“ Combustion Science and Know-how, 182:8, 1029-1049, doi: 10.1080/00102200903544271
-
Yuning Kang, Xiangrong Li, Hongji Shen, Yanlin Chen, Dong Liu, Jiang Chang (2022) “Results of combustion chamber diameter on the efficiency and gasoline–air mixing of a double swirl combustion system in a diesel engine,” Gas,
Quantity 324, Half A doi: 10.1016/j.gasoline.2022.124392
