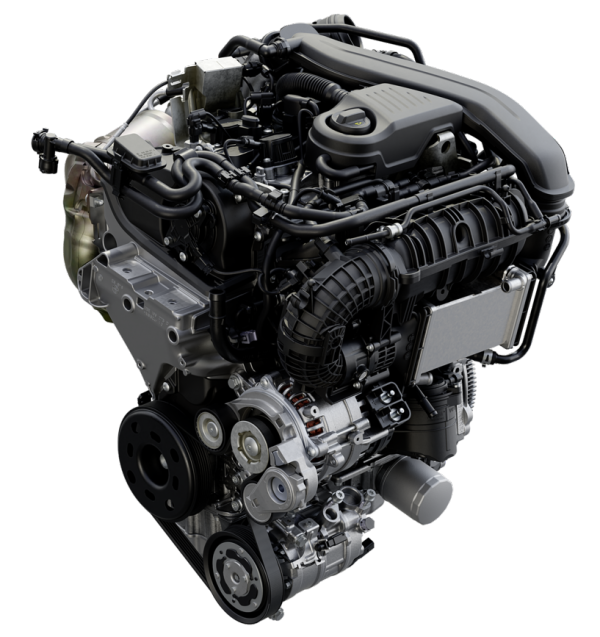

Volkswagen has enhanced its bestselling 1.5 TSI gasoline engine and is now introducing the newest technology, the TSI evo2, within the first fashions in Europe. The compact four-cylinder engine will initially be obtainable with an output of 110 kW (150 PS), and additional variants of the 1.5 TSI evo2 will observe. The T-Roc and T-Roc Cabriolet would be the first fashions to be delivered with the brand new engine. The TSI evo2 will even be launched successively in different fashions by the tip of the yr.
The 1.5 TSI is a key pillar of the Volkswagen engine vary as a result of it powers many fashions worldwide, from the T-Cross by means of to the Passat Variant. We’ve constantly enhanced the compact four-cylinder unit. It now presents important gas consumption advantages and a really dynamic response. The highlights of the newest model embrace Energetic Cylinder Administration ACTplus, an emission management module near the engine and the trendy TSI-Evo combustion course of.
—Thomas Ulbrich, Member of the Board of Administration of the Volkswagen model, chargeable for Technical Improvement
Within the newest evolutionary stage of the 1.5 TSI, the event engineers have moved the three-way catalytic converter and gasoline particulate filter near the engine in a single emission management module, thereby additional enhancing the effectivity of the emission management system. As an additional contribution to sustainability, this allows lowered use of valuable metals in manufacturing and on the similar time creates the idea for compliance with future emission requirements.
A key technological characteristic for decreasing gas consumption within the 1.5 l evo2 is the improved Energetic Cylinder Administration system, ACTplus—a joint improvement of the Wolfsburg and Salzgitter websites. The main focus of this new improvement was on enhancing activation and deactivation of the 2 cylinders with the intention to assure easy engine operating.
The combustion course of in two-cylinder operation was optimized, thus additionally permitting the working vary of the Energetic Cylinder Administration system to be prolonged.
With ACTplus, the second and third cylinders aren’t fired when the engine is working at low and medium masses and speeds. This switchover is hardly noticeable. The effectivity is elevated within the energetic cylinders, whereas the center cylinders merely observe with virtually no losses—they’re reactivated when the accelerator is pressed once more.
Alongside the variable-geometry turbocharger, the 1.5 TSI additionally incorporates a high-pressure injection system producing a strain of as much as 350 bar, plasma-coated cylinder partitions to scale back friction, and pistons with cast-in cooling ducts to permit combustion to be optimized and effectivity elevated.
The TSI-evo combustion course of already acquainted from the 1.5 l TSI evo1 can be used within the TSI evo2 technology. Alongside optimization of combustion chamber cooling, the decisive issue is as soon as extra the symbiosis of the Miller cycle (early closing of the inlet valves with excessive compression) and VTG turbocharging expertise (variable turbocharger geometry). A key issue for this subsequent step was above all the opportunity of growing and optimizing the related engine software program parts internally at Volkswagen.
The TSI evo2 engines are designed for operation with fuels containing components manufactured from renewable power sources. As well as, they’re appropriate for numerous hybridization ranges; a system energy of as much as 200 kW (272 PS) is feasible with a plug-in idea, for instance.
By 2030, Volkswagen plans to attain a gross sales share of 70% with its electrical fashions. Nevertheless, parallel to this, the necessary combustion engines are receiving additional enhancements. There are two causes for this, the corporate says:
-
First, this may permit compliance with future worldwide emission requirements similar to Euro 7.
-
Second, the combustion-engine fashions from Volkswagen are nonetheless standard in lots of markets—significantly the place electrical mobility is establishing itself solely slowly as a result of lack of charging infrastructure.
The compact TSI engines from the EA 211 household (EA = Entwicklungsauftrag, “improvement order”) have been world bestsellers since 2012. Annually, Volkswagen builds greater than 4 million of them at eleven areas on three continents. At their debut in 2012—in three capability variants—they already integrated a bunch of high-tech options. Strict light-weight building lowered their weight by as much as 21 kilograms in contrast with their predecessors.
