Yamaha Company and Sumitomo Company Energy & Mobility Co., Ltd., a Sumitomo Company Group firm, collectively demonstrated a brand new waste warmth restoration system primarily based on a thermoelectric generator (TEG), which generates electrical energy by way of exhaust fuel warmth.

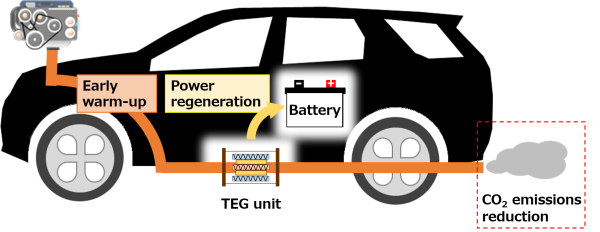

The TEG, which is put in in part of automobile exhaust system, can cut back CO2 emissions by lowering alternator load by producing electrical energy from unutilized waste exhaust fuel and in addition by early warm-up of engine by heated coolant via the TEG unit at engine begin.
On this demonstration check TEG unit was put in in a check automobile, and the generated electrical energy from the TEG and CO2 emissions had been measured with the automobile on a chassis dynamometer. With the TEG, 1.9% of CO2 emissions (i.e. 3.9 g/km) was lowered all through the European WLTP driving cycle. The businesses estimate the potential good thing about the TEG to be as much as 3.1% CO2 discount (i.e. 6.4g/km) by way of additional optimization of the automobile set up of the TEG unit. (Extra on this beneath.)
The automotive business has undertaken varied growth efforts through the years to create thermoelectric expertise to scale back CO2 emissions. Nonetheless, as a result of inadequate efficiency and reliability of the TEG module, the expertise has but to be put into sensible use.

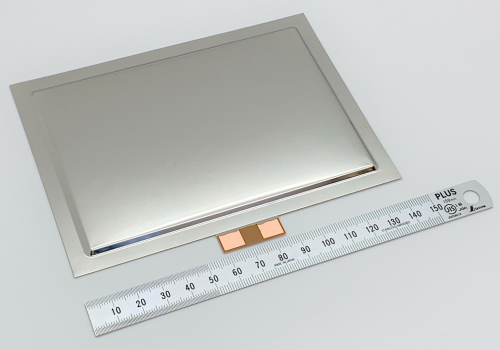

In March 2021, each firms commenced pattern gross sales of a TEG module, YGPX024 (image beneath), to analyze market wants.

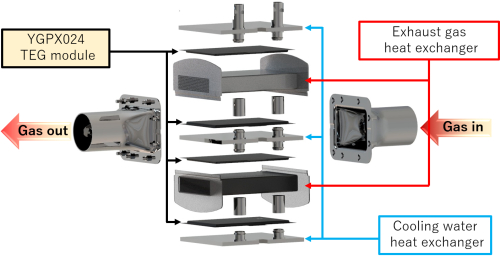

The demonstration check was outsourced to FEV Europe GmbH. The check TEG unit consisted of 4 YGPX024 TEG modules, two warmth exchangers for exhaust fuel and three warmth exchangers for water cooling circuit stacked collectively (above).
The TEG unit was put in within the exhaust pipe on the downstream of the catalyst. The primary engine cooling circuit was branched and prolonged to TEG unit. The prevailing water pump on the automobile was used to provide coolant to TEG unit. In parallel with the prevailing alternator the TEG unit was related on to an present 12V battery by way of a DC-DC convertor with most energy level monitoring perform, which enabled the unit to function at its optimum and effectively get hold of electrical energy. No exterior gear was used for this check, as a result of significance of evaluating the precise profit for the automobile.
The check used totally different check cycles, together with European WLTP driving cycle (incl. Part 4), US06 driving cycle and steady-state driving cycle. Through the exams on a chassis dynamometer, CO2 emissions and {the electrical} output generated from TEG unit had been measured to judge the impact of TEG unit.
There have been notable set up restrictions for the TEG unit, and the fuel temperature on the exhaust inlet pipe couldn’t attain the goal worth. A further check achieved the goal fuel temperature. Based mostly on the check outcome, evaluation confirmed a most CO2 emissions discount of three.1% (6.4 g/km) by optimizing the automobile set up of TEG unit.
