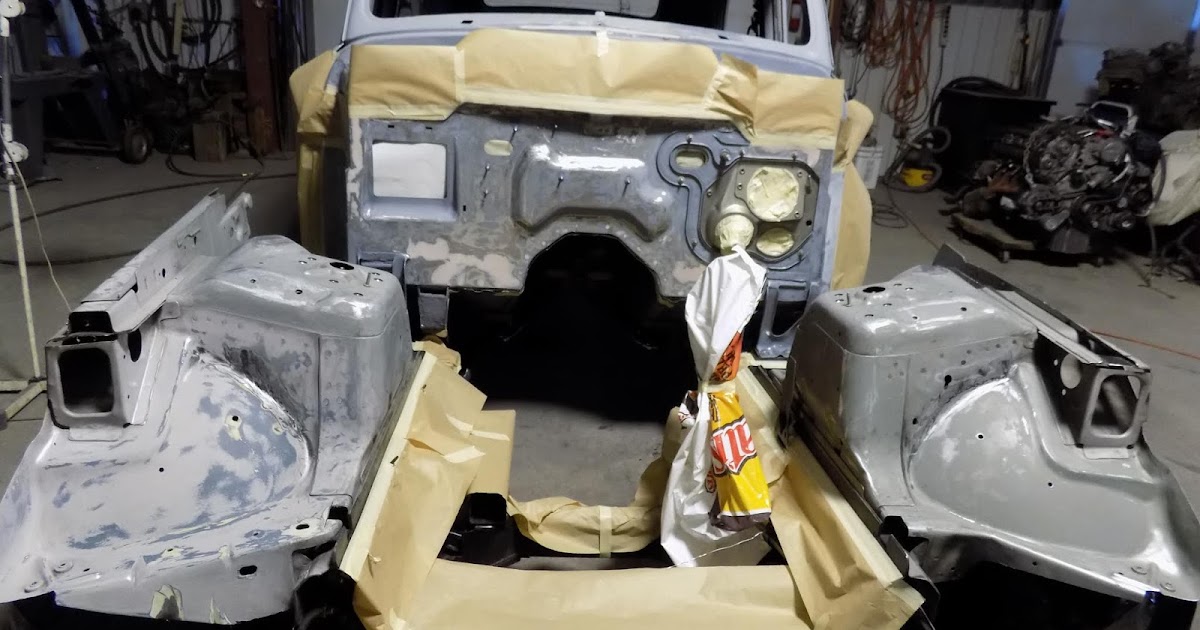

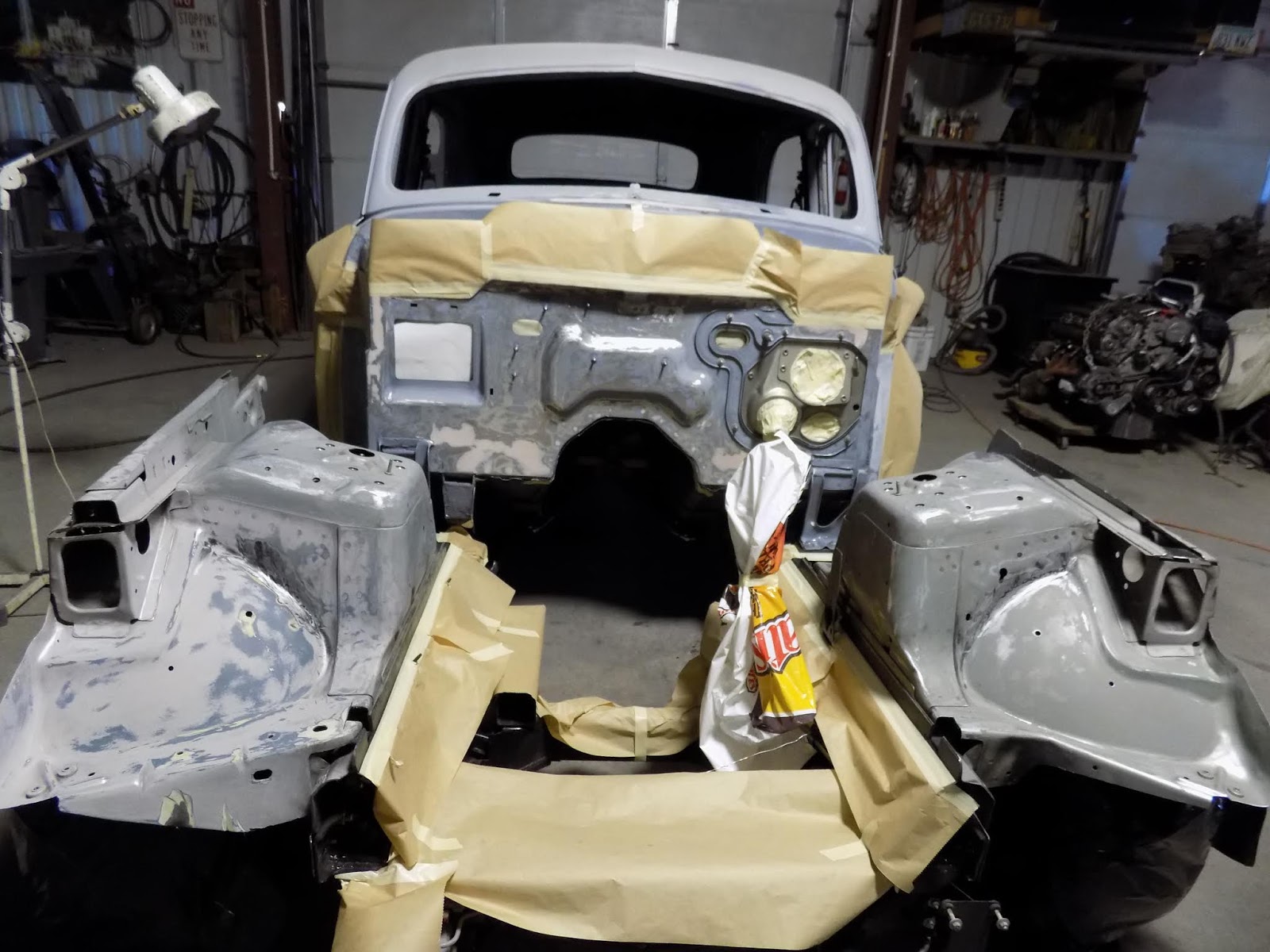

The decrease a part of the hearth wall and internal fenders nonetheless wanted to be painted and I taped of the engine compartment then painted it with POR 15 Gloss Black.

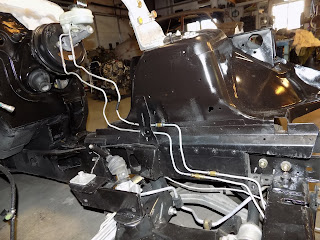

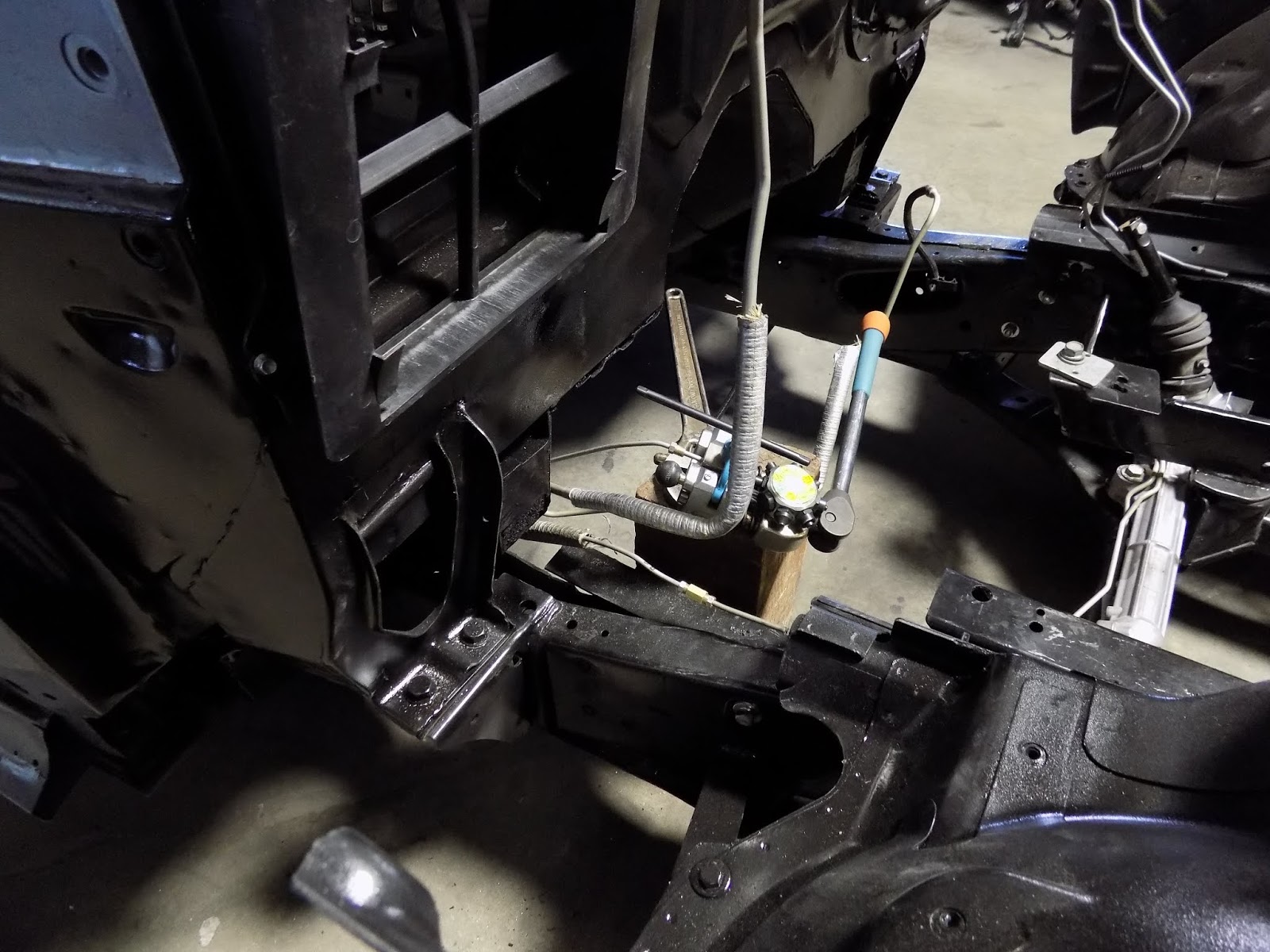

The anti-lock brake valve had been moved ahead to clear the radiator and engine and the brake strains needed to be prolonged to the brand new location by slicing the strains then make extension strains. The reduce strains needed to be flared in place that required some jury rigging as my double flare device is giant and designed for use in a vice outdoors the automobile. The 2 rear strains have been prolonged first.

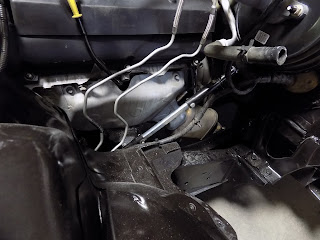

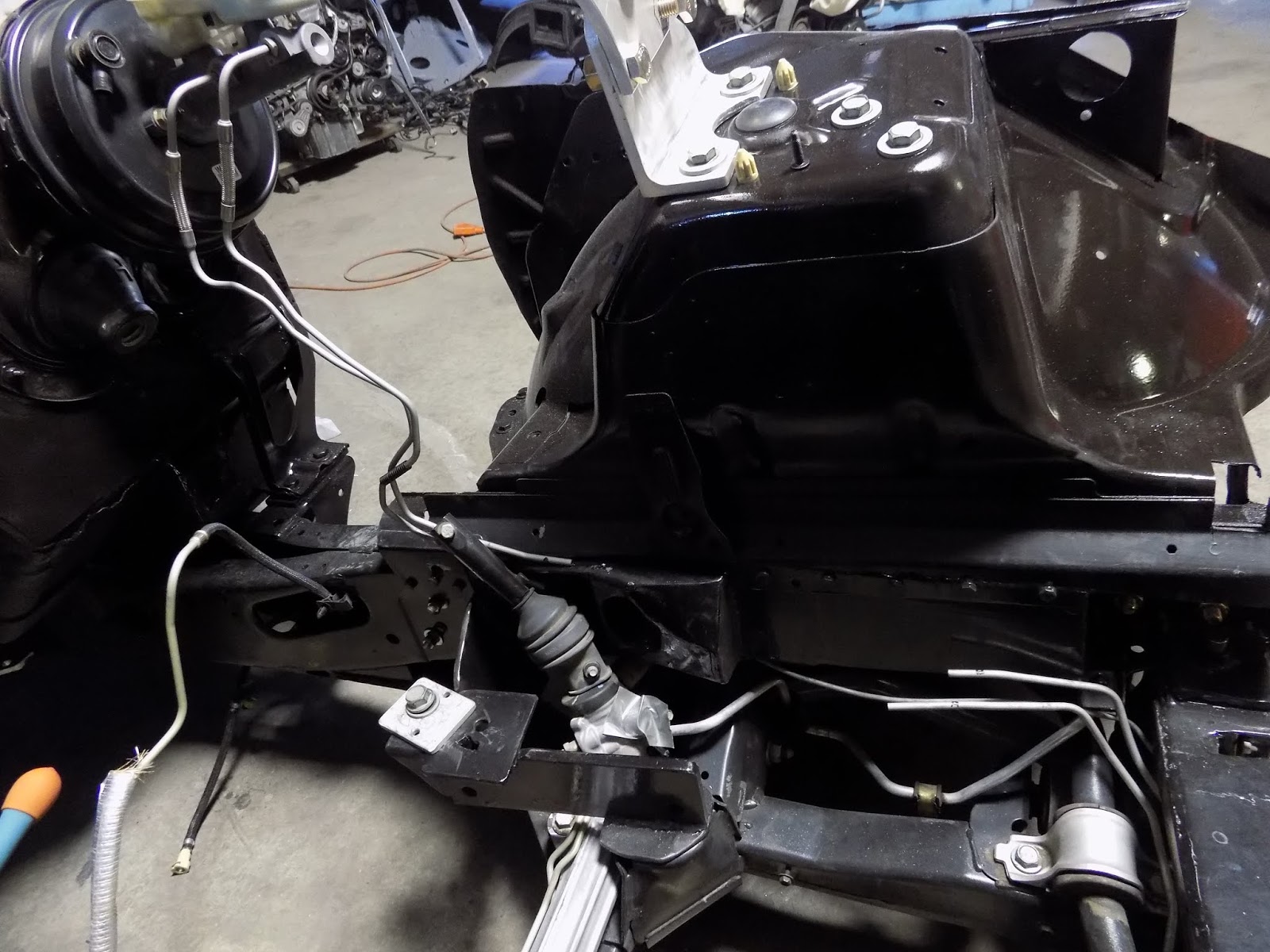

The grasp cylinder to anti-lock valve additionally needed to be prolonged, right here you possibly can see the hole between them after they have been reduce.

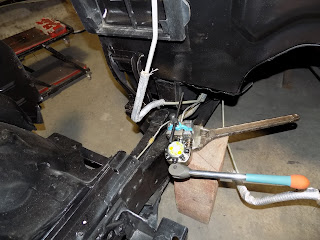

One other view of the double flare device on the rear strains with one already completed.
The grasp cylinder strains are actually linked utilizing 2-90 diploma bends & 4 couplings. All of the tubing and fittings have been discovered and purchasedt from Amazon.
Additionally discovered on Amazon was the 1″ DD extension shaft I wanted to tie the steering wheel shaft to the rack & pinion.

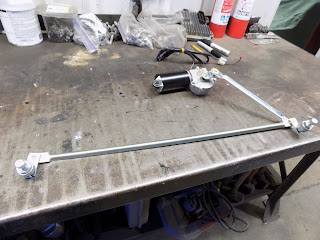

The 41 wiper components have been so badly rusted that I needed to discover one thing that would slot in the confined area between the A/C unit and backside of the cowl. After doing quite a lot of analysis on Google a lot of the after market wiper assembles have been $300.00 to $600.00 and undecided they’d match, then discovered a alternative meeting for a 78 – 86 Jeep with arms, linkage & motor for $110.00 on Amazon.

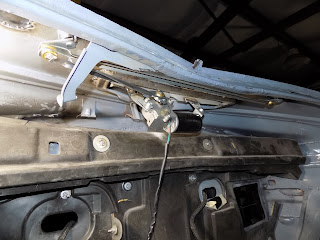

The Jeep wiper meeting match tight to the underneath aspect of the cowl with the motor the place the cowl vent use to be. I additionally purchased a wiper change from Amazon to wired in later.
With the wiper meeting in place the A/C – help unit might be match.

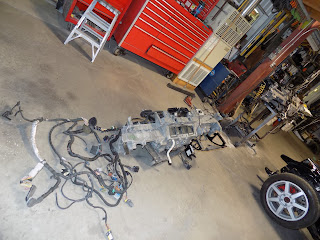

The 05 unit was cleaned up and the wiring harness repaired the place wanted.
The 05 unit needed to be reduce down in width about 12″ to suit into the 41. I had already reduce and match the 07 unit however it’s a little completely different from the 05 and I had made the choice to make use of all of the 05 components and harness.

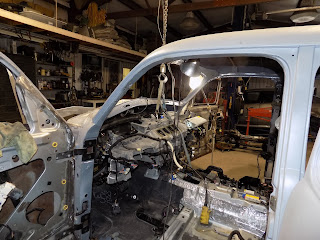

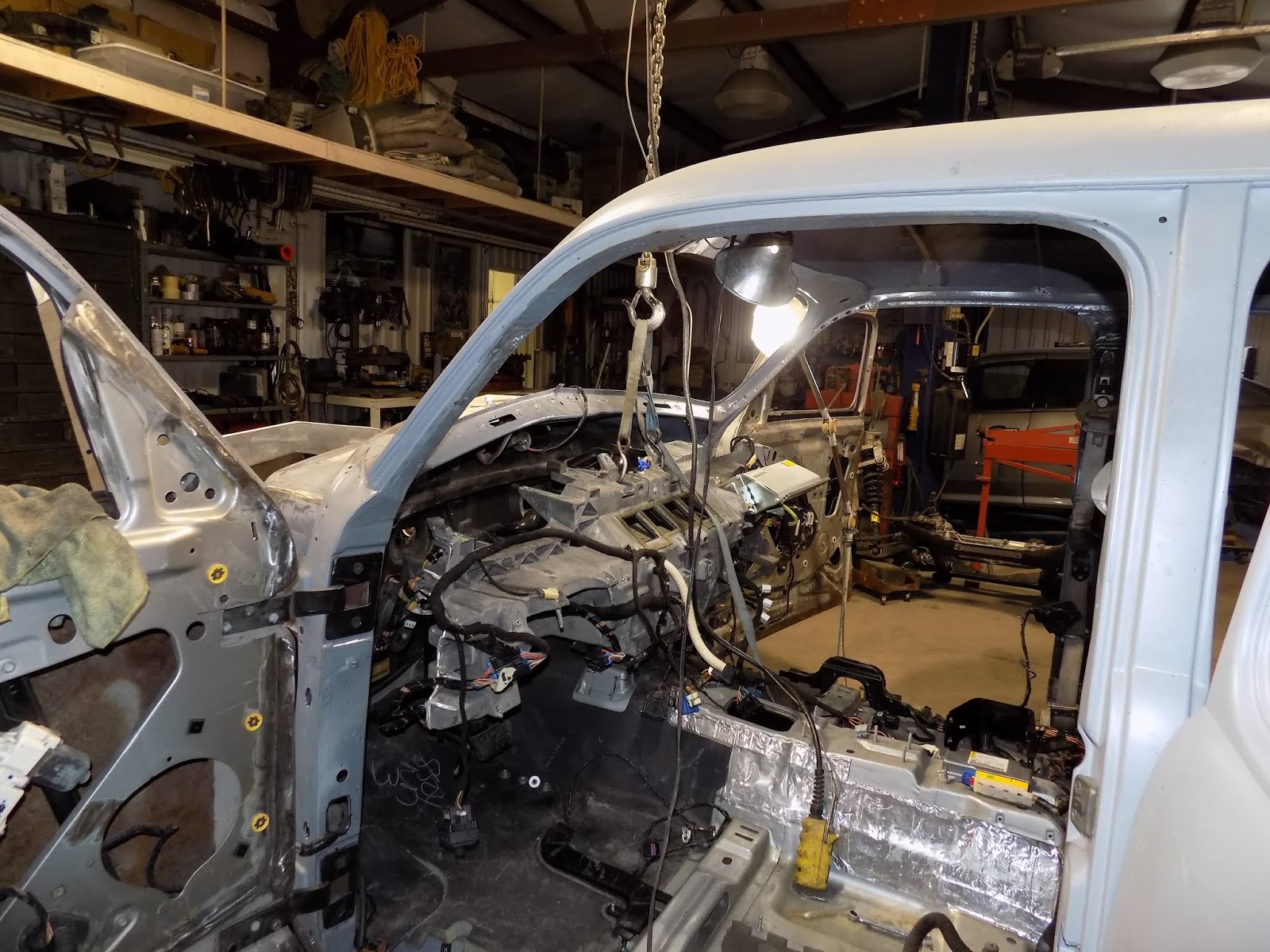

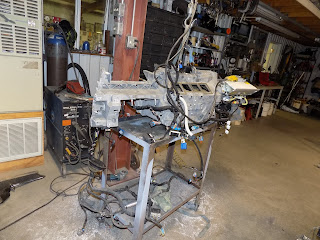

I used my overhead hoist to help the heavy unit whereas the ultimate trimming was finished then bolted in place.

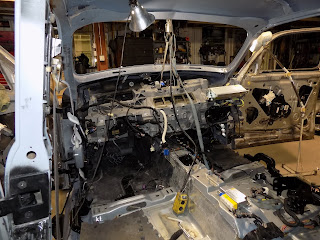

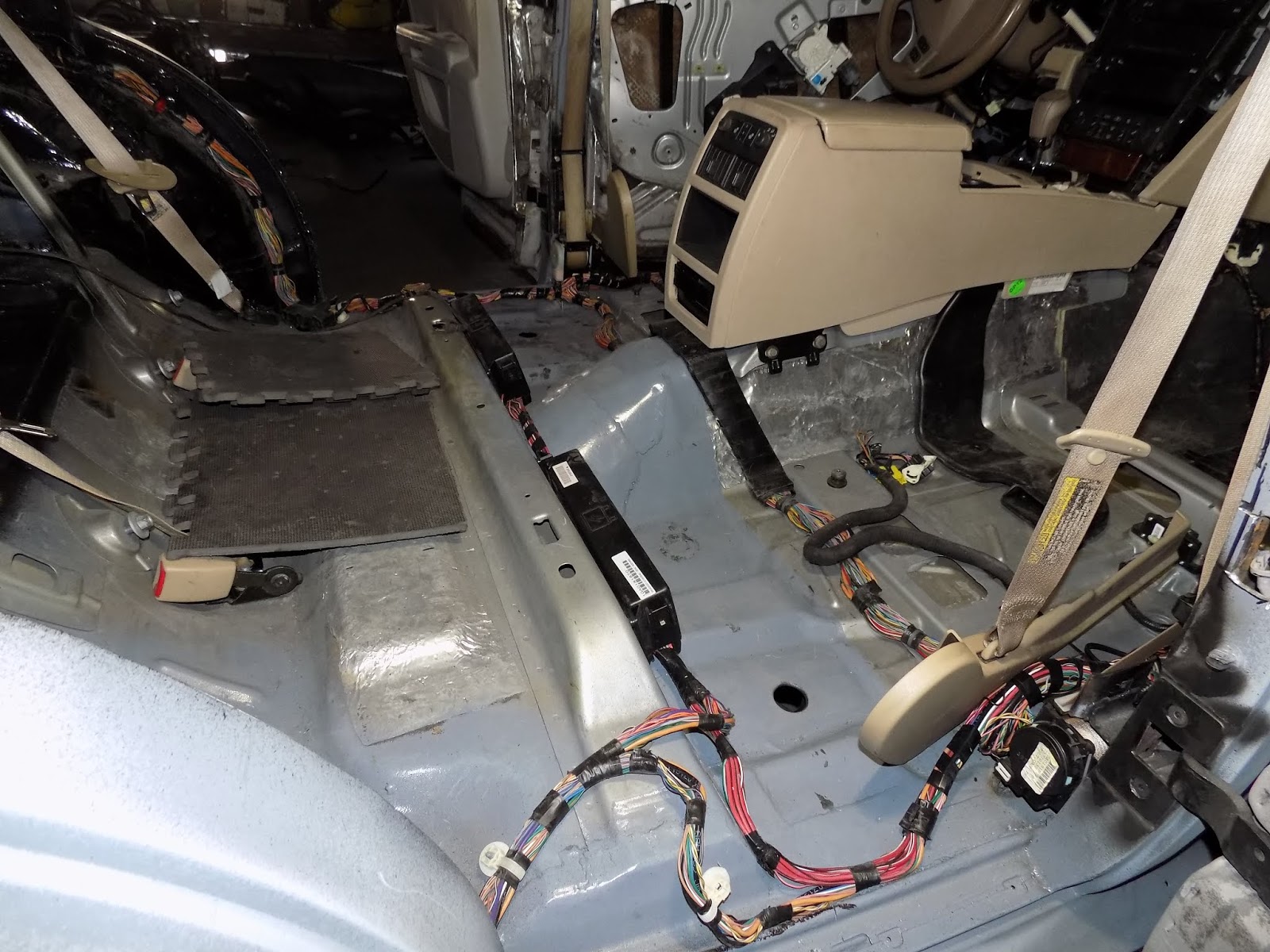

The principle wiring harnesses from the 05 have been put in place and linked the place ever attainable

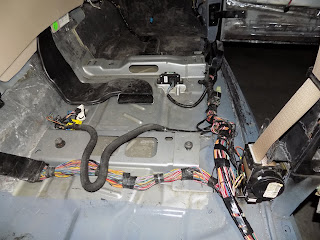

The harness within the physique extends from the hearth wall down either side and into the trunk that additionally connects the rear brakes and fuel tan.

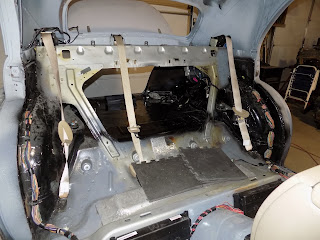

The 05 seat belts are actually in place with new mounting holes and plates added to the package deal shelf. Above photograph exhibits the permeant entrance seat belt, all of the 07 belts have been smoke broken.
The 05 sprint board was reduce down on every finish then match to the cowl space the place a part of the sprint reduce away to clear the wiper meeting.

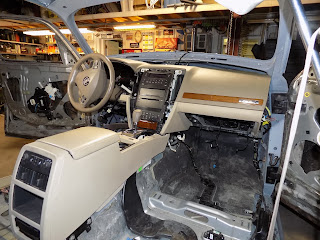

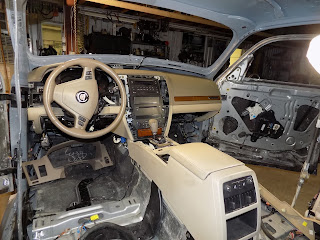

Heart console, controls and steering wheel meeting put in and linked to the harness (that every one plugged collectively)

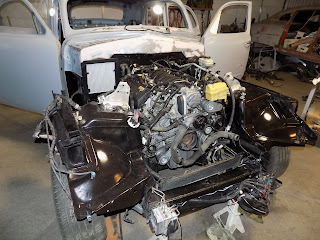

The 05 4.6 North Star 32 valve engine bought an oil change and new spark plugs then set into the painted engine bay.
The Anti-Lock brake system nonetheless needs to be bled, re-route the wiring for the engine because the fuse panel needed to be moved from the entrance to the hearth wall and many different points to repair.
