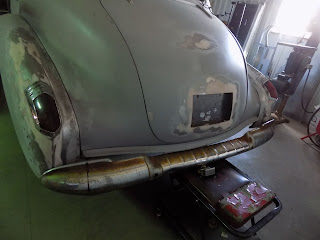

The prevailing bumper appeared misplaced behind the 41 Cadillac and I made a decision to modified it to slot in near the again between the rear fenders.

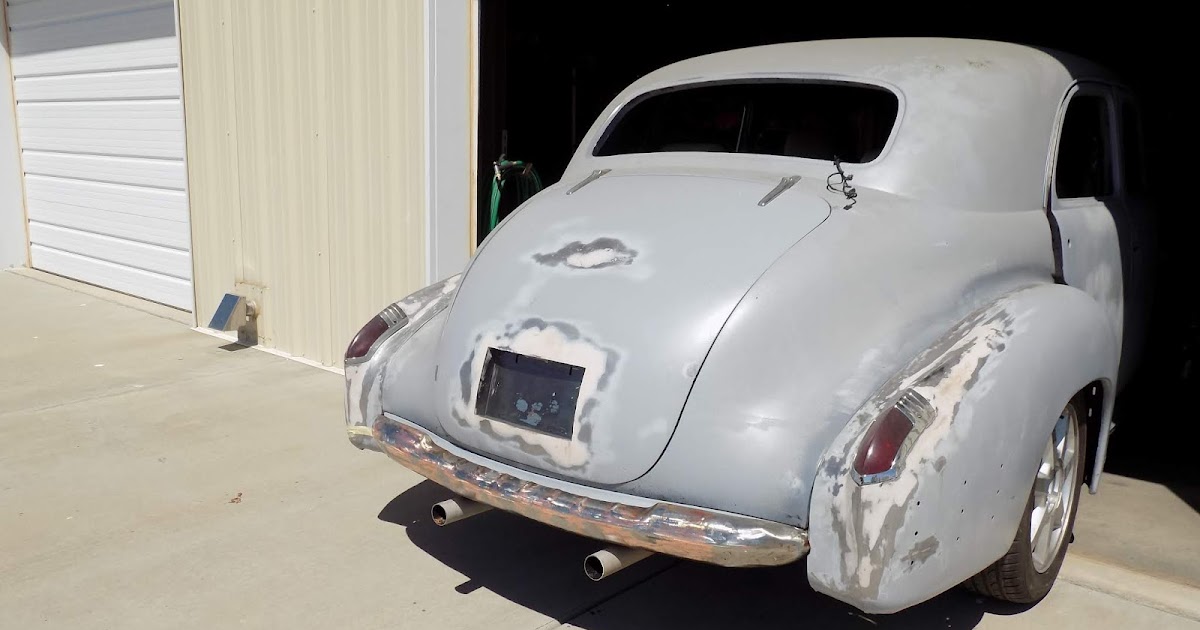

(The image beneath is the completed reshaped bumper.)

Custom Built Bumper for the 4105
1648777280 521 Custom Built Bumper for the 4105

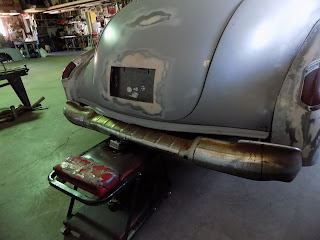

The inventory bumper was set in place and as you possibly can see dose not match the again of the automotive. It was marked for heart and the place the primary cuts can be made. It is a lower and match as you go to get the look that I need.

1648777281 811 Custom Built Bumper for the 4105

 As soon as the ends had been lower off it could possibly be slid beneath the gravel pan and scribed for the curve of the again of the automotive.

1648777281 568 Custom Built Bumper for the 4105

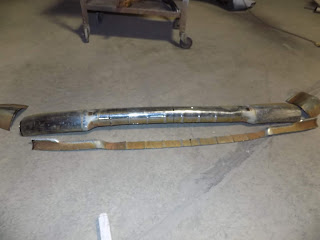

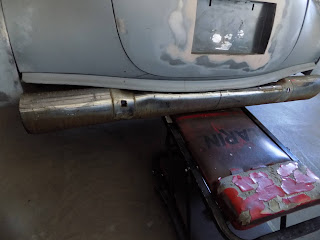

 The highest a part of the bumper was lower off and I acquired a part of the curve however nonetheless not sufficient.

1648777281 868 Custom Built Bumper for the 4105

 7 cuts had been made on prime & backside so it could possibly be bent into the curve form.

1648777281 886 Custom Built Bumper for the 4105

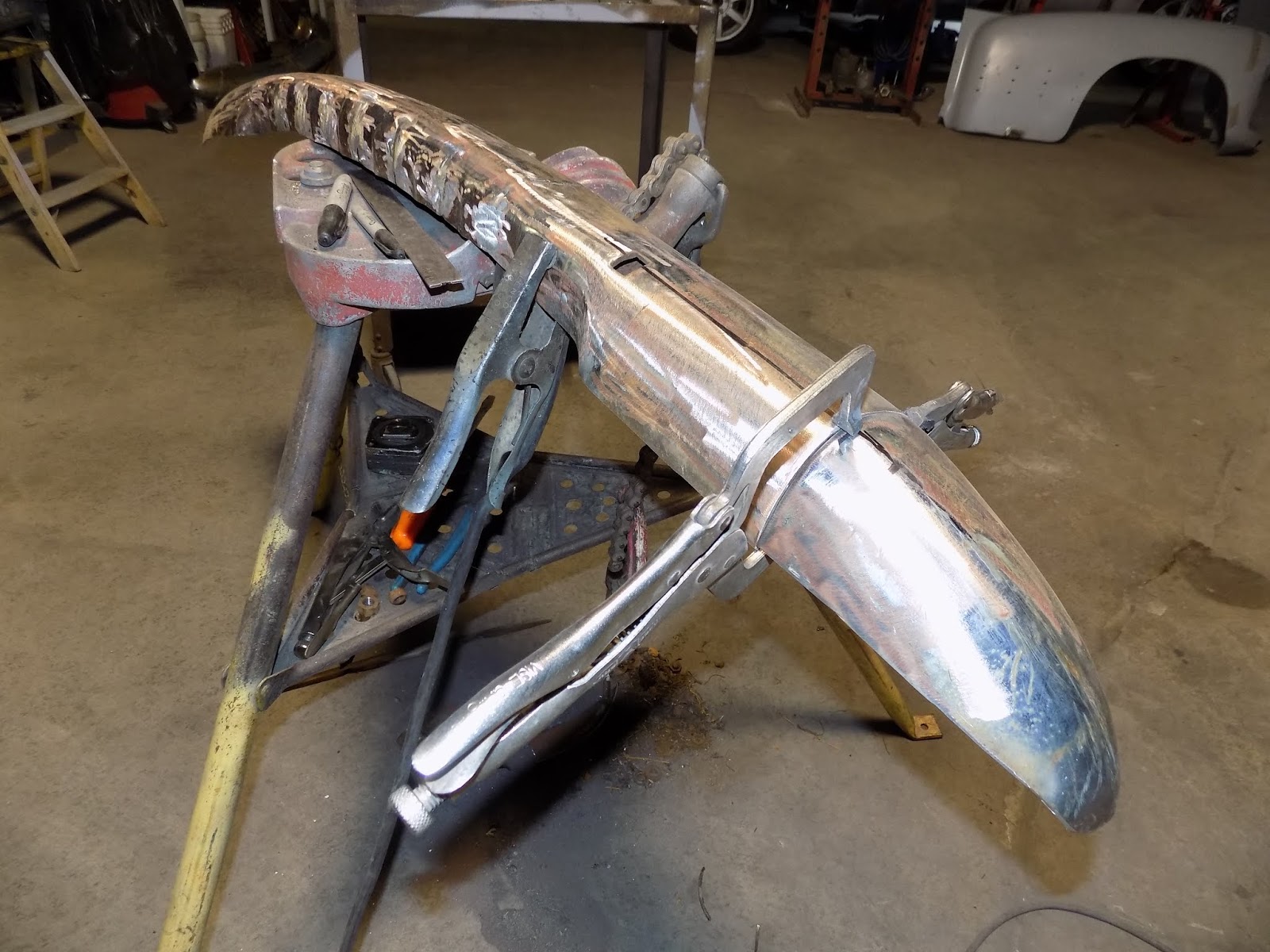

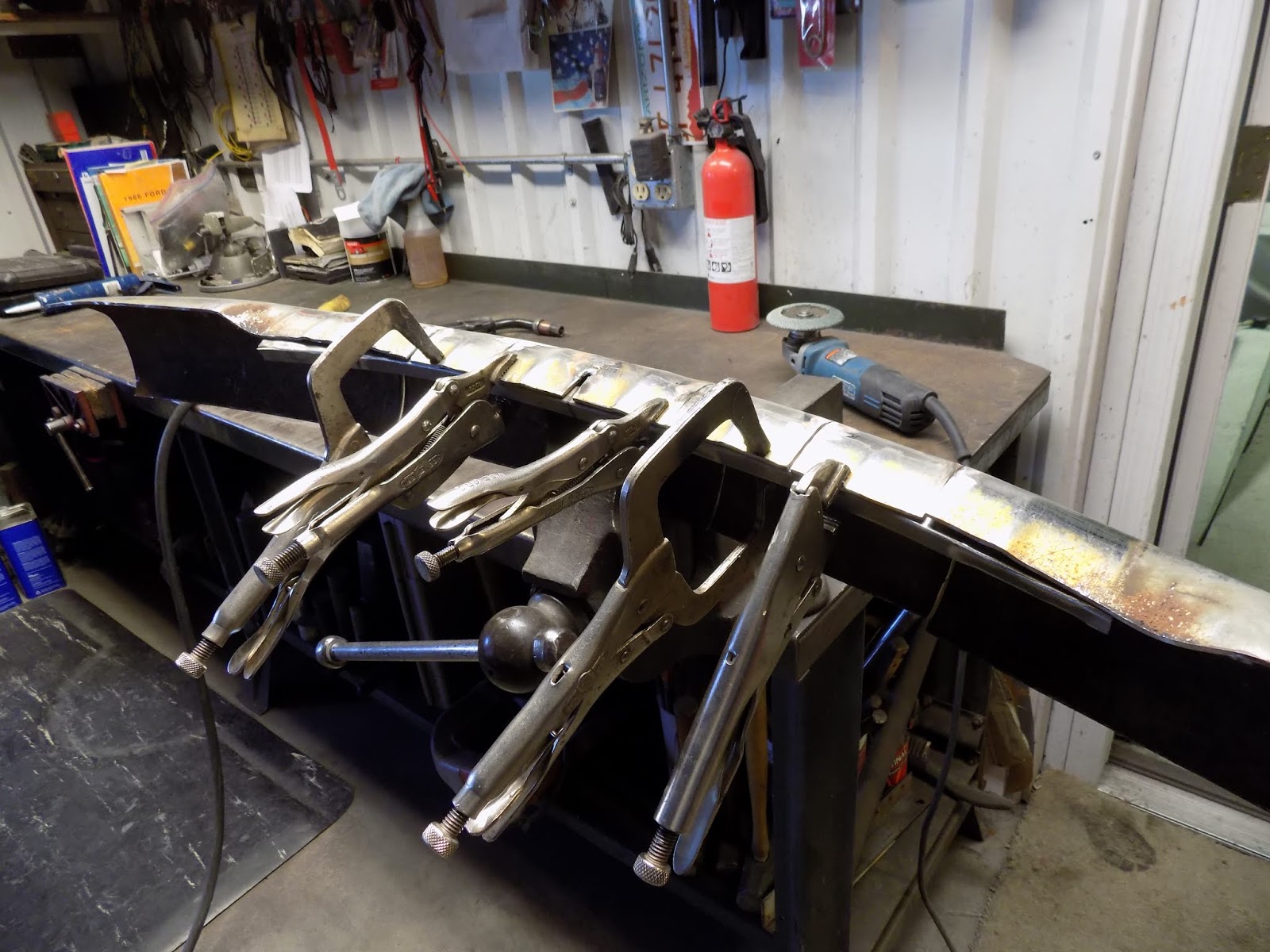

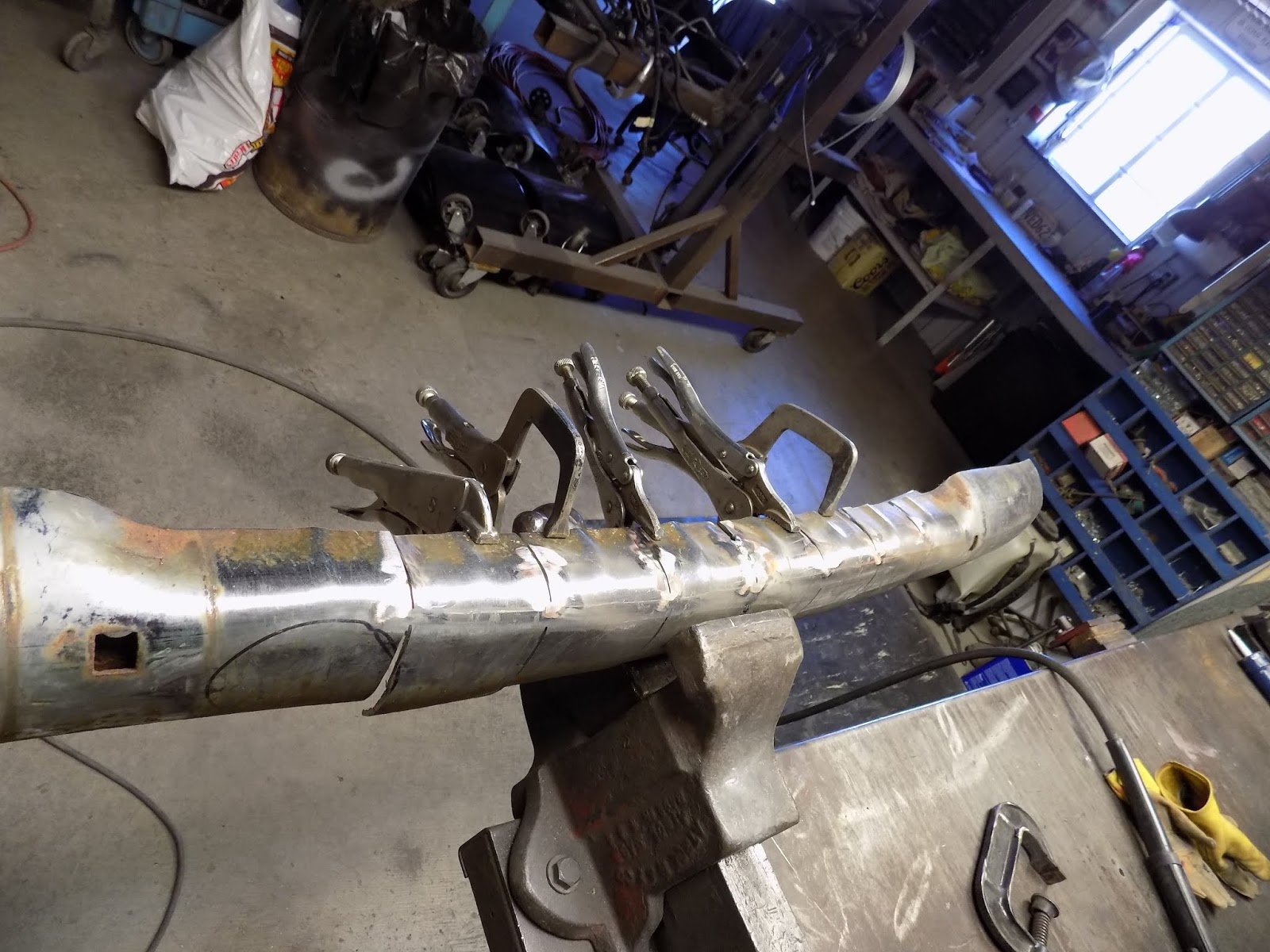

 I bent a 1″X 1″ sq. tube to match the curve of the gravel pan then clamped it to the bumper because it was pulled and bent to match then welded the highest first because it was bent into place. The underside was bent as needed, clamped at every lower then welded.

1648777281 283 Custom Built Bumper for the 4105

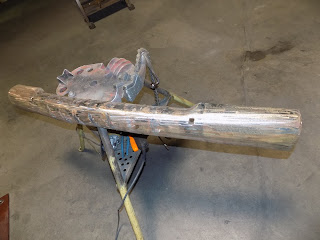

 All of the welded seams had been floor with a 40 grit flapper disc.

1648777282 121 Custom Built Bumper for the 4105

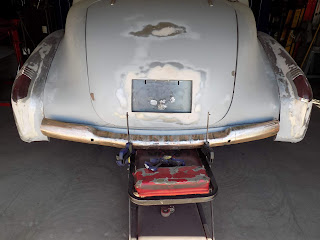

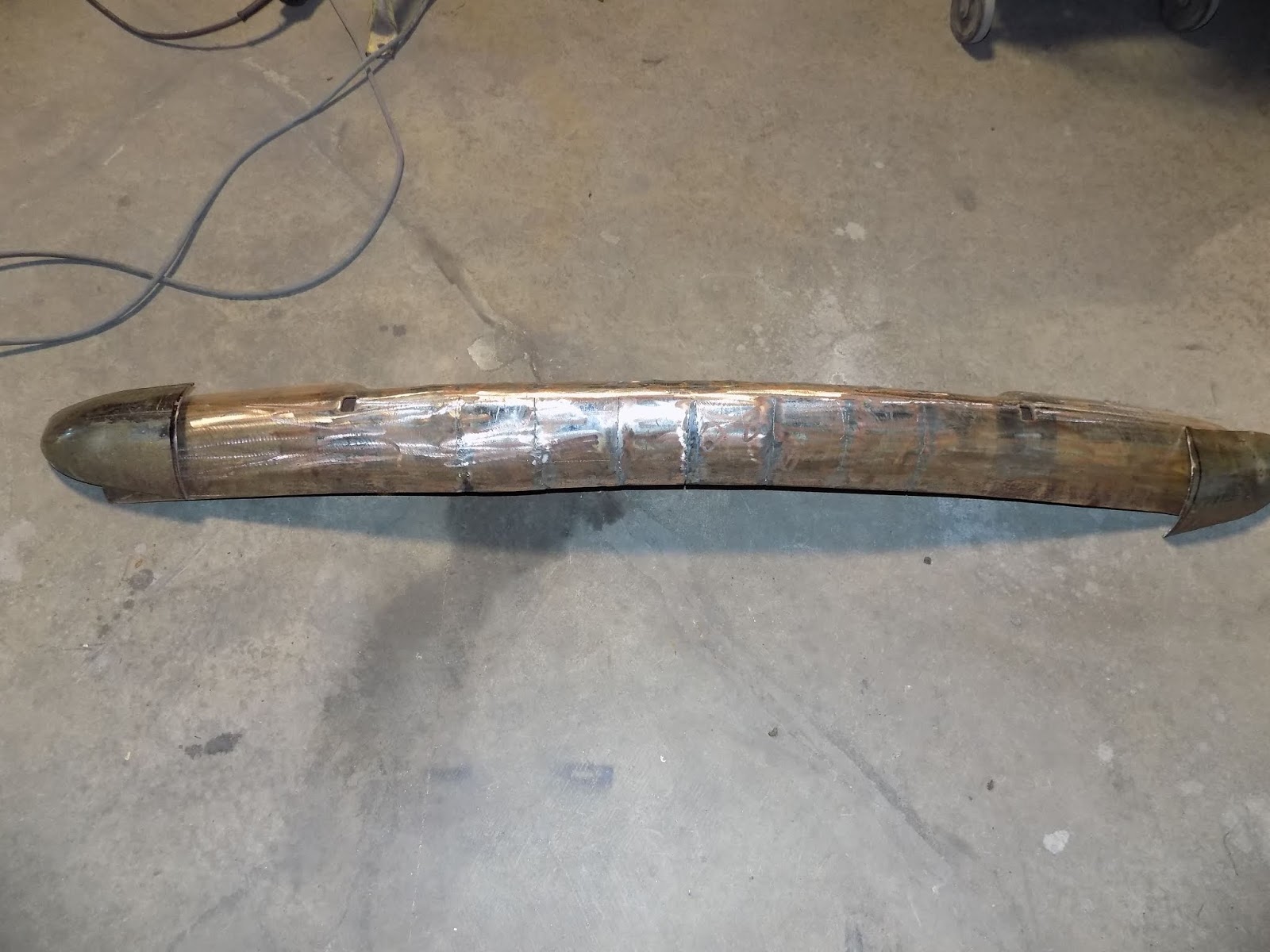

 It now match the again of the automotive and was pulled in to the gravel pan however one thing needed to be added at every finish.

1648777282 320 Custom Built Bumper for the 4105

 The ends that had been lower off the inventory bumper had been lower right down to match the reshaped bumper.

1648777282 759 Custom Built Bumper for the 4105

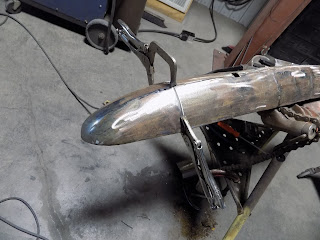

 Either side was scribed to suit the angle and hold the middle line of the bumper consistence then welded in place.

1648777282 629 Custom Built Bumper for the 4105

 Above and beneath you possibly can see the place the pointed finish of the bumper was lower off, trimmed down then welded again to type the turned again finish of the bumper.

1648777282 343 Custom Built Bumper for the 4105

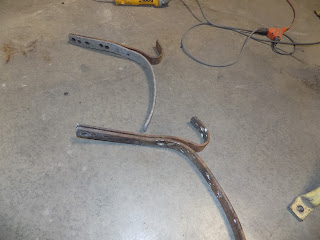

The brackets had been lower aside then the one aspect for use was sand blasted.

1648777283 238 Custom Built Bumper for the 4105

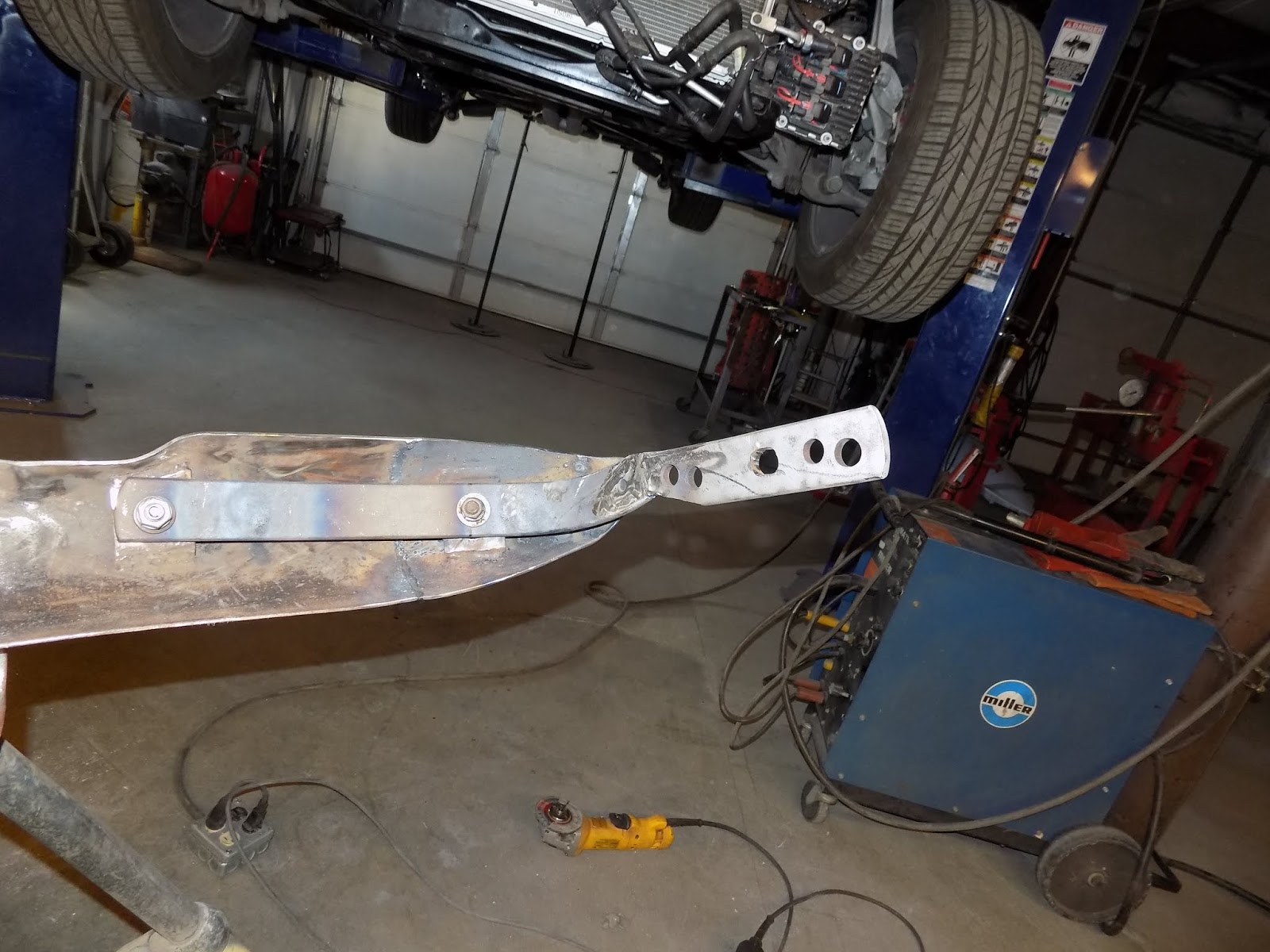

 The mounting bracket’s had been bolted to the prevailing tabs on the again of the bumper then I used an acetylene torch to warmth and bend them to suit then drilled a gap near had been the bend is for the second tab is.

1648777283 752 Custom Built Bumper for the 4105

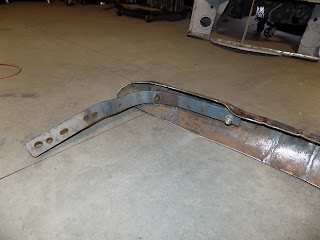

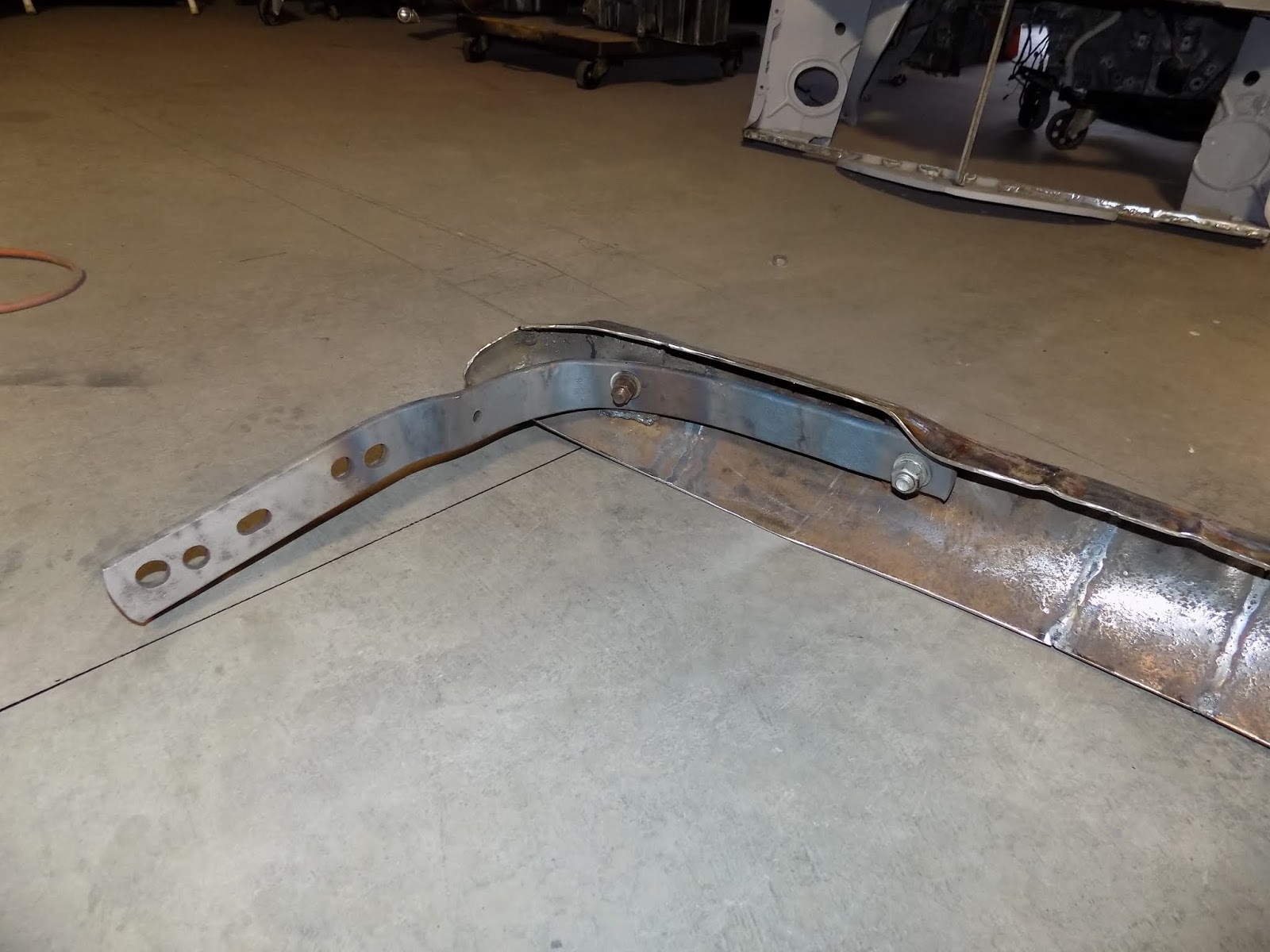

 With each brackets in place it was positioned on the automotive to see the place the brackets wanted to be lower to suit the body.

1648777283 360 Custom Built Bumper for the 4105

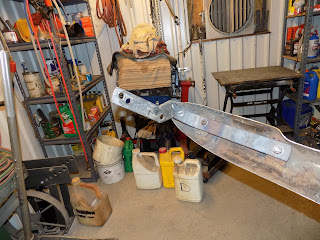

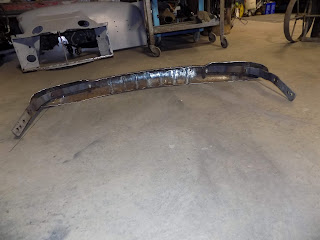

 1/2″ bolts had been welded in to fill the 2 holes the place the bumper bolts use to be.

1648777283 887 Custom Built Bumper for the 4105

 After the brackets had been lower off the bumper was put in place, ends of the brackets held to the body mounting holes, marked, lower then bolted to the body and welded to the bumper.

1648777283 785 Custom Built Bumper for the 4105

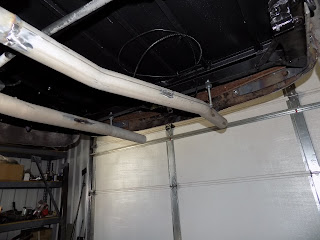

 With the bumper in place the tail pipes had been match and welded in place, helps fabricated and put in.

1648777284 439 Custom Built Bumper for the 4105

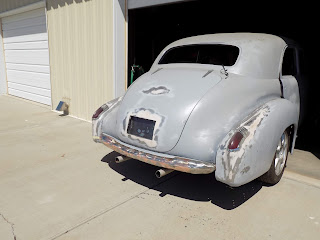

 The reshaped bumper and accomplished exhaust system seems to be fairly good.

1648777284 708 Custom Built Bumper for the 4105

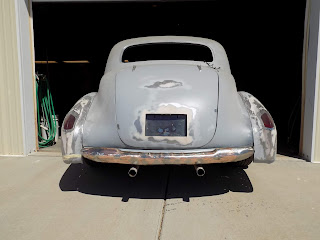

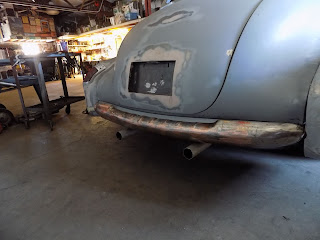

 The underside inside fringe of the fender can be reshaped to match the ends of the bumper, aside from that I like the brand new look.
