I had determined to make use of the 05 trunk latch meeting because it has an electrical & handbook opener and the 05 wiring harness is about up for it. The underside latch regarded as if it would slot in the pocket the place the 41 was and the higher a part of the latch needed to mounted to the trunk lid the place the prevailing trunk deal with/latch and license plate have been mounted. Somewhat than construct a plate meeting for it I believed a frenched in license plate field would give me a easy mounting floor on the again of it and clear up all of the holes within the trunk lid.  This concept got here from “Full Customized Storage” Ian Roussel work on considered one of his customized builds.

Frenched in license plate

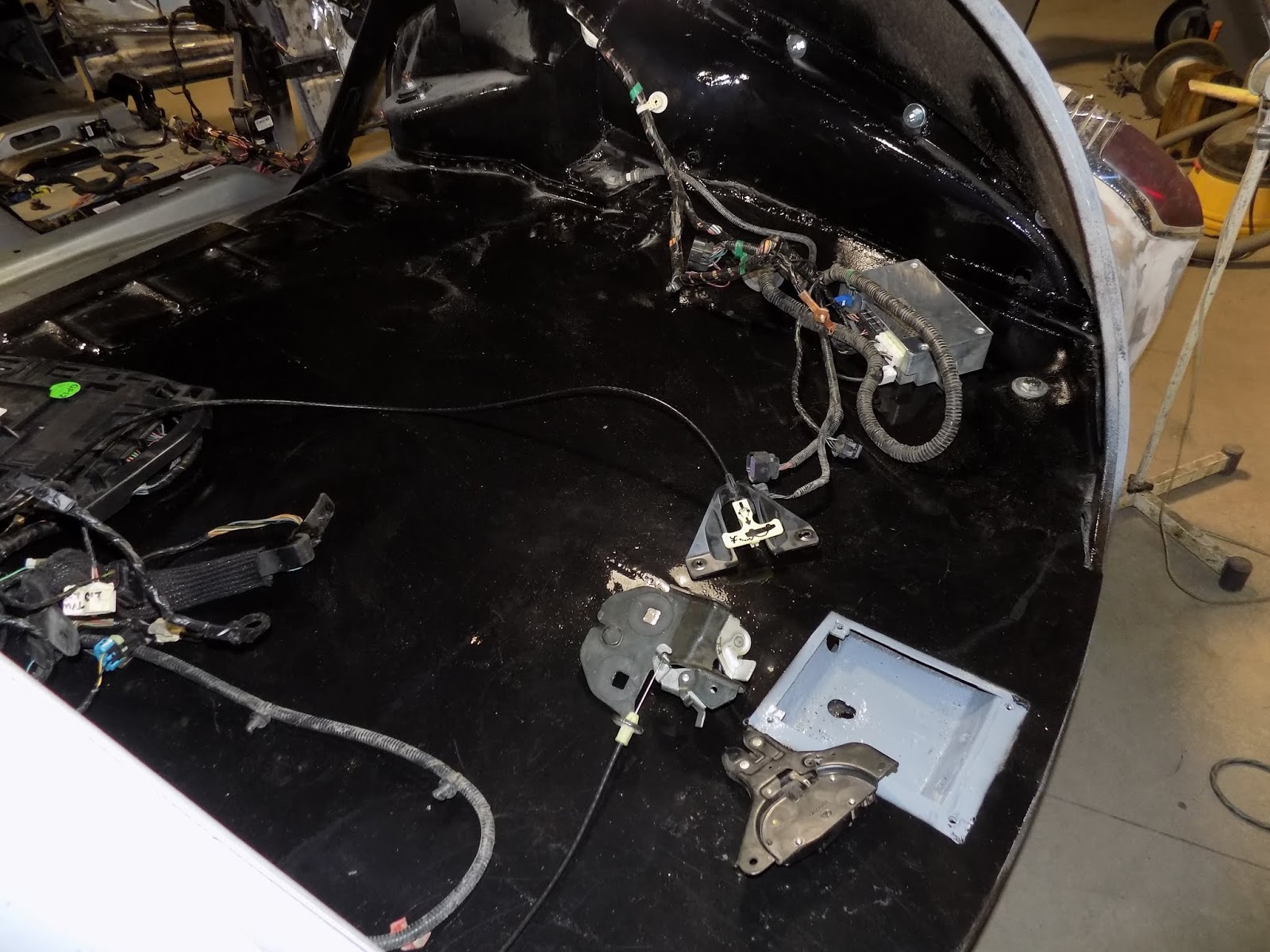

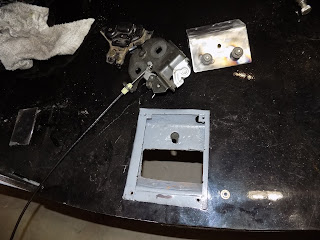

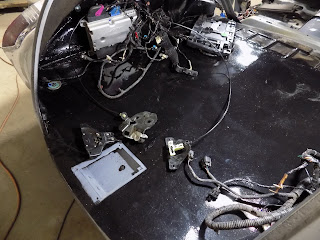

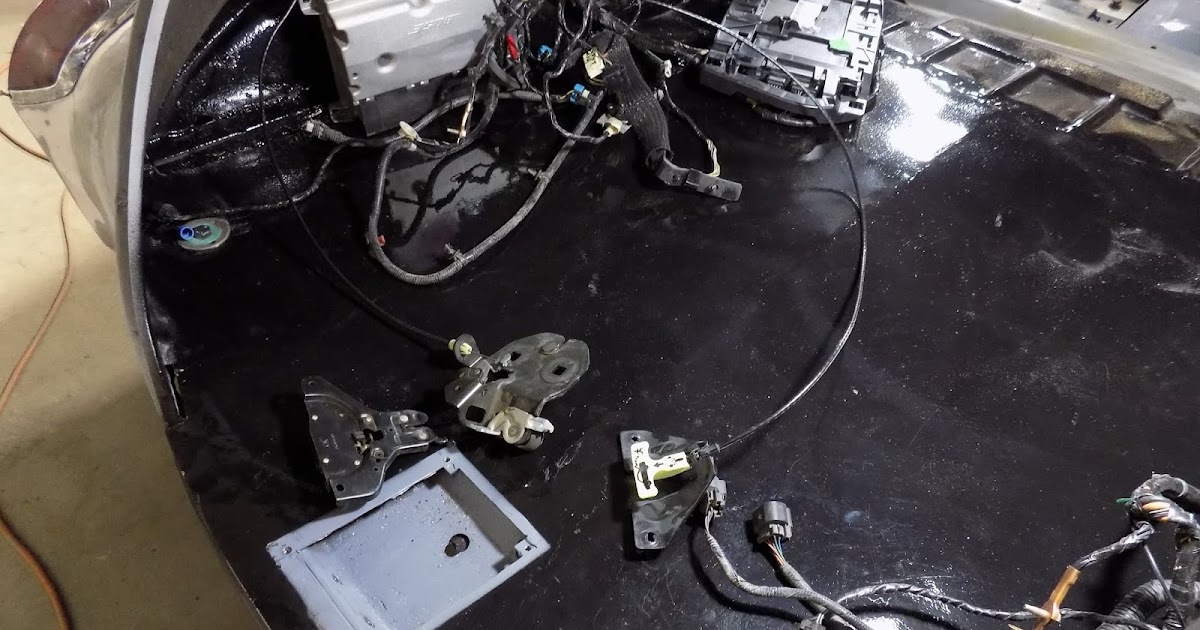

 These two photos present the 05 latch with the handbook pull cable hooked up to the decrease latch and the pocket the place the 41 latch catch was mounted.

1648827577 888 Frenched in license plate

 A gap was minimize within the backside of the pocket to suit the decrease latch and to see the place the higher latch needed to be mounted.

1648827577 444 Frenched in license plate

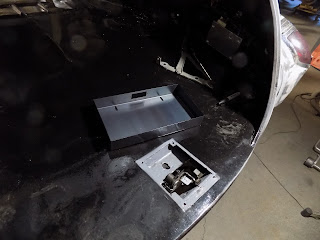

 I discovered a frenched in license plate field on Amazon that was the least costly and include a light-weight & mounting holes.

1648827578 330 Frenched in license plate
1648827578 791 Frenched in license plate

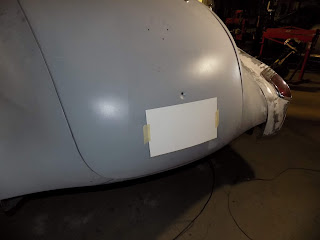

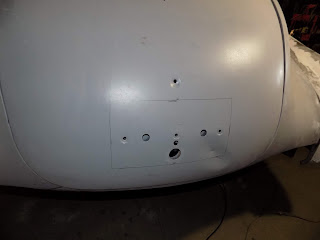

 The trunk was laid out with a cardboard templet so it was symmetrical with the tail lights and low as attainable for the higher latch to be mounted.

1648827578 480 Frenched in license plate

1648827579 211 Frenched in license plate

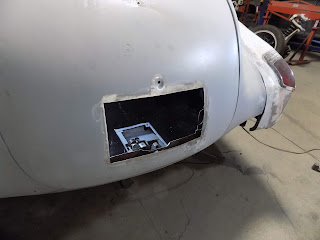

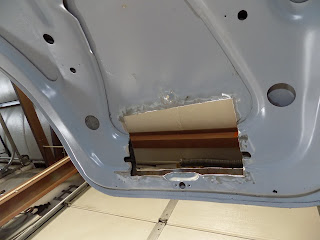

 Above and beneath present the opening within the trunk lid that was minimize with a 4″ chopping wheel on a angle grinder then the sides have been cleaned up with 40 grit flapper disc.

1648827579 435 Frenched in license plate

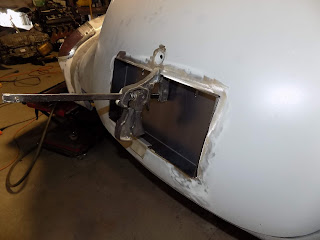

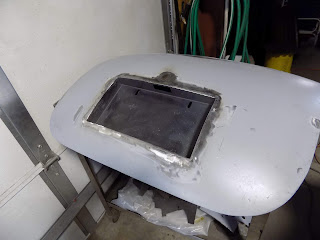

 The field was held in place with a clamp and a few grey tape. Every finish caught out previous the floor to permit for the curve of the deck lid.

1648827579 546 Frenched in license plate

1648827579 661 Frenched in license plate

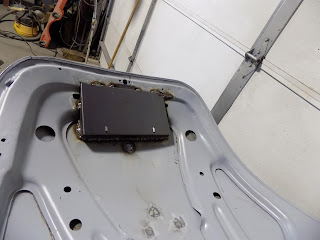

 The inside and outside have been welded utilizing the sew weld technique to stop warping then the welds and protruding ends have been floor easy with a 60 grit flapper disc.

1648827579 622 Frenched in license plate

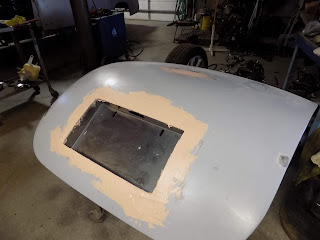

 3M bondo was utilized to all edges and to the trunk emblem & keyholes that had been welded closed.

1648827580 480 Frenched in license plate

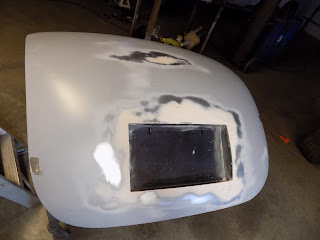

 All of the filed areas have been block sanded easy and the frenched in license plate is prepared for primer.

1648827580 601 Frenched in license plate

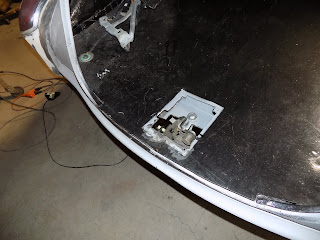

 It took two tie’s to get the higher and decrease latches to shut collectively because the angle of the 05 trunk closed just about straight up & down whereas the 41 swings down.

1648827580 847 Frenched in license plate

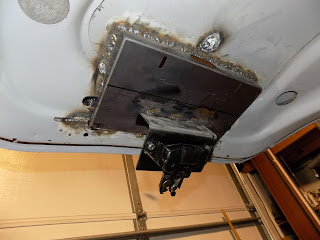

The higher latch needed to spaced out 4″ from the again of the license plate field that required me to crawl within the trunk with the lid closed to get it aligned and tack welded in place. The higher latch has the electrical opener in it.

1648827580 591 Frenched in license plate

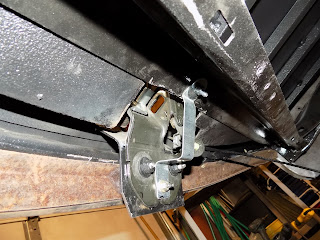

That is wanting on the backside of the trunk space with the decrease latch hanging down additional than I needed it to however you may see the brackets that have been fabricated to assist the latch. The handbook pull cable is on the far aspect.

1648827581 434 Frenched in license plate

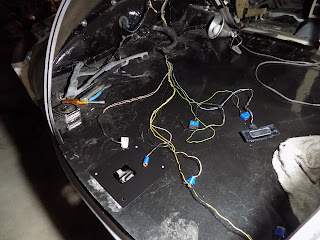

A plate was made to cowl the decrease latch and pocket with a gap simply large enough for the higher catch to slot in. The 05 wiring harness will probably be prolonged to the latch and license plate mild.

1648827581 169 Frenched in license plate
