The entrance of the 41 Cadillac nonetheless wanted to be assembled and I began with the entrance fenders, gravel pans then the grill and bumper. The grill has parking /  flip sign lights in it and the fenders have head lights that have to be repaired then wired in to the 2005 wiring harness.

Make the Lights Work on the 4105 Caddy

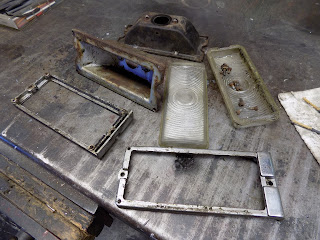

 The parking lights weren’t into dangerous of situation not less than all of the elements have been there. They have been put within the bead blaster to be cleaned up the housings have been painted with the chrome and glass scrubbed clear. the gaskets are destroyed however I’ll fear about then later.

1648755712 916 Make the Lights Work on the 4105 Caddy

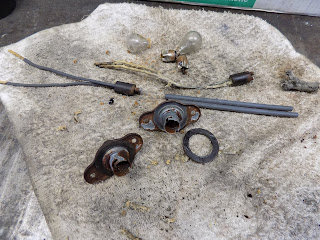

 The sunshine sockets are usable with bead blasting, paint and warmth shrink tubbing on the prevailing wire. The socket base spring loaded terminals have been frozen and needed to be soaked oil in a single day to get them labored free. Then the wires have been prolonged to be lengthy sufficient to succeed in the 05 wire harness.

1648755713 425 Make the Lights Work on the 4105 Caddy

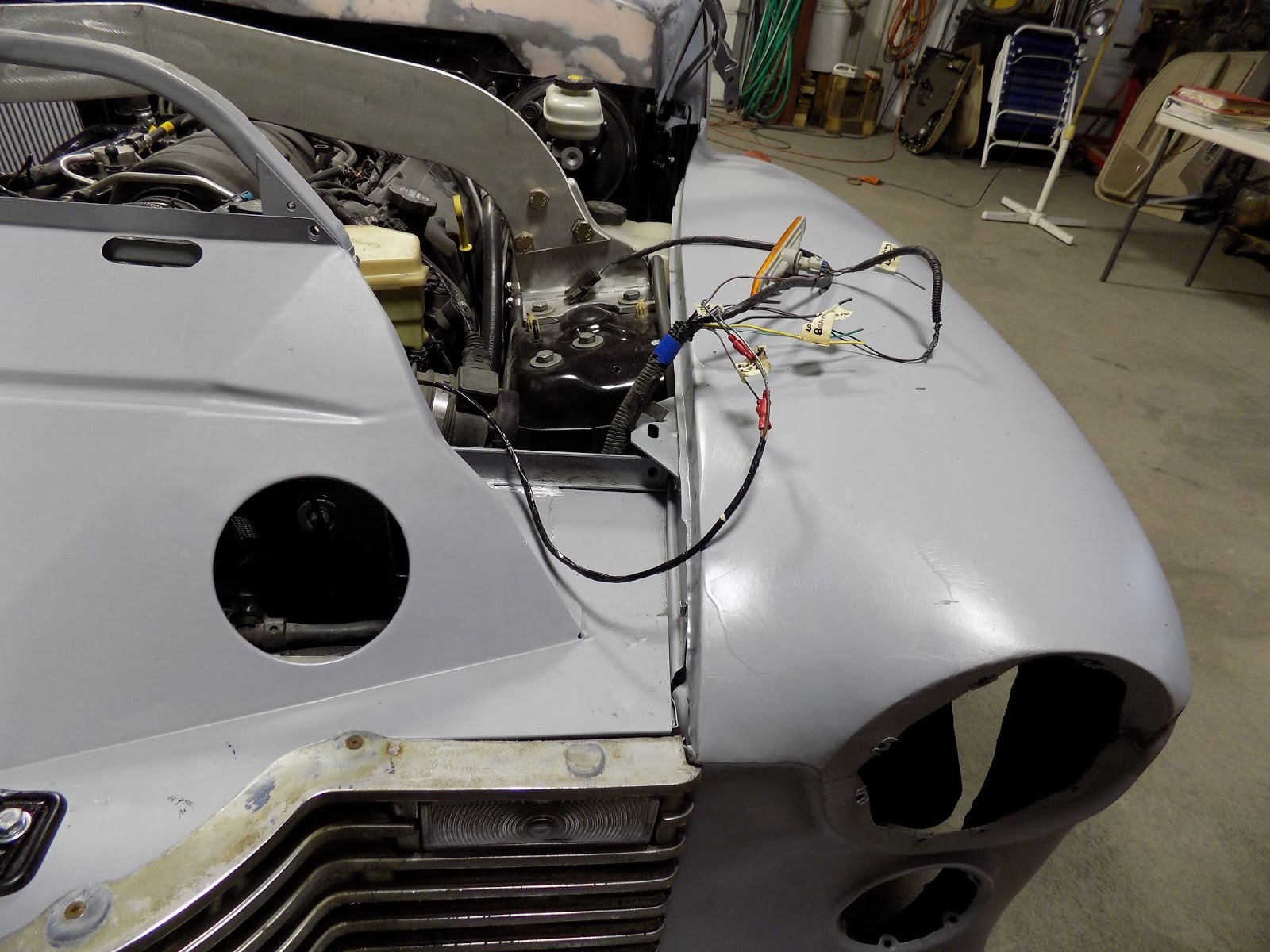

 The 05 wire harness wires have been tagged for the hello/low beam,  parking gentle and switch gentle by turning them on on the sprint switches and check with a check gentle.

1648755713 854 Make the Lights Work on the 4105 Caddy

 I did the identical with the brake/ cease lights – cleaned up the housings, mounted the sockets and increasing the wires to succeed in in to the trunk. After they have been linked the run gentle labored however the cease would make each proper and left flip flash on the identical time. I examined the 05 tail lights and located that the cease & flip had 2 totally different units of LED lights or 2 separate circuits. I made a decision to make use of the entrance fender facet lights for the flip operate and reduce a slot within the backside of the Buick housing.

1648755713 296 Make the Lights Work on the 4105 Caddy

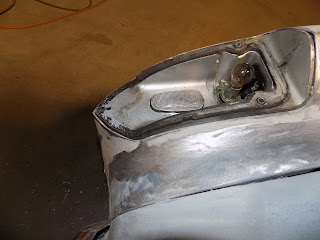

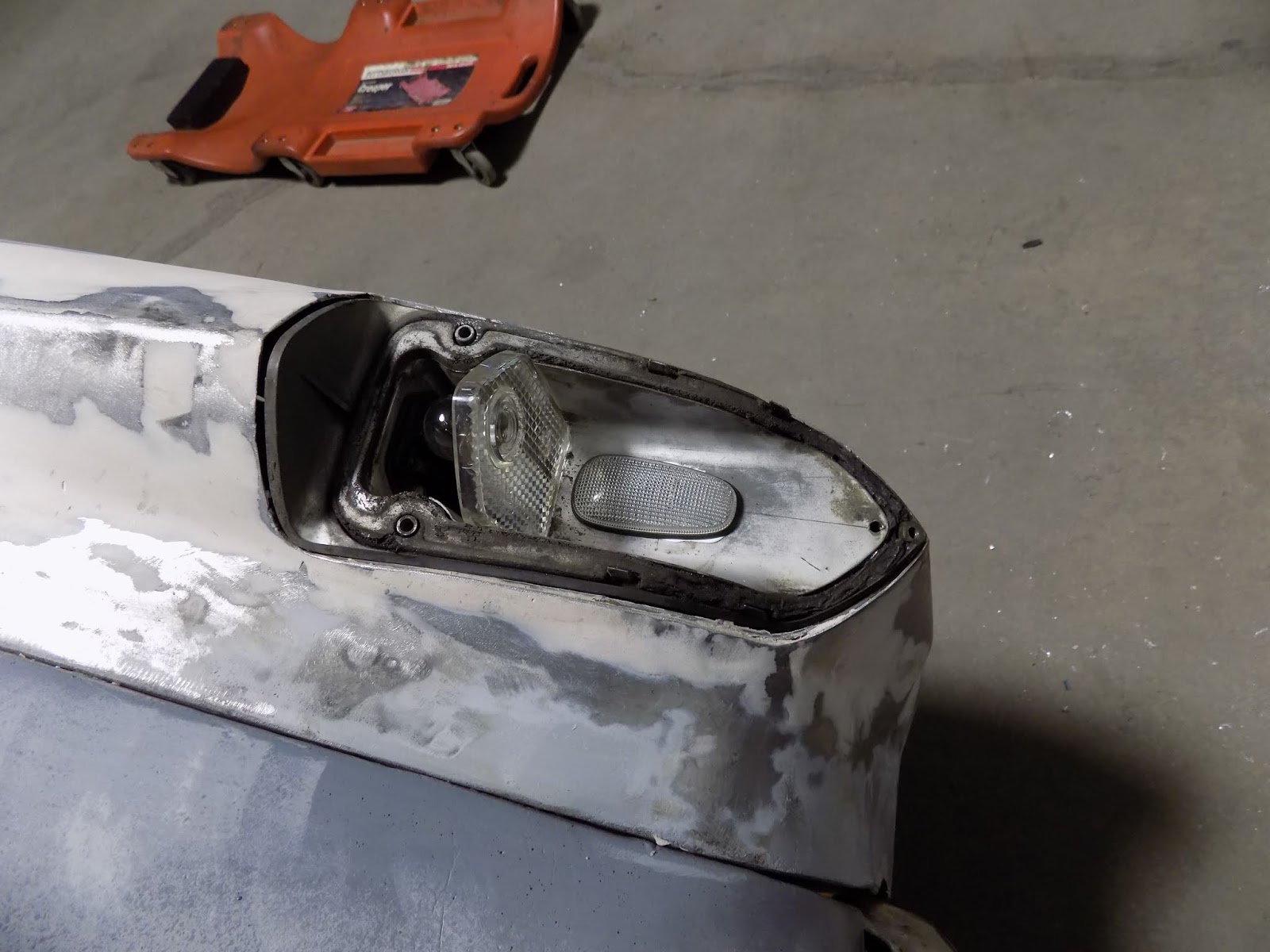

 The facet lights are sufficiently small to suit flat within the backside of the housing and the wires have been prolonged in to the trunk.

1648755713 757 Make the Lights Work on the 4105 Caddy

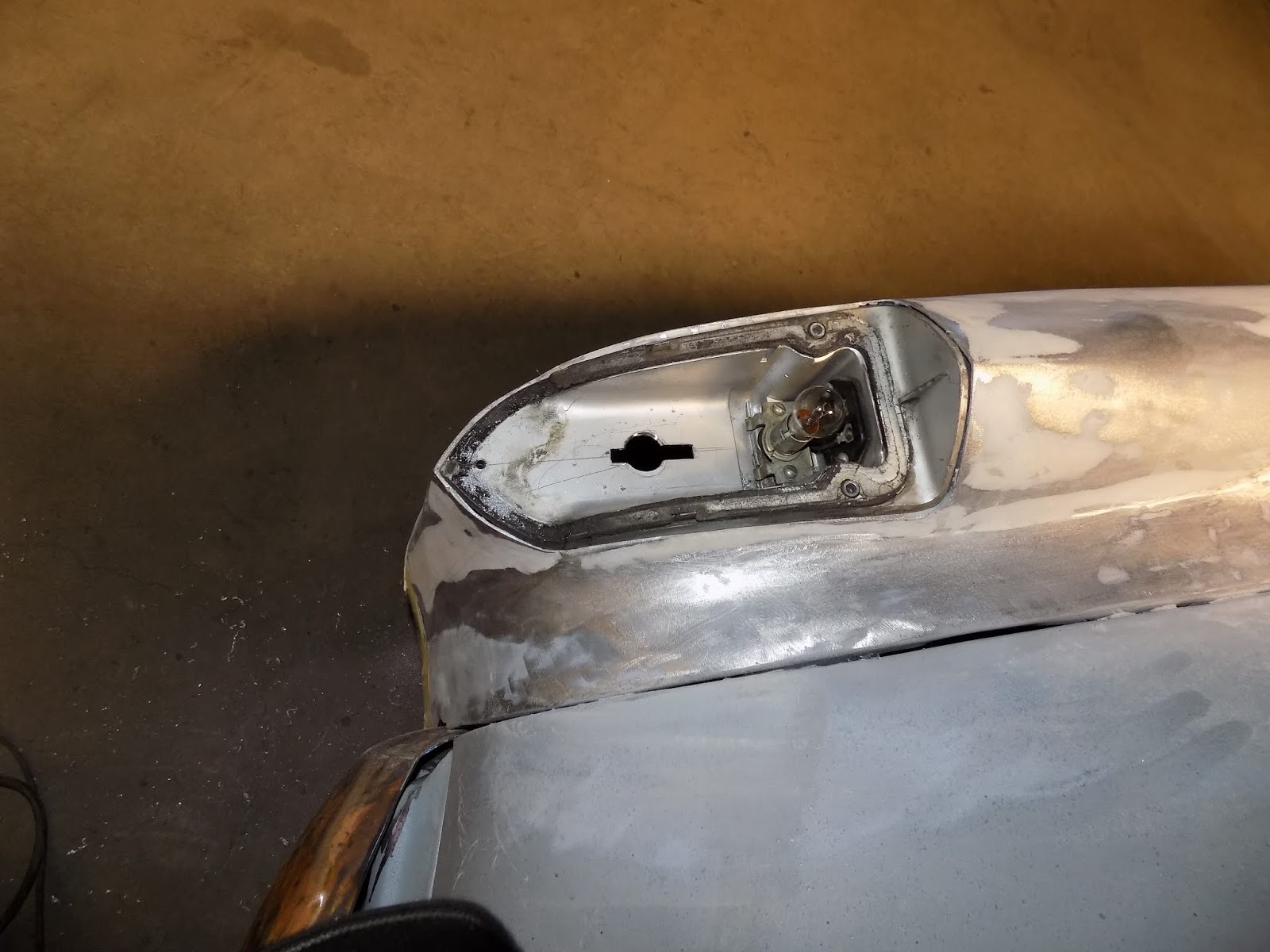

 With each proper & left facet lights mounted they’re the flip sign and the unique lamp is the run / cease gentle.

1648755713 287 Make the Lights Work on the 4105 Caddy

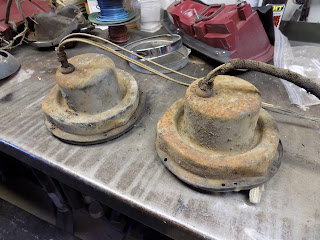

 The top gentle buckets have been in to not good of form because the entrance fenders had taken some abuse and needed to be straightened.

1648755714 698 Make the Lights Work on the 4105 Caddy

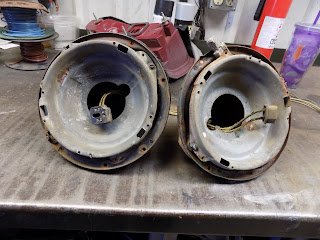

 The adjusting screws have been rusted & frozen, wiring was falling aside however they might be saved. The adjusting screws have been soaked in oil & I used to be capable of get 2 of the 4 freed up & working. I discovered 2 aftermarket adjusting screws equipment with springs on Amazon that must be modified to work.

1648755714 320 Make the Lights Work on the 4105 Caddy

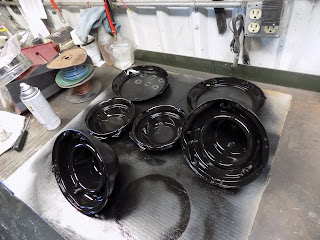

After bead blasting they have been painted and the wiring and lamp sockets refurbished with the wires prolonged.

1648755714 185 Make the Lights Work on the 4105 Caddy

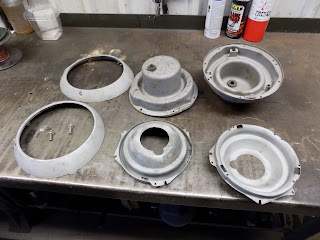

This image is how they appear after bead blasting. I exploit aluminum oxide because the blasting materials.

1648755714 660 Make the Lights Work on the 4105 Caddy

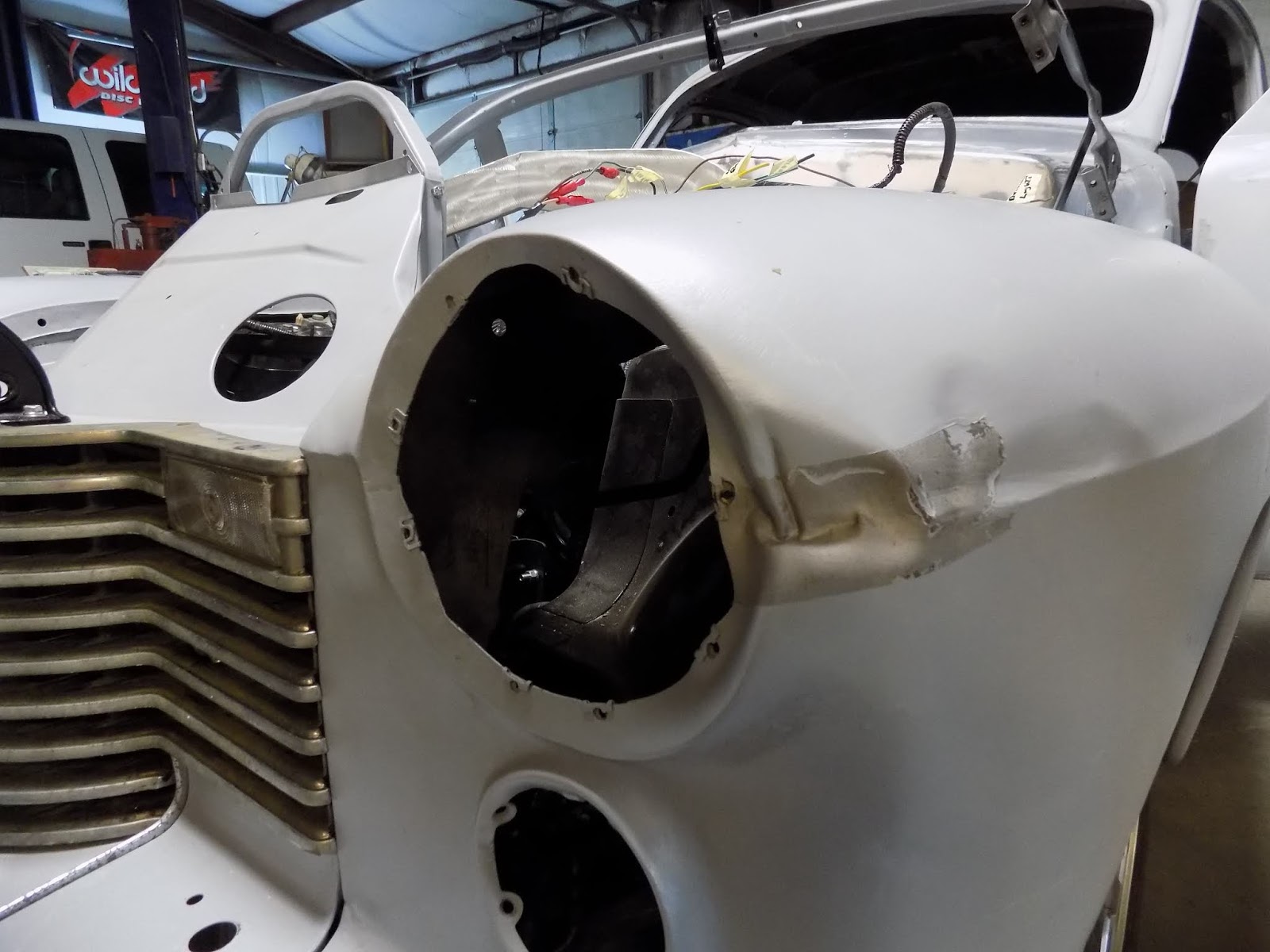

The motive force facet fender had been hit and I needed to make cuts alongside the folded steel to straighten it then welded the cuts. The bent in areas have been pounded out utilizing a hammer & dolly with all of the screw clips saved.

1648755714 622 Make the Lights Work on the 4105 Caddy

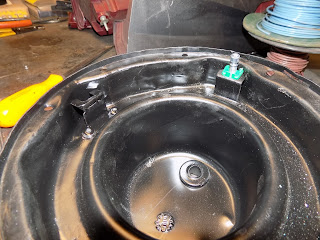

The headlight bucket has 2 adjusting screw brackets one in all which had rusted off. I drilled the pop rivets out to take away the bracket, did the restore then pop riveted it again in place. Each brackets needed to be modified to just accept the aftermarket adjusting screws.

1648755715 496 Make the Lights Work on the 4105 Caddy

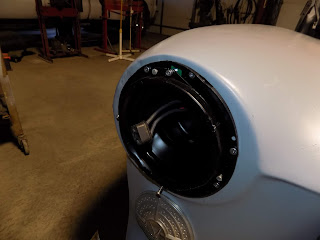

The bucket and lamp holder have been match with changes made to the fender opening.

1648755715 245 Make the Lights Work on the 4105 Caddy

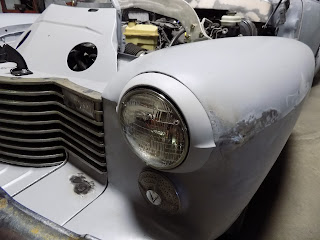

That is the drivers facet fender that was badly bent, it nonetheless wants the height rebuilt however the headlight matches and is wired in.

1648755715 668 Make the Lights Work on the 4105 Caddy

I made a decision to make use of the entrance bumper as is to cowl as a lot as potential of the 2005 parts below the entrance gravel pan.

1648755715 513 Make the Lights Work on the 4105 Caddy

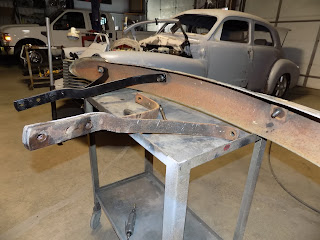

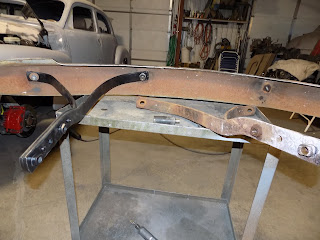

The bumper brackets have been bead blasted & painted and the bolts that attaches them to the bumper have been welded in place to make the bumper clean (no bolt heads exhibiting).

1648755716 653 Make the Lights Work on the 4105 Caddy

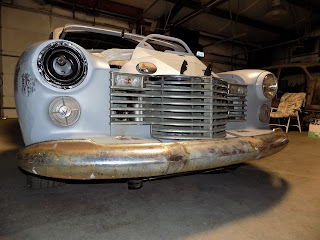

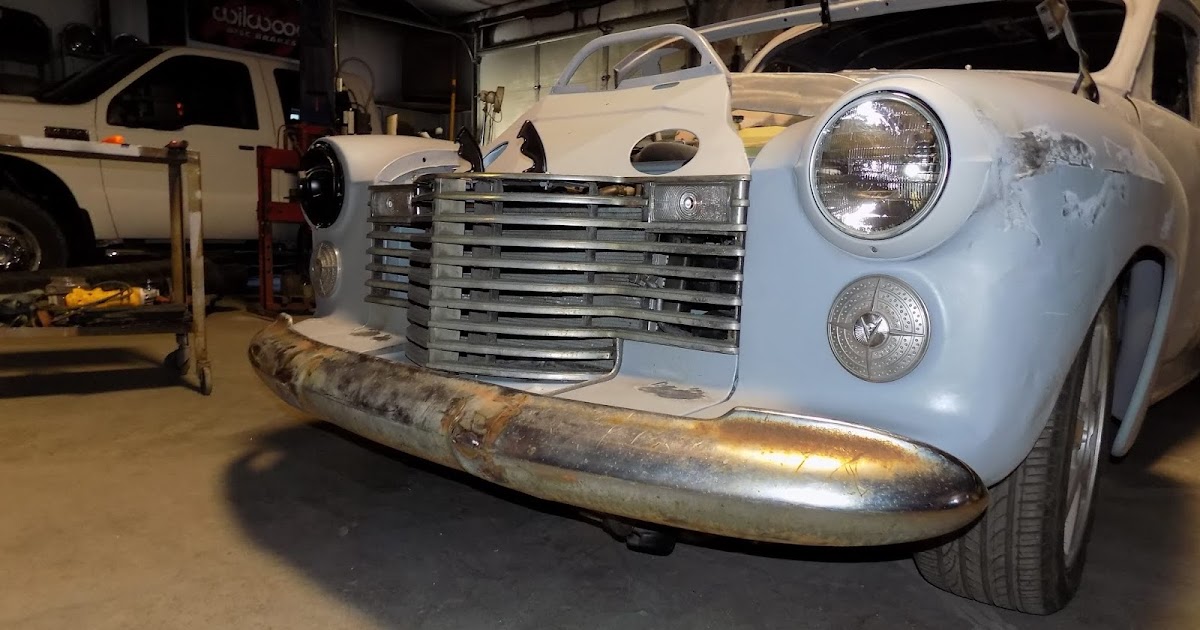

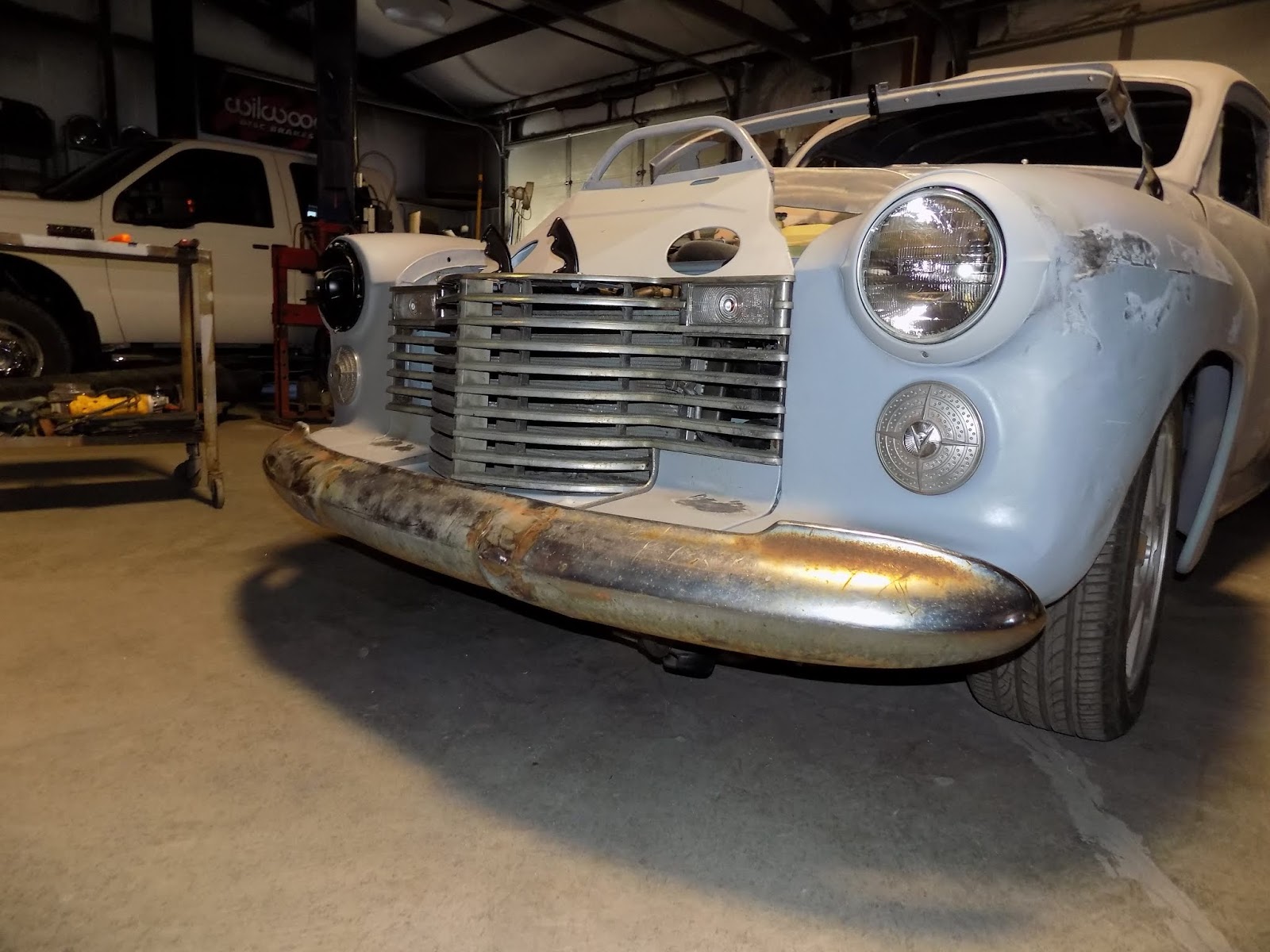

The grill, bumper back and front lights are all repaired & in place with all lights working, I’ll attempt to get the hood put again to collect and in place subsequent.
