MORE CADILLAC PROJECT

[ad_1]

With the 2005 Cadillac STS nonetheless on the hoist the engine and entrance suspension is eliminated in preparation for the everlasting components to enter the 41. The hood and entrance clip was eliminated then all of the cooling, brake , A/C traces disconnected and cable harnesses , the place vital disconnected.

MORE CADILLAC PROJECT

 I put my physique dolly, that I had constructed, to suit the entrance subframe, engine and transmission of the 05 then lowered the automotive so the subframe sat on the dolly, took the 6 bolts out of the subframe and the ten bolt’s from the highest of the struts and lifted the physique up utilizing the hoist.

1648837623 200 MORE CADILLAC PROJECT

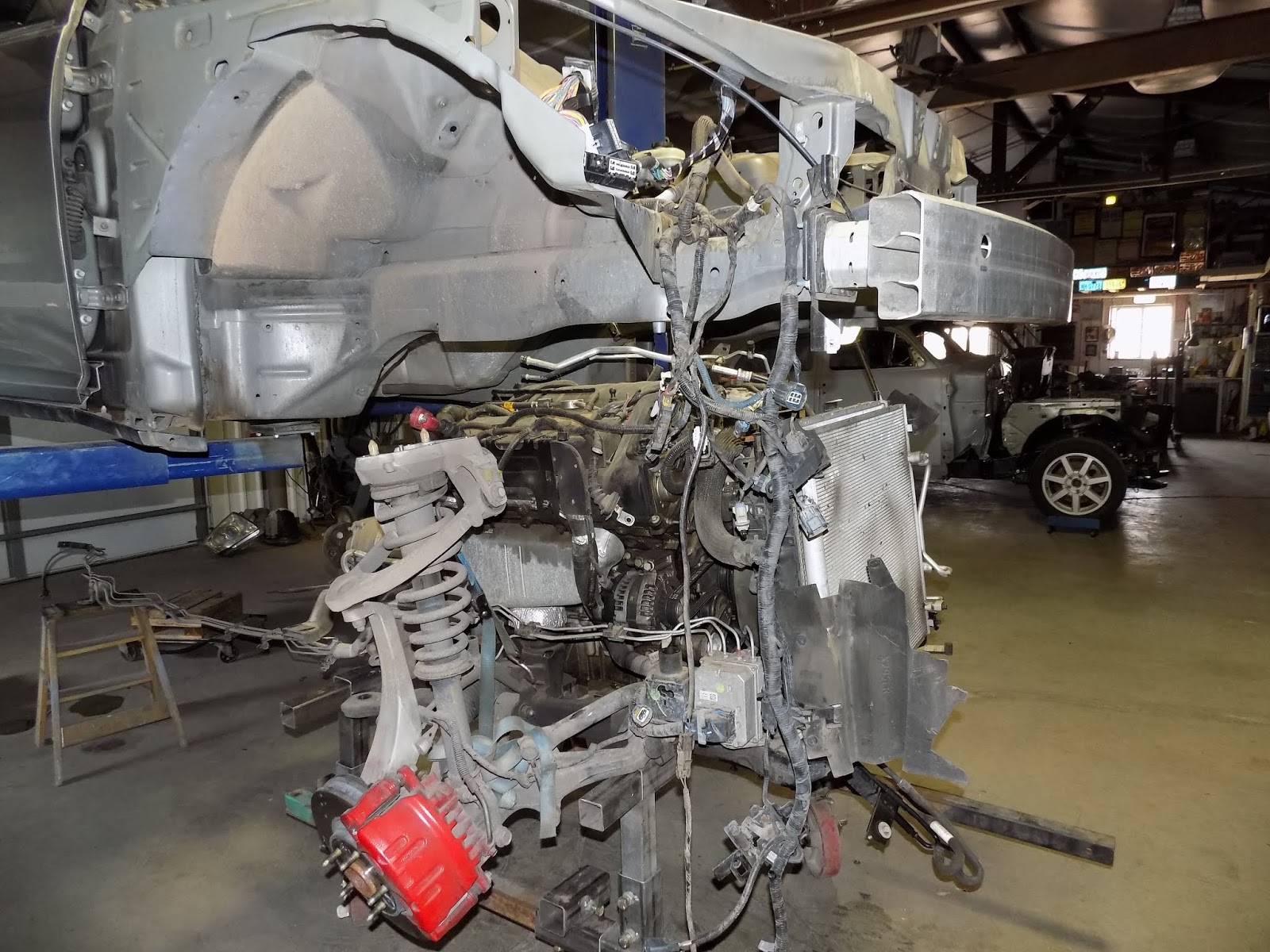

 As you may see the engine / suspension meeting comes out as an entire package deal together with all of the wiring harness and features. Though it was very heavy it moved very simply on the big wheels of the dolly throughout the store to below the chain hoist the place the engine / transmission was separated from the subframe / suspension.

1648837623 47 MORE CADILLAC PROJECT

1648837623 111 MORE CADILLAC PROJECT

 The massive parts had been moved exterior, sprayed with degreaser and Easy Inexperienced, then washed with an influence washer.

1648837624 759 MORE CADILLAC PROJECT

1648837624 833 MORE CADILLAC PROJECT

 The 05 components are in superb situation – higher than the 07.

1648837624 917 MORE CADILLAC PROJECT

 I eliminated the 07 subframe, that I had made alterations to, and put the 05 unit as an alternative full with all of the brake traces in place.

1648837625 400 MORE CADILLAC PROJECT

 The 07 subframe was put aside simply encase it’d want to return in if the inventory 05 doesn’t work out.

1648837625 891 MORE CADILLAC PROJECT

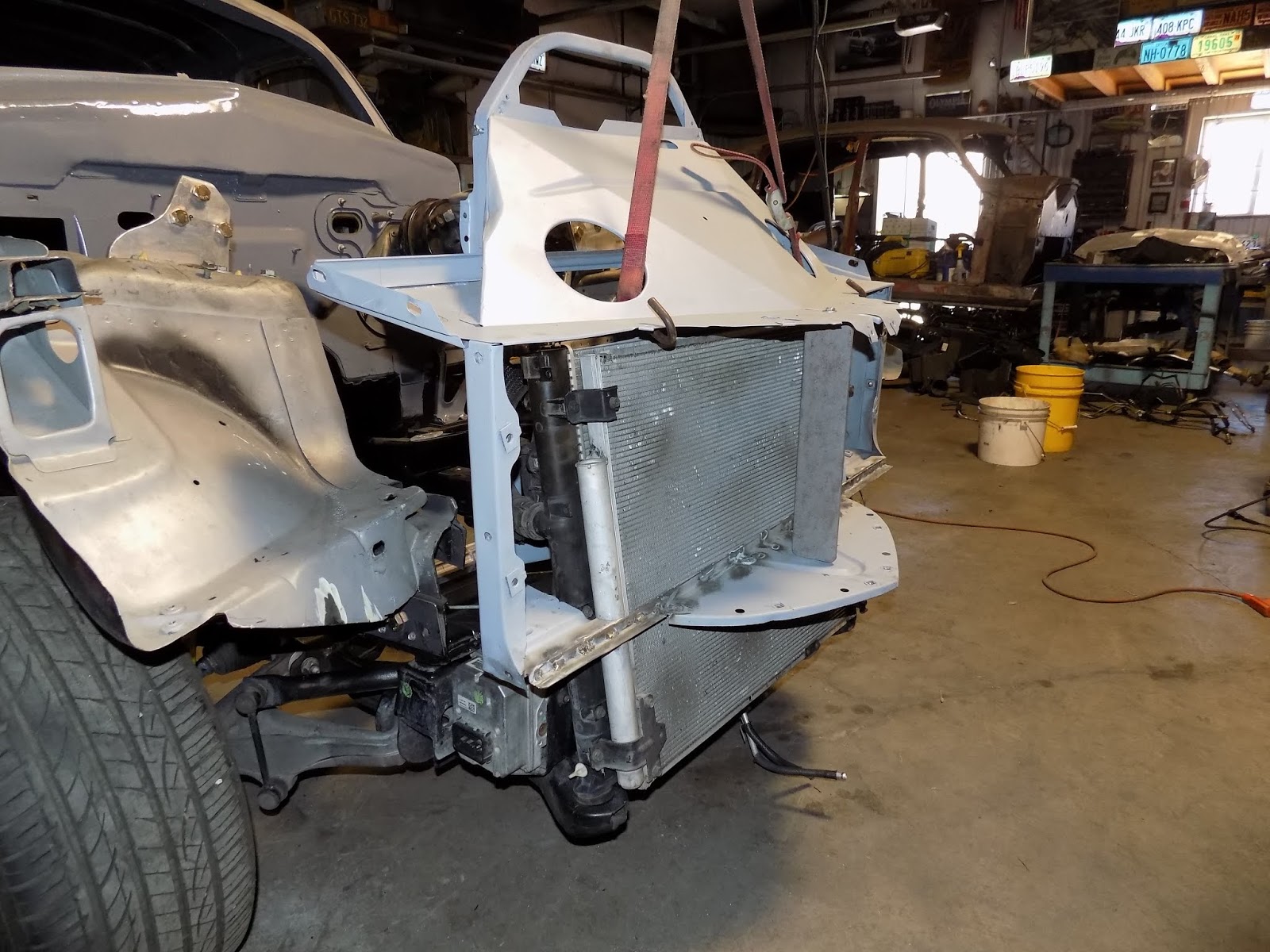

 The 05 radiator meeting was set in place and the 41 entrance help meeting bolted in. I had beforehand moved the radiator again 4″to clear the grill help and it now wanted to be moved again to the inventory place.

1648837625 633 MORE CADILLAC PROJECT

 There was about 3″ of steel and house simply behind the grill help & in entrance of the condenser that needed to be minimize away to make the inventory arrange work, so I strengthened that space with a heaver steel angle then minimize the sheet steel for clearance.

1648837625 247 MORE CADILLAC PROJECT

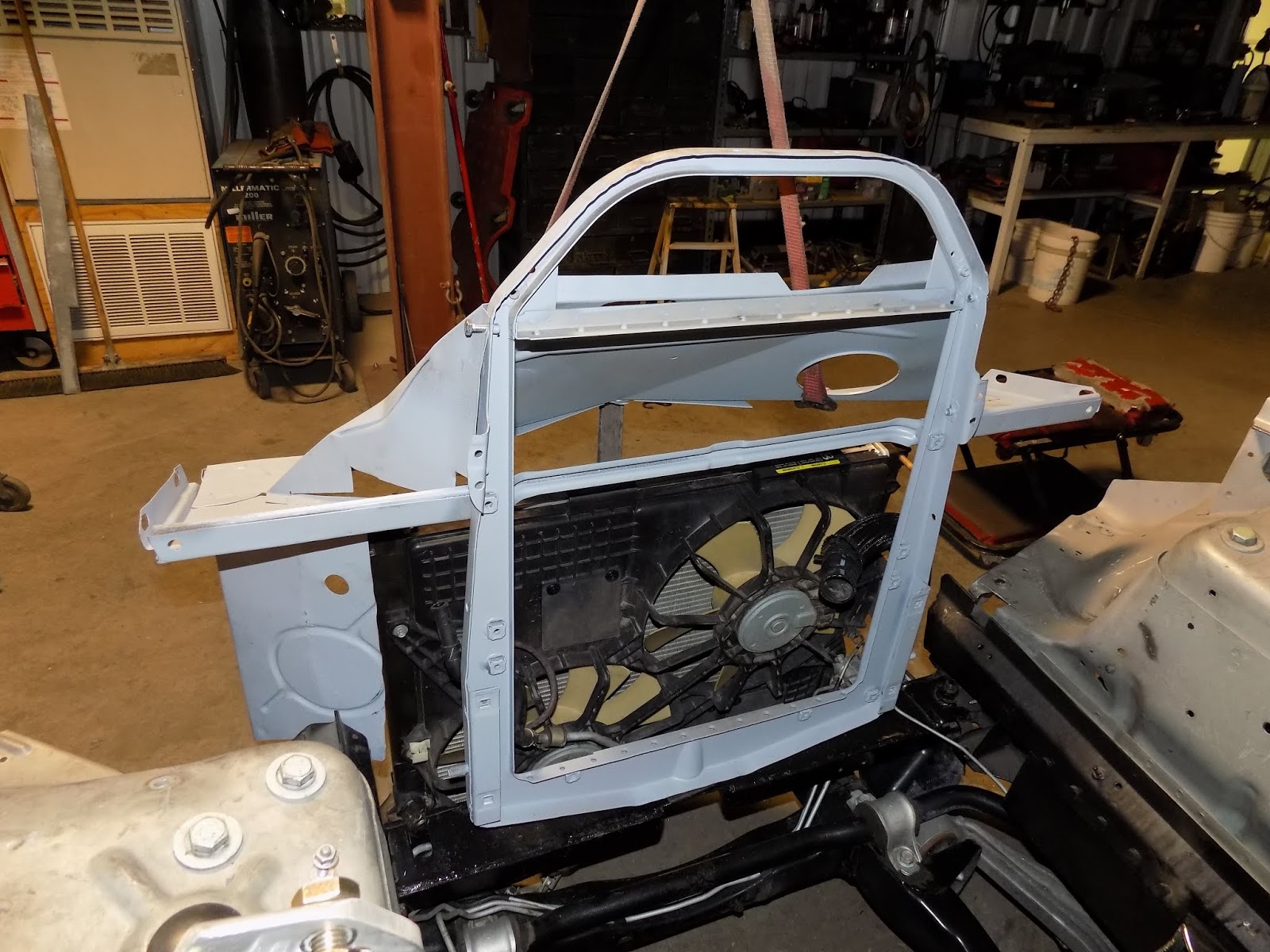

 Right here you may see the brand new entrance cross member and the 41 principal help for the entrance fenders and grill with the inventory 05 radiator, condenser and fan meeting in place that also leaves loads of room in entrance of the engine.

1648837625 42 MORE CADILLAC PROJECT

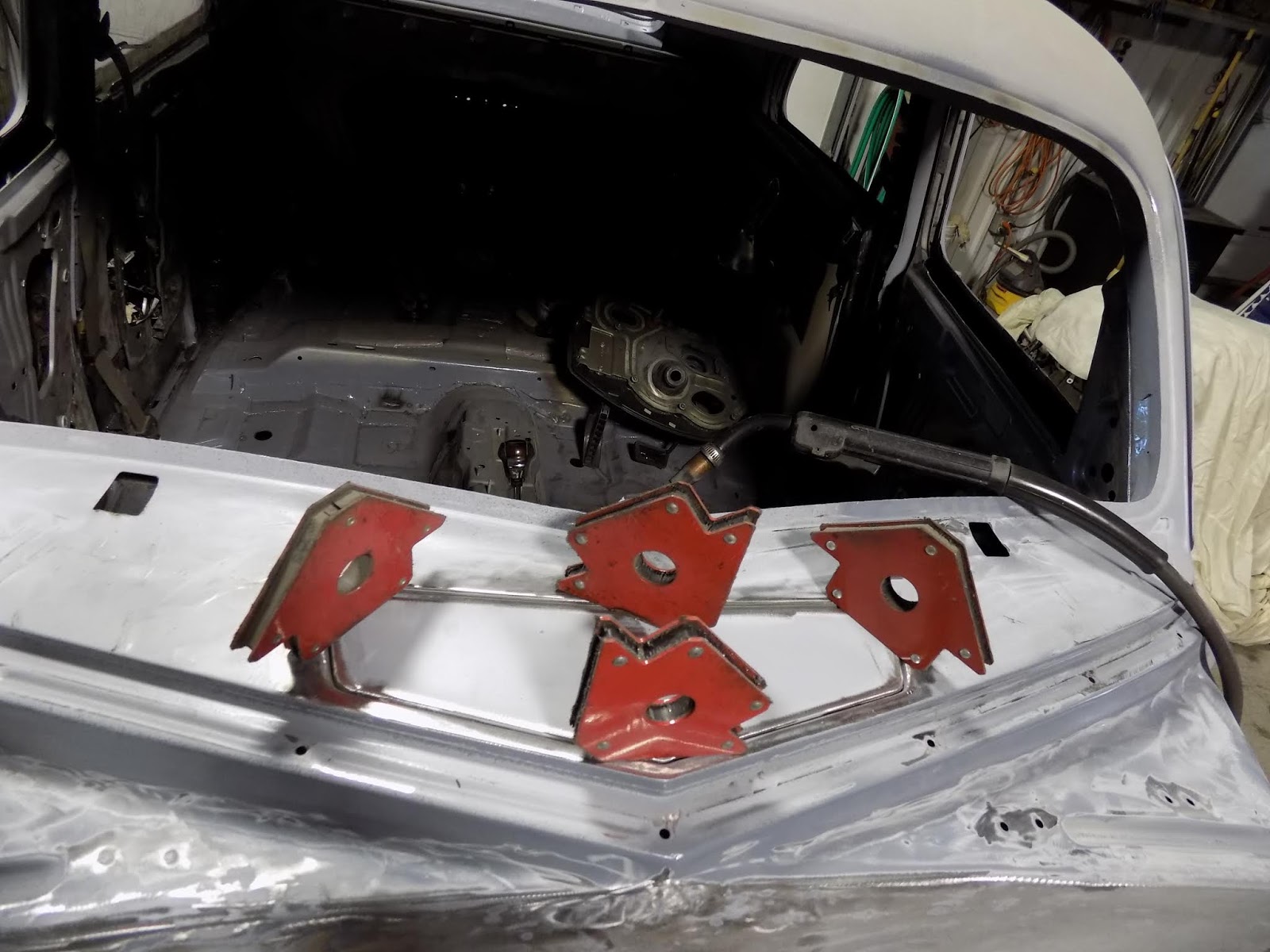

 I needed to complete the hearth wall to start out placing the everlasting components in place and made the choice to not use the cowl vent. The below sprint brackets had been eliminated and the vent minimize down then leveled in place with magnets.

1648837626 126 MORE CADILLAC PROJECT

 I took my time welding it in skipping round to totally different areas to forestall warping.

1648837626 242 MORE CADILLAC PROJECT

 I’ll use physique filler to complete smoothing the world out then block sand.

1648837626 252 MORE CADILLAC PROJECT

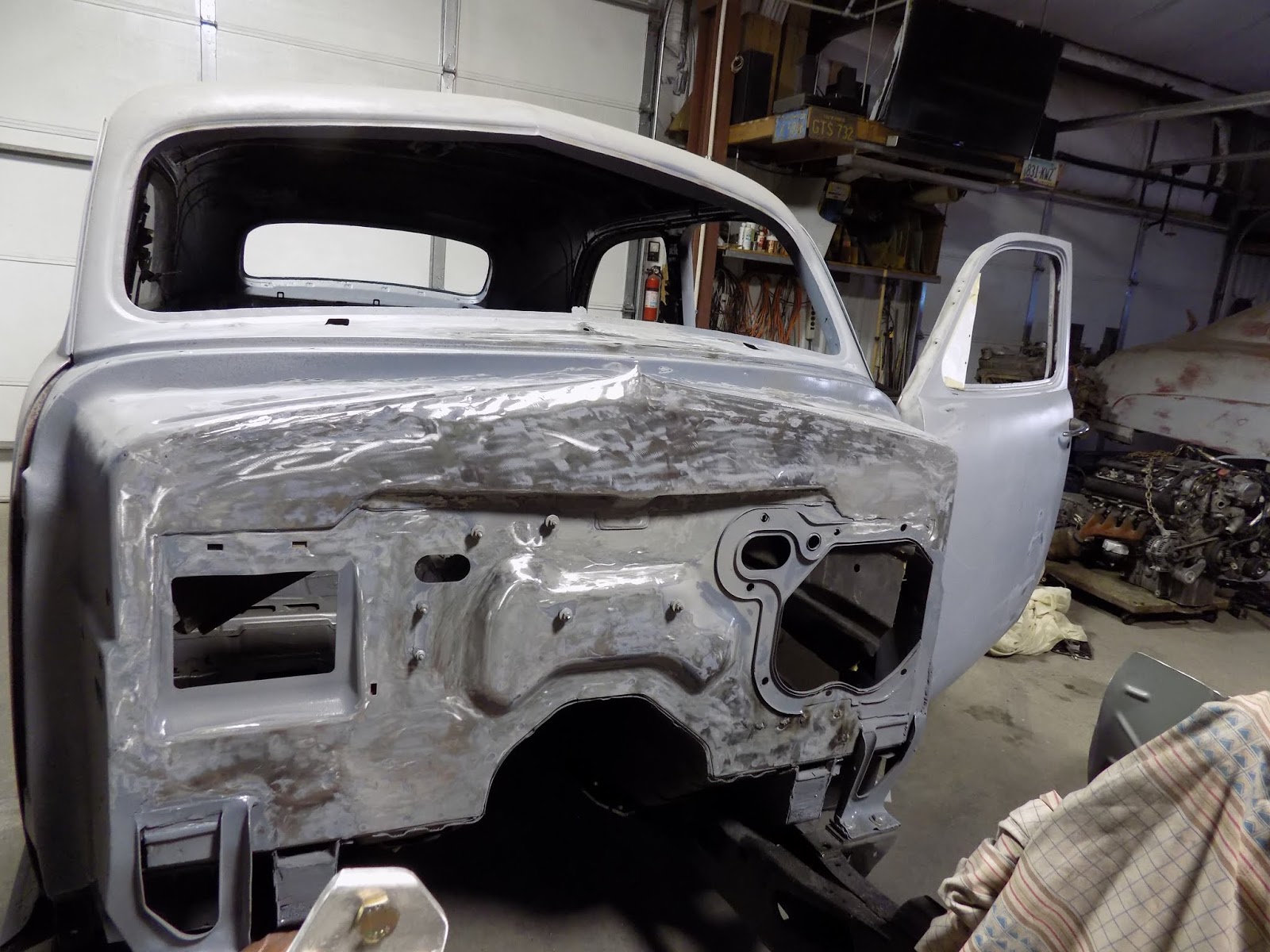

 The remainder of the hearth was sanded and shall be crammed in preparation for end paint on the underside 2/3rds leaving the highest 1/third in prime for paint when the automotive is painted.

1648837626 471 MORE CADILLAC PROJECT

This can be a construct as you go venture so I’ll see what I have to do subsequent when the time comes.
