The 41 / 07 Cadillac

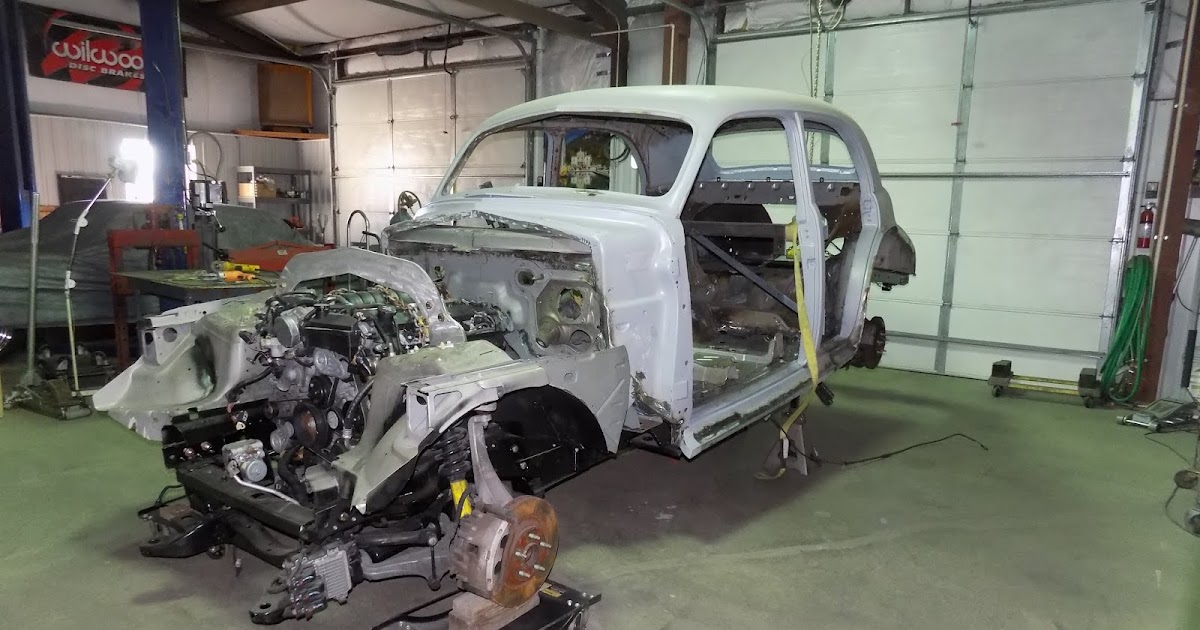

The 41 Cadillac is beginning to appear like an entire automobile now that the ground pans and fireplace wall are welded in place. It has taken 10 days of labor to make the ground pan extension plates and weld them in place.
The engine aspect of the 07 fireplace wall is flush with the unique 41 and welded in place.

The 41 07 Cadillac

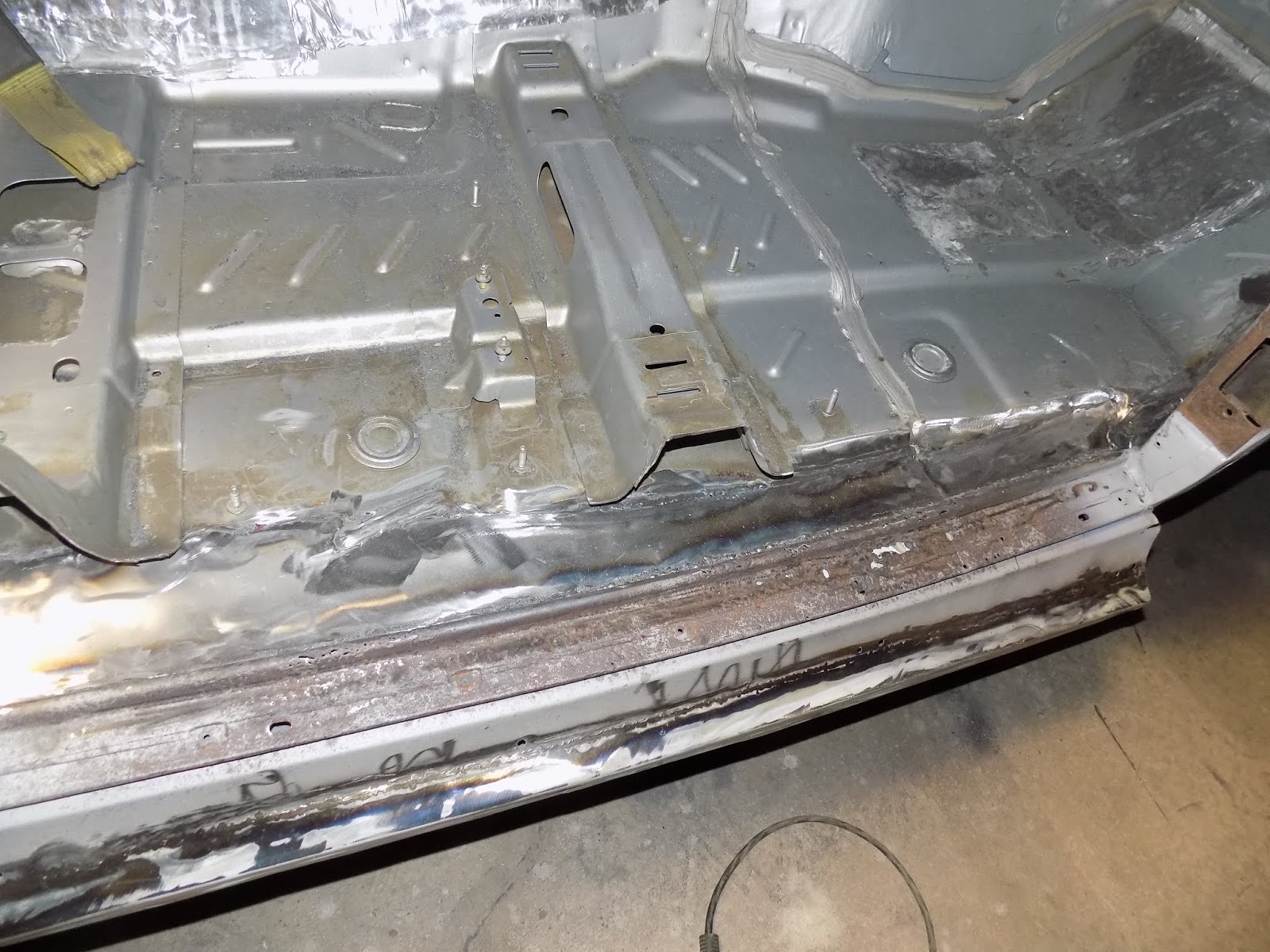

 That is the finished entrance passenger aspect 07 ground pan to 41 physique. The door sills above the rocker panels are nonetheless rusted via however I needed to retain the door cease the place the ground pan meets the highest of the rocker that will likely be lined by the scuff plates.

1648860440 307 The 41 07 Cadillac

 Passenger aspect fireplace wall the place the 07 air consumption unit will return in and the A/C duct unit bolts in.

1648860440 242 The 41 07 Cadillac

 This is without doubt one of the a number of plates that I made with a variety of angles and curves to suit 07 to 41.

1648860440 898 The 41 07 Cadillac

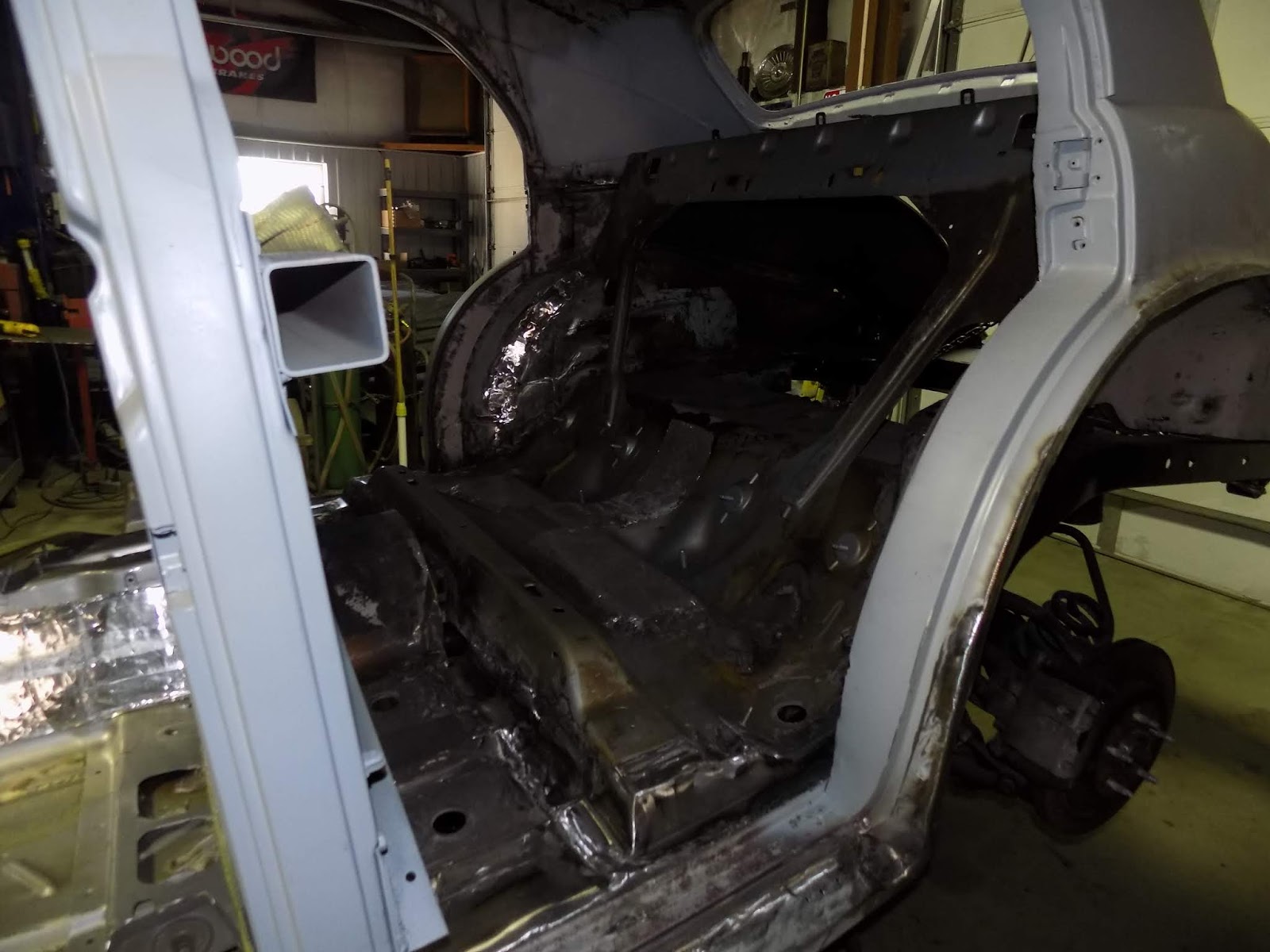

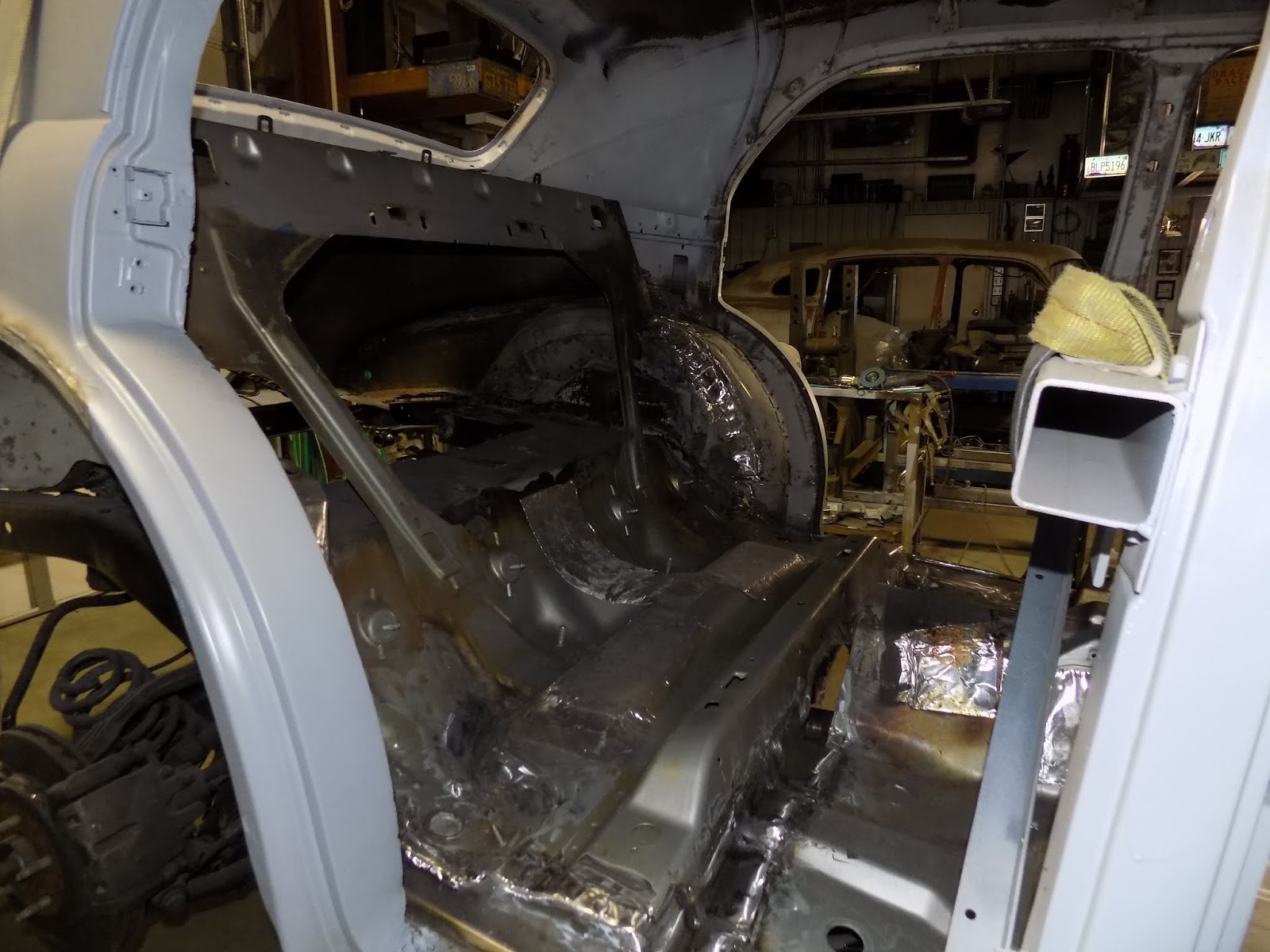

 Passenger aspect rear with all of the extension plates in place. Be aware the drive line middle hump has been left unfinished till I match the drive shaft to the rear finish meeting.

1648860440 559 The 41 07 Cadillac

 Driver aspect rear earlier than extension plates.

1648860441 355 The 41 07 Cadillac

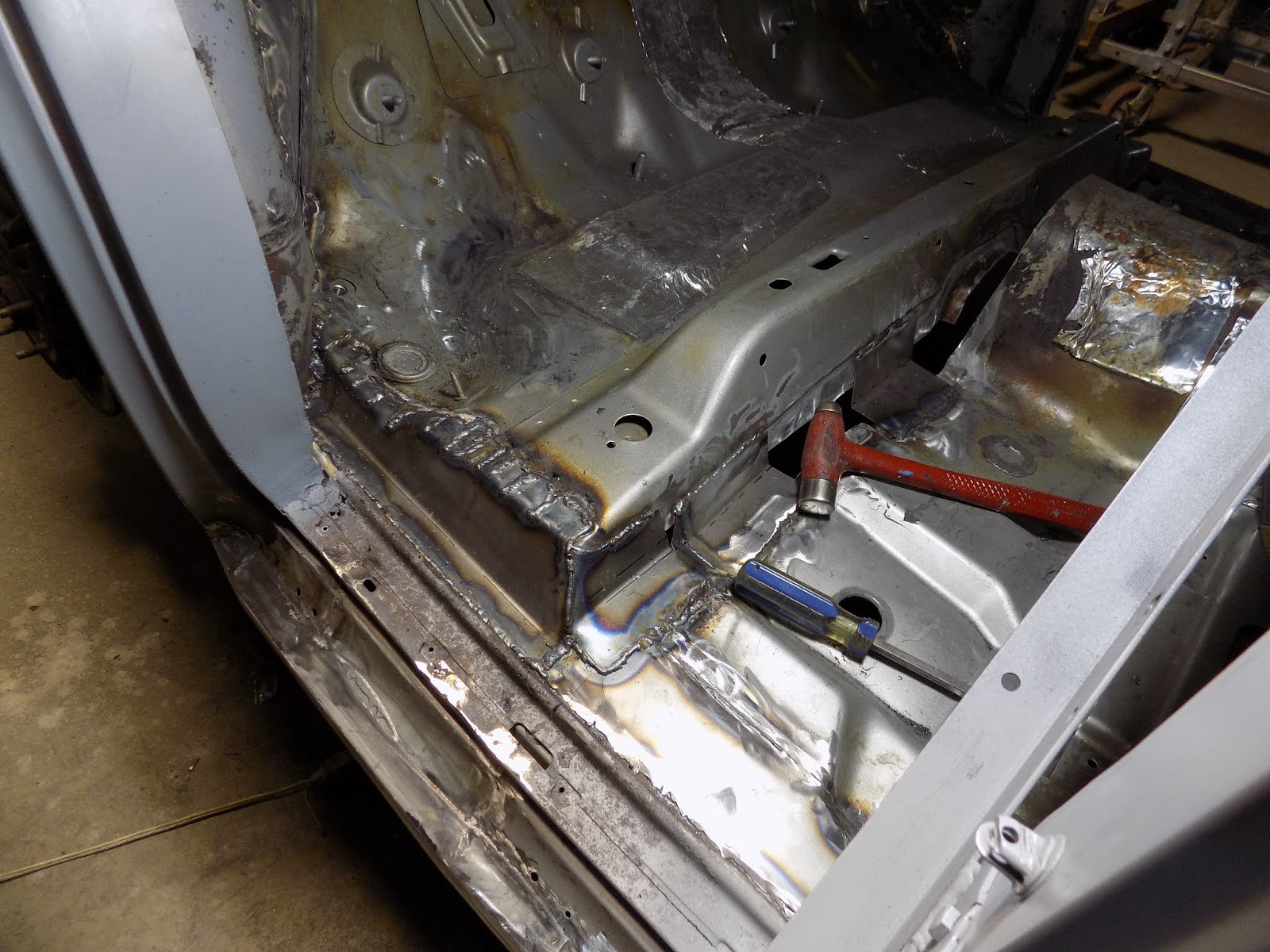

 Drivers aspect after plates are in place.

1648860441 406 The 41 07 Cadillac

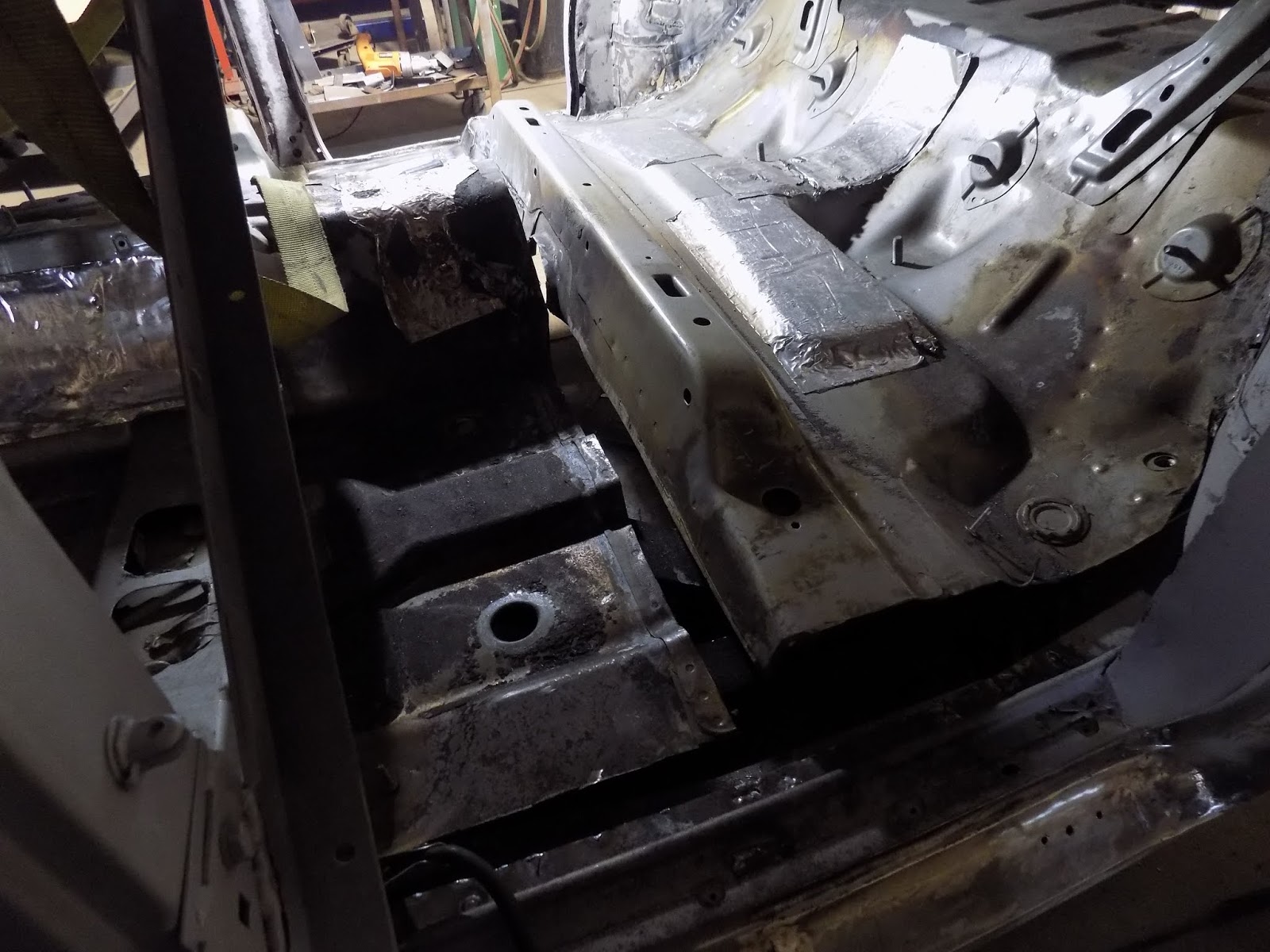

 Drivers aspect entrance full. I’ll depart the middle bracing in place to carry the physique off the body to complete the underside of the ground pans.

1648860441 96 The 41 07 Cadillac
1648860441 152 The 41 07 Cadillac

The above image is the drivers aspect fireplace wall with the 07 steering column, energy brake and fundamental wiring harness help bracket bolted in place.

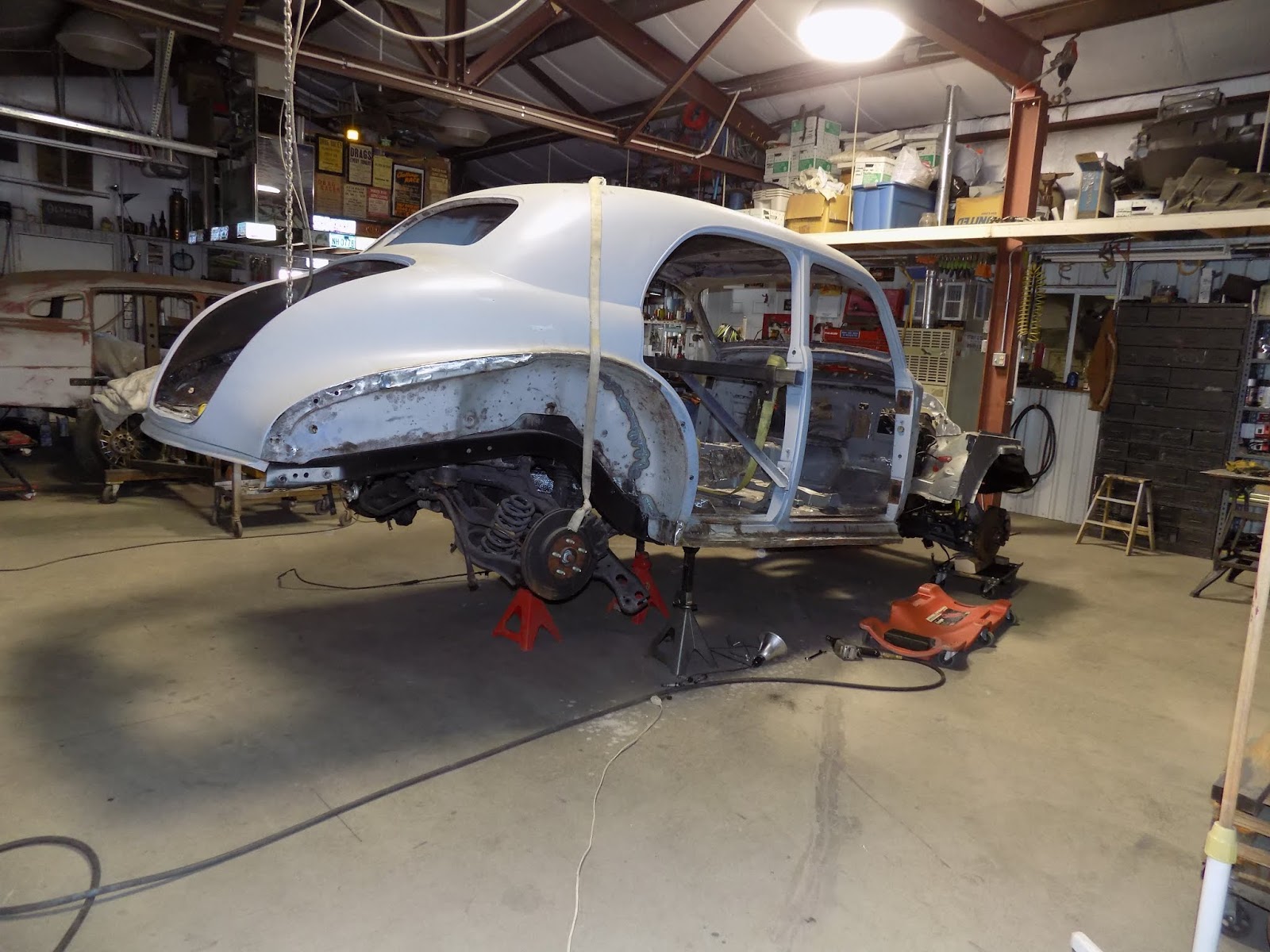

The automobile is up on stands in order that I can bolt the drive shaft in place and make the brand new middle service help bracket and decide how for much longer the drive shaft have to be.

1648860442 910 The 41 07 Cadillac
