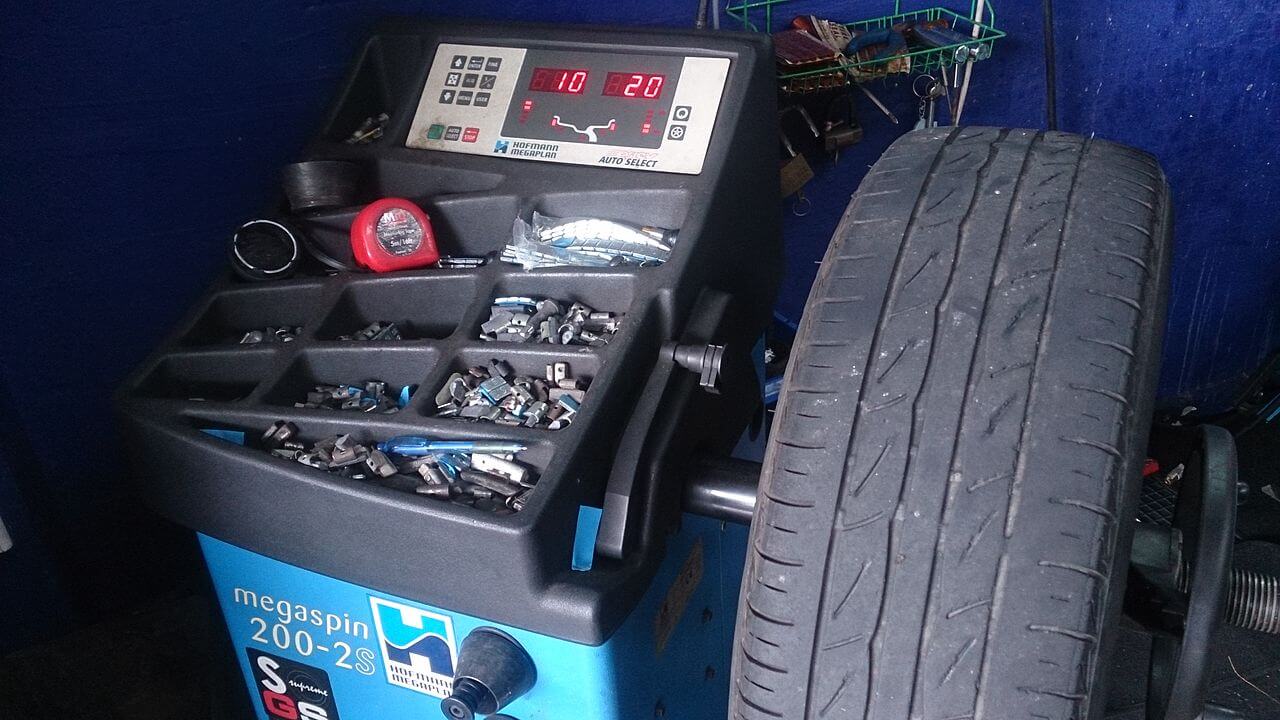

A common wheel balancing machine.
Appears to be like acquainted, doesn’t it? That is the most typical wheel balancing approach that you can see in Malaysia aftermarket workshop!

As with all issues in life, stability is vital… Even the load of your automobile wheels too!

For those who really feel that your automobile is shaking when driving above 120 km/h, or perhaps you’re feeling vibration by the steering wheel, you may wish to think about getting your wheels balanced.

For those who’re unfamiliar with wheel balancing, fret not. This matter will let you know all the pieces from A to Z about wheel balancing.

Table of Contents

What’s Wheel Balancing?

Wheels are by no means precisely the identical weight throughout. Wheel balancing is the act of balancing the load distribution of the tyre and wheel meeting in order that it rolls evenly and easily. That is not to be confused with wheel alignment, which is an adjustment on the car’s suspension with the intention to place your wheel in another way, however it doesn’t alter the load distribution of the wheel itself.

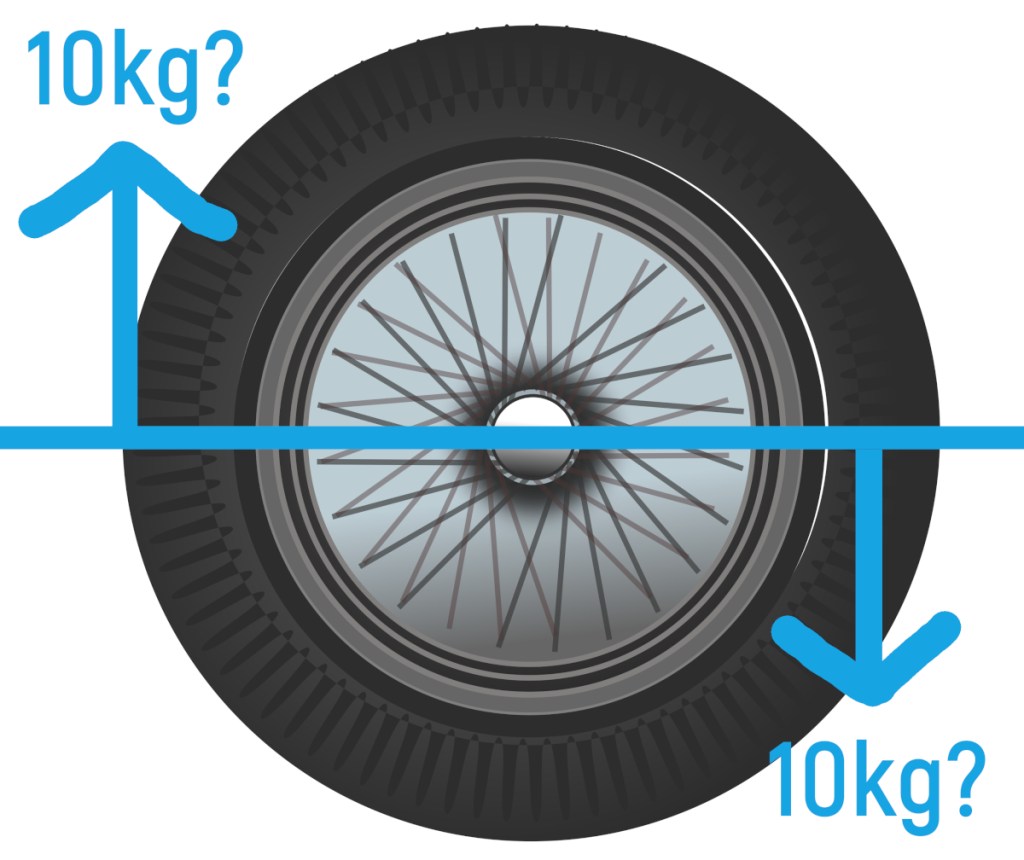

In the simplest sense, the top half of the tyre should match the bottom half of the tyre in terms of weight. The same goes for the left and right.
Wheel stability is concerning the weight stability. Is the highest and backside half of the wheel the identical weight? What concerning the left and proper?

Why does this matter? Let’s discover that with one thing that we will all relate to. Think about that you’re carrying a 10kg of groceries along with your left hand. As a result of it’s so heavy on one facet, you’ll begin to discover that your physique tilts in the direction of the heavier facet to compensate for the load distribution. If it adjustments the best way you stroll, it might undoubtedly have an effect on the best way tyres roll.

Now how did this occur? Wheels don’t have to hold groceries bag however loads of issues can go incorrect. Simply to call a couple of…

  • All rims solely have one valve stem gap (the outlet we use to fill our tyres with air) and that takes away a tiny quantity of weight from that facet of the rim.
  • Tyres can’t be manufactured to completely spherical form, and that causes the load distribution to be uneven.
  • Relying on numerous components (how we drive, street situation, wheel alignment and so forth and so forth), tyres will put on out erratically, inflicting one a part of the wheel to lose extra weight then the opposite.

These are minor variations and are principally invisible to the bare eye, however it should trigger the tyre to roll erratically. With simply 50g of distinction and sufficient pace, it might begin to present up as vibrations within the automobile, inflicting irregular and damaging put on to your tyres.

How are Wheel Balancing carried out?

The core essence of all wheel balancing is to seek out out in case your tyre is imbalance, the place is the imbalances, and the way a lot counterweights we have to put to make it balanced.

That’s the entire thought. However the million greenback query is how?

There are 3 ways you may get your tyres balanced, specifically (i) Static Balancing, (ii) Dynamic Balancing, and (iii) Highway Drive Balancing. Don’t fear, it’s not as difficult because it sounds. We promise.

Static Balancing

Static balancing is the act of balancing the middle of gravity of your wheel round its axis of rotation. It’s a single-plane balancing the place you might be solely involved concerning the vertical imbalances. When out of stability, it has the capability to make your tyre vibrate up and down.

Okay, we’re not attempting to attain an engineering diploma right here.

Let’s simply say that static stability signifies that you solely care whether or not the highest half of your tyre is equally heavy as the underside half of the tyre. If the highest half is heavier, then it should rotate downwards till the heavier facet is on the backside. Now, all it is advisable to do is add counterweight on the lighter a part of your wheels till the tyre learns the best way to stay stationary no matter its place.

DriveMag Riders exhibiting the way it’s carried out, even with solely a vice!

As you may see, it’s a way that’s fairly straight ahead, low cost and simple to execute . Nonetheless, this technique of balancing is sort of out of date and you shouldn’t depend on this type of balancing on your automobile. It was useful for older, narrower tyres however fashionable tyres which might be wider than 10cm wants… *drum rolls* dynamic balancing.

Dynamic Balancing

Dynamic balancing is a dual-plane balancing, the place you might be involved with the vertical AND horizontal imbalances. It’s the wrongdoer that makes your tyre shimmy backward and forward.

In layman’s time period, dynamic stability signifies that you now care not solely whether or not the highest half of your tyre is equally heavy as the underside half, you additionally care whether or not the left half is equally heavy as the correct half.

Modern-day tyres have gotten wider and that is the explanation why static balancing is changing into out of date. If you concentrate on it… The broader your tyre, the extra “meat” it has on the left and proper and the extra alternative for it to turn out to be imbalance. Due to this fact, the extra necessary dynamic balancing turns into.

To repair dynamic imbalances, you may think about getting an off-car dynamic spin balancing. That is the most typical type of wheel balancing approach you can see in Malaysia’s aftermarket workshop (as of yr 2019). All it is advisable to do is take away the tyre, safe it safely onto the balancing machine, key within the dimensions of your wheel, and let the machine work it’s magic.

Conrad’s Tire Categorical & Complete Automotive Care holding it clear and actual. Starting from 2:04, they’ve demonstrated precisely how a dynamic wheel balancing would have been carried out in a Malaysian workshop.

The machine will spin your tyre as much as 140km/h to check the dynamic stability of your tyre. As a rule of thumb, the imbalances are to not exceed 0.5% of the load of your tyre. Then, the machine will to let you know precisely the place it is advisable to put the weights on the tyre and the way a lot weight it is advisable to appropriate the imbalances. It’s fairly magical actually.

As soon as the weights have been utilized, the mechanic will often check it yet another time to guarantee that all the pieces is in good working situation.

Highway Drive Balancing

Highway power balancing is just like the premium fine-dining possibility on the earth of wheel balancing. It’s primarily utilized in authentic gear manufacturing facility. However not a lot within the aftermarket. Along with simply spinning the tyres, it additionally presses a big curler at 500kg ~ 600kg of strain in opposition to the tyre. This helps to simulate the load of the car on the tyres in an actual driving scenario. Have a look!

Very informative video that brilliantly condensed all the pieces it is advisable to learn about street power variation into a brief 2 minute video.

Now simply why do we’d like that?

All tyres have some kind of variation within the sidewall stiffness due to the best way they’re manufactured. You may think about having a number of springs that extends from the centre of your tyre rim to the tyre treads in a circle. When the stiffer spring is in touch with the street, the tyre deforms lesser as a result of the stiffer spring is ready to face up to extra power. For sure that the weaker spring will deform extra.

The tip consequence?

Your automobile wheel is not spherical if you find yourself driving, although the automobile wheel is bodily and completely spherical if you take away it out of your automobile. I like to consider it like an egg. Regardless of how effectively you may stability the load of the egg, it’s nonetheless an egg. It’s oval in form and can roll like an oval egg. That’s not how we would like our automobile wheel to roll.

That being stated, street power balancing is the cream of the crop. Most of us received’t want this except you might be sporting a low profile, thinner tyres. It’s because the gap from the rim to the tyre is smaller and stiffer, which can amplify the imperfections throughout the tyres. However if you’d like the very best, undoubtedly think about street power balancing.

The Backside Line

And, that’s it! You are actually an knowledgeable in wheel balancing. We’ve mentioned what’s wheel balancing, why do you want it and a few of the widespread wheel balancing strategies on the market you can get.

We hope that you just discover these supplies useful and if there’s something you’d like so as to add, be happy to contribute to the article by sharing your private experiences on wheel balancing. You recognize we at all times love to listen to wheel balancing story, so why not share it with the world!

Anyway, thanks for testing D S Auto’s weblog. Subsequent time in case your automobile is shaking, think about getting your self some wheel balancing motion.

Till then, drive protected and drive sensible!
