How Energy Steering Pump works

[ad_1]

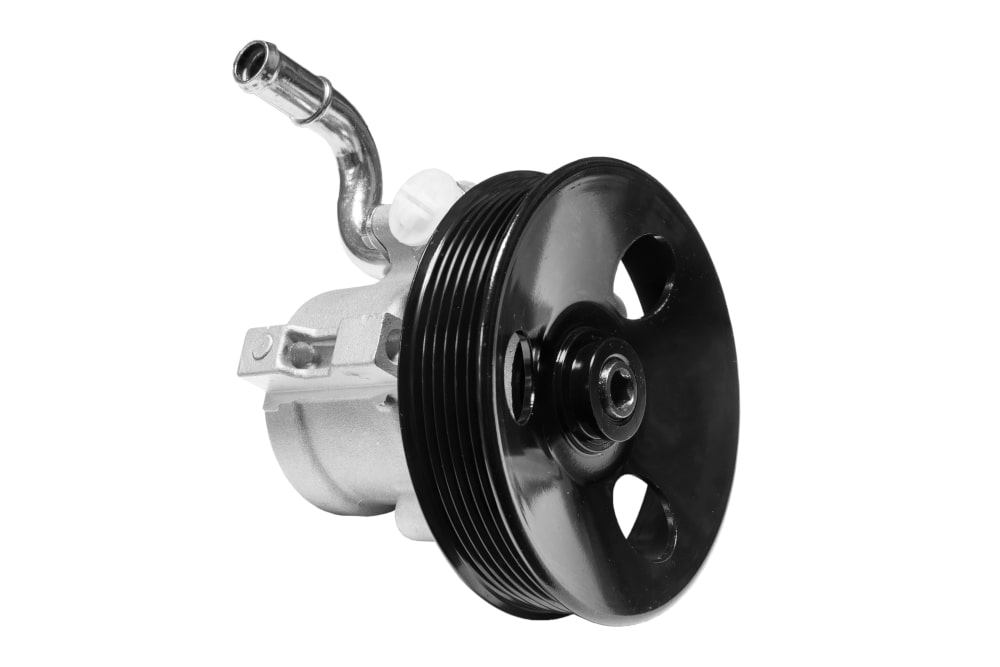

A high definition picture of a hydraulic power steering pump used in car steering system.
That is how a hydraulic energy steering pump seems to be like.

To many, steering pump is just a few magical black field that supposedly in some way makes our driving journeys way more gratifying. However how does an influence steering pump works precisely?

In case you clicked into this text, I wager you wish to know extra than simply the floor. We can assist with that. At present, we’re going to dive deep into the world of mechanics, significantly on the internal workings of a steering pump.

Let’s take it aside, and see the way it works.

Table of Contents

What’s an influence steering pump?

In a hydraulic energy steering system, we’ve the steering rack and the steering pump. These two elements are like Batman and Robin, Thor and Mjolnir, peanut butter and jelly – principally inseparable. They work collectively to offer us the flexibility to steer our automotive, and on the similar time, making it straightforward to take action.

In formal terminology, energy steering pump is a centrifugal vane kind hydraulic pump that pressurizes steering fluid via excessive pace rotations as a way to create a strain differential that interprets into “energy help” to your automotive’s steering system.

That’s means too geeky for my liking.

Right here’s my take.

It’s basically only a water pump, besides with steering fluid. It spins like loopy, pressurizes steering fluid like loopy after which ship them to the remainder of the steering system in order that we are able to steer like loopy.

Usually talking, steering rack offers us the precise trajectory modifications on our automotive tyres, that means the flexibility to steer our automotive. Alternatively, steering pump is the one answerable for making the steering wheel really feel “mild” and simple to show after we steer.

The steering pump has the scale of a few coconut, and you may normally discover it hooked up subsequent to your automotive’s engine. If you wish to take a look, simply observe alongside the engine belt and you’ll ultimately see it.

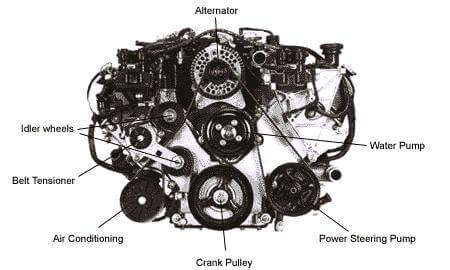

You can always find the power steering pump located close to the engine. Why? Because it runs on the engine belt.
Energy steering pump is all the time positioned near our automotive engine.

How energy steering pump works?

Though energy steering pump is metaphorically generally known as the “coronary heart” of our energy steering system, it’s only a drop of water within the ocean. There are a myriad of different mechanisms surrounding and supporting it in order that the entire system ticks. With that being stated, it could actually get very sophisticated very quick, particularly if one is unfamiliar with the energy steering system as an entire.

In that spirit, we’ve simplified “how energy steering pump works” into three sections to ease you thru the method. These sections are (i) earlier than steering pump, (ii) inside steering pump, and (iii) after steering pump.

Earlier than Steering Pump

Let’s begin from someplace we’re all accustomed to, the steering fluid reservoir.

In case you open up your automotive hood, you can see a (normally) yellow-ish container that has the phrase “energy steering fluid” written on the cap. It’s the container the place we pour our steering fluid into.

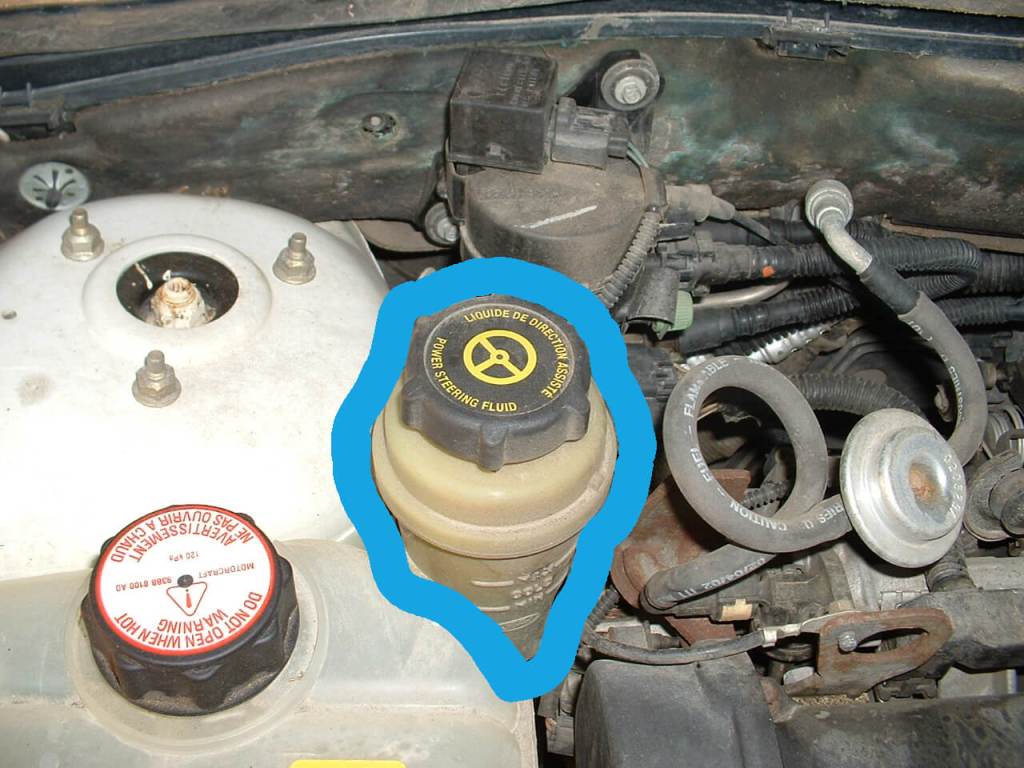

If you lift your car hood, you should be able to find this yellow container that has the word "Power Steering Fluid", "MIN" and "MAX" embedded on it.
Steering fluid reservoir is normally this yellow wanting container with the phrase “energy steering fluid” written on the cap.

It’s nothing fancy. Similar to how we’ve a petroleum tank for our petrol, we’ve an influence steering fluid tank for our energy steering fluid.

The only real goal of this tank is simply to carry the steering fluid and provides them to the steering pump via a set of rubber hoses. When we’re not utilizing the fluid, it rests within the reservoir. Once we want the steering fluid, it will get sucked out of this reservoir into wherever it must go.

Because the steering fluid flows via the rubber hoses, it reaches the steering pump.

Now, we have to get the steering pump spinning first. With the intention to crank it, we’d like a steady provide of energy going to the pump, and that comes from none aside from the automotive engine itself.

Our automotive engine produces energy by igniting petrol-air combination with electrical sparks. When the petrol-air combination explodes contained in the engine, it produces power that pushes the engine piston up and down. And since our engine piston is mechanically related to the crankshaft, the crankshaft harvests these power and the crankshaft itself begins to rotate.

Lastly, we put an engine belt round this rotating crankshaft, and connects it firmly to the pulley on the steering pump. Once we begin our automotive, the engine belt pulls onto the steering pump pulley and the steering pump begins spinning.

Lo and behold, the steering pump is now working.

Inside Steering Pump

At this stage, we received the steering pump spinning, and the steering fluid available to the pump. The following step, is to pressurize the steering fluid.

Right here comes the thrilling half. We are going to now take a peek on the core of a steering pump to assist perceive how this majestic system creates excessive strain fluid.

The core of our steering pump comprises of solid metal blocks, machined to precision to form the housing, rotor, and vane.

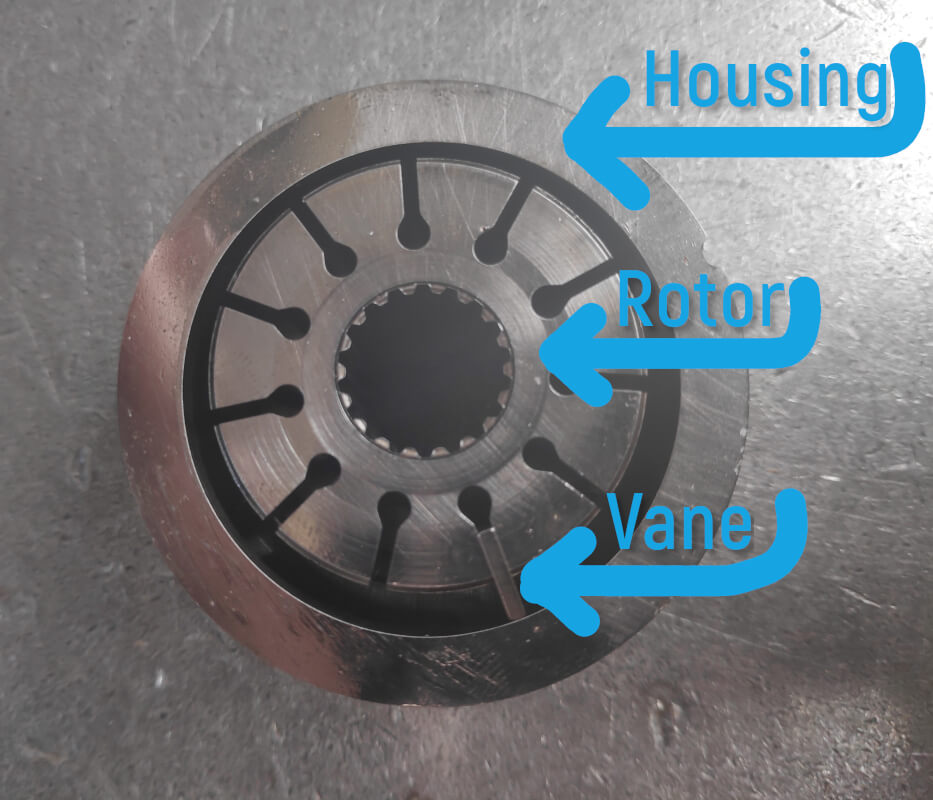

Once we’re wanting on the core of the steering pump, these are the three essential elements that that you must give attention to.

The image above is what you’ll usually see inside an influence steering pump. Granted, not all steering pump seems to be like this, and there are different intricacies right here and there that we took out, however let’s maintain it actual easy right here. There are solely 3 distinct gadgets that you really want to concentrate to, particularly the (i) housing, (ii) rotor, and (iii) vane.

The rotor is that this stable steel block that has solely two distinct options: it has a hole gap within the center, after which some cavities on the outside. Each serve a distinct goal.

The middle gap connects on to the steering pump pulley via one other cylindrical steel. So should you can think about, when the steering pump pulley is rotating, the rotor itself will consequently rotates as nicely, and therefore the title “rotor”.

Keep in mind the cavities on the outside? These tiny pocket of holes are the place the vanes will rests. They act as a railway for the vanes to be transferring out and in. When the steering pump just isn’t rotating, they rests nearer to the middle (see left image beneath). When the rotor rotates, all of the vanes get pushed outward and in opposition to the pump housing (see proper image beneath).

The vanes are movable within the cavity in the rotor.

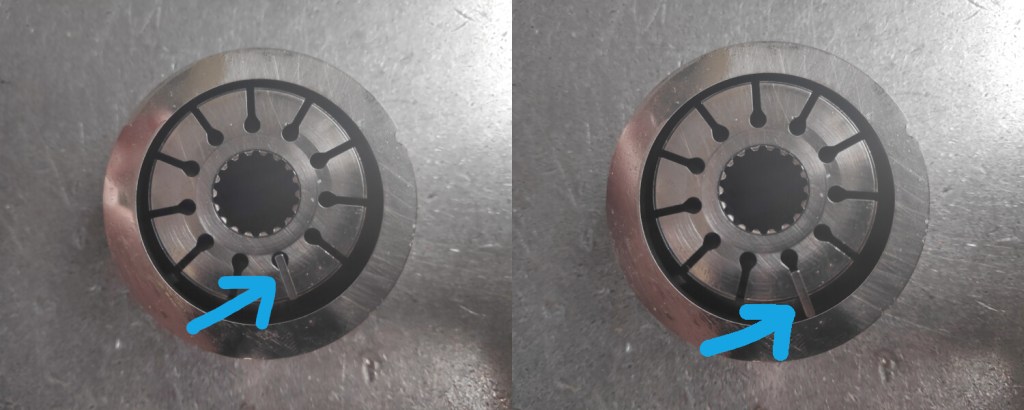

Image on the left exhibits a retracted vane, whereas image on the best exhibits the vane in an outward place.

Why?

Effectively, it’s like enjoying with a carousel on the child’s playground. You will discover a snug place to sit down on the carousel, after which get a pal to spin you want loopy! The quicker he spins, the extra you’ll really feel like you’re being thrown outward. If he spins arduous sufficient, chances are you’ll simply find yourself amongst the mud!

A carousel is a circular platform that you can spin around. If you are standing on the platform, you will feel the centrifugal force trying to toss you outward.
Good ol’ days. This was once cool however we may hardly discover these anymore in our present smartphone period.

That is the centrifugal drive at play.

Equally within the energy steering pump, all of the vanes shall be pushed outwards in opposition to the pump housing. However that’s not all. Think about the identical centrifugal drive, however with engine RPM, which is usually measured within the hundreds per minute. The vanes are pushed so strongly in opposition to the pump housing, that it begins to type tiny chambers which traps the steering fluid. In our instance, there are precisely 11 of the tiny chambers.

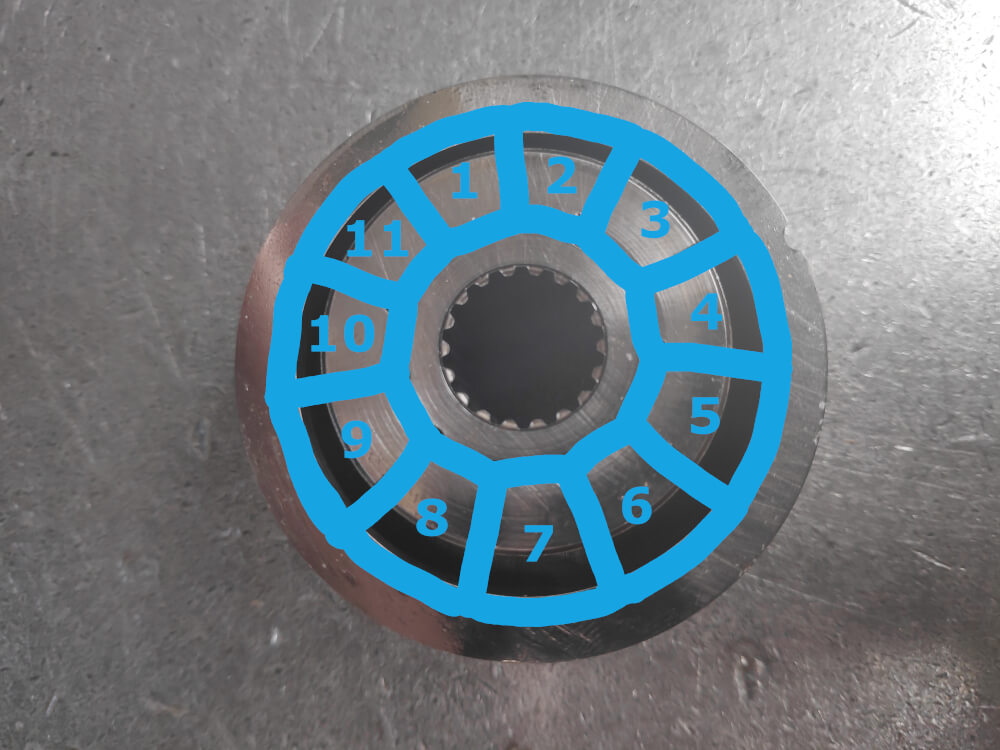

When the steering pump is spinning, all vanes will be pushed outward against the pump housing. This creates chambers to carry the power steering fluid around.
When all of the vanes are pushed outwards, they type tiny pockets to hold the ability steering fluid round.

Because the rotor rotates in a clockwise vogue, the tiny chambers observe alongside (along with the steering fluid within it!). Chamber No.1 will transfer from it’s authentic place, into Chamber No.2, then Chamber No.3, and so forth and so forth at an unbelievable pace till we swap off the engine.

That is the place the magic occurs. The steering fluid strain begins to extend, not with no cause in fact.

In case you look carefully, the pump housing is not geometrically spherical, they’re designed to be oval in form, purposefully. When the rotor is positioned straight on the heart, you’ll discover that the underside a part of the groove is considerably greater than the highest a part of the groove.

An image paint a thousand phrases. Have a look.

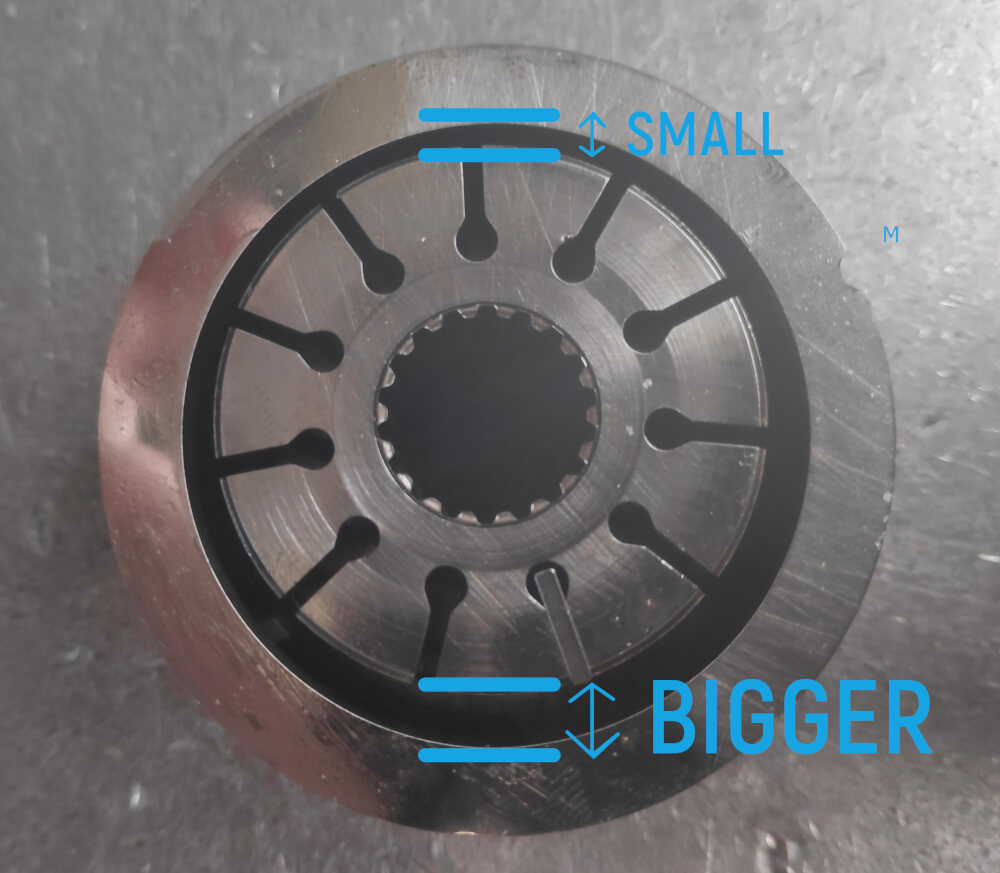

If you squeeze more things into a smaller space, the pressure increases.
This can be a single motion energy steering pump, the place we’ve a low strain space and a excessive strain space.

The variations in quantity just isn’t a design error or manufacturing flaw, it serves a goal, and an important one that’s.

Right here’s why.

When the pump continues to rotate, the steering fluid are carried across the oval groove like a merry-go-round. Due to the eccentric oval form, the steering fluid strikes from a big space, and will get squeezed into an more and more smaller area. If we glance to Physics, we all know that when the realm decreases, strain will increase. Engineers know what’s up. However hey, don’t take my phrase for it, I’ll even show it to you.

Strain = Drive / Space.

Pascal’s Legislation

Consider it like squeezing a balloon full of air.

First, you blow a balloon till a good measurement, you then tie a knot across the openings to seal the air inside. As you squeeze the balloon, the area contained in the balloon reduces. With nowhere to flee, the identical quantity of air will get crammed right into a tighter confinement which will increase the air strain. In case you squeeze it arduous sufficient, it can attain some extent the place the air strain is larger than the energy of the balloon and it lastly bursts.

Air acts similar to every other fluid, which incorporates steering fluid. Given the identical quantity of fluid, once you scale back the realm, the fluid strain will improve. And that’s precisely why they designed the cam ring to be oval as an alternative of an ideal spherical form.

Coming again to how energy steering pump works.

We talked about how these tiny chambers frequently spin the steering fluid right into a tighter area to extend the strain. After that, the excessive strain steering fluid ultimately exits out of the steering pump via the strain management valve.

This leaves behind a void / low strain space within the steering pump, which helps to attract in additional steering fluid from the steering fluid reservoir.

Anyway, these excessive strain steering fluid leaves the steering pump, and into the 2 hydraulic chambers of the steering rack.

After Steering Pump

For individuals who are accustomed to Hydraulic Energy Steering: What it’s and The way it Works, you’ll have an excellent thought of how the story ends. For individuals who don’t, right here’s the way it principally goes down.

The excessive strain steering fluid leaves the steering pump, and into the steering rack. Principally talking, the steering rack is split into two hydraulic chambers, the left and the best facet.

When the steering fluid enters the 2 hydraulic chambers, they’re distributed in a means that one of many hydraulic chamber within the steering rack will get extra steering fluid than the opposite. If the left chamber will get extra fluid, it turns into stronger than the best chamber. And guess what occurs? The steering rack pushes to the best due to the distinction in fluid strain. The reverse is true once you wish to flip to the left.

This pushing movement proper right here, is the ability help. It’s the cause why your steering wheel feels lighter when your automotive has energy steering system.

After that, the steering fluid exits the steering rack via steering hoses and returns again to the steering fluid reservoir.

The entire course of simply repeats itself on and on and on and on till we lastly swap off the engine.

Ending the Closing Lap

And that my buddies… is how an influence steering pump works. It’s lovely, isn’t it?

I sincerely hope that I did justice in dissecting the internal workings of a steering pump and hopefully it helps us higher respect the marvel of engineering that goes into our automotive.

If we’ve missed something within the article, be at liberty to go away a remark down beneath and we’ll add it into the article for positive.

Till then, drive protected and drive sensible!
