What’s a Turbocharger?

Turbocharger gives you wings!
Turbocharger offers you wings!

Turbocharger makes your automotive go considerably quicker in a really quick time.

It really works by channeling exhaust fumes via a turbine earlier than exiting your automotive. When the turbine turns, it sucks in additional air into your automotive engine.

That’s all it does.

So, how does extra air will get you extra energy? To reply that, we have now to take a step again and see how automotive engine works.

Our engine combusts gas to generate energy. The extra gas burned, the extra energy. That’s fairly simple, as a result of including extra gas into the engine is simply as simple as adjusting the throttle to your automotive engine.

Easy, proper? However there’s extra to it.

Air-fuel ratio must be in sure ratio in any other case it would both trigger engine harm or carry out inefficiently. We name this a stoichiometric combination. Usually, we’d like 14.7 elements of air to 1 a part of gas.

So if we enhance the gas consumption, it would upset the ratio. It could grow to be 13 : 1 or 12 : 1 as a result of we have now lesser air to gas ratio now. No matter it’s, we have to enhance the air consumption to get that 14.7 : 1 again in order that the combination turns into stoichiometric once more.

Now, that is the place turbocharger turns out to be useful. It offers further air consumption to the automotive engine.

By burning extra gas and extra air on the similar time, your automotive produces extra energy to ship you skyrocketing ahead.

What makes up a Turbocharger?

Turbocharger may be divided into three elements.

  • Turbine
  • Compressor
  • Centre Hub Rotating Meeting

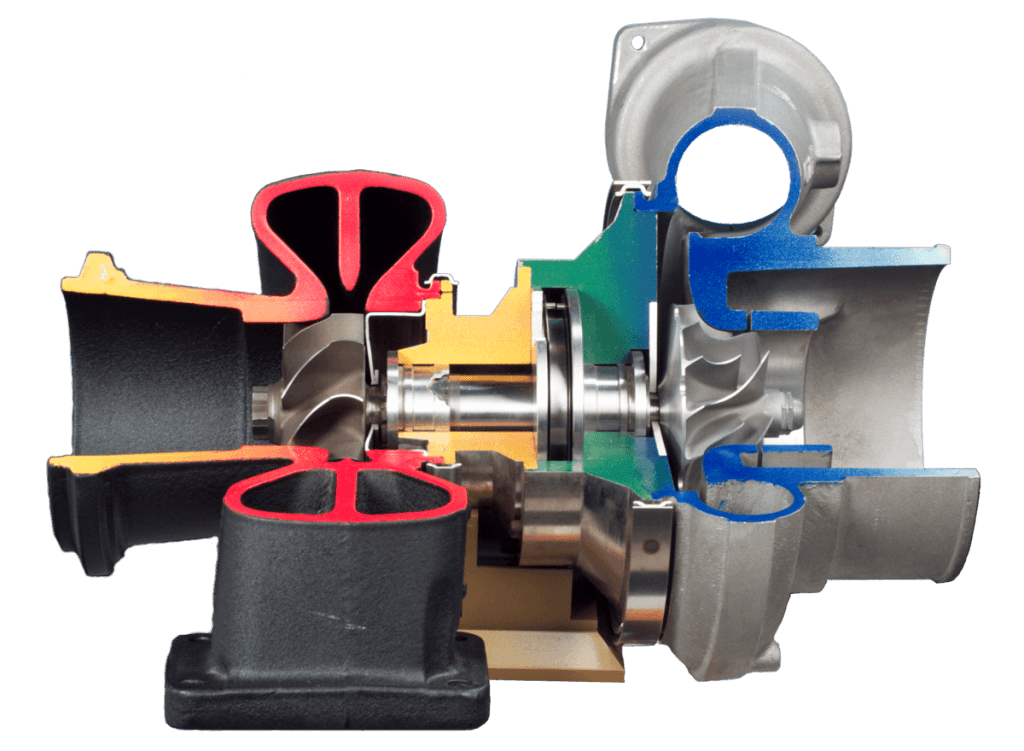

The hot side of a turbocharger is appropriately coloured red, while the cold side of a turbocharger is coloured blue.
The recent facet of a turbocharger is appropriately colored pink, whereas the chilly facet of a turbocharger is colored blue.

The image above did a improbable job illustrating it. The turbine is the pink colour portion; the compressor is the blue colour portion; and the centre hub rotating meeting is the yellow and inexperienced facet.

Half #1 : Turbine

Turbine is provided on to the exhaust manifold of our automotive engine. This facet of the turbocharger is scorching. They are often heated as much as 200 diploma Celsius and therefore, it is usually appropriately known as the “scorching facet”.

The warmth and stress of the exhaust fumes are pressured onto the turbine wheels (the blades) in order that it turns. It’s the identical working precept as a wind turbine.

Turbine are sometimes produced from cast-iron. It additionally has a filter that screens tiny particles and impurities out of the system.

Half #2 : Compressor

Compressor is named the chilly facet.

It’s objective is to attract air into the compressor, compresses them after which ship them into the engine consumption manifold. Sometimes produced from aluminum alloys.

Half #3 : Centre Hub Rotating Meeting

The centre hub rotating meeting homes bearings and shaft that connects the turbine wheels onto the compressor wheels. It’s principally the center man.

It has correct sealings to keep away from exhaust fumes from the turbine facet mixing with the air from the compressor facet.

How turbocharger works?

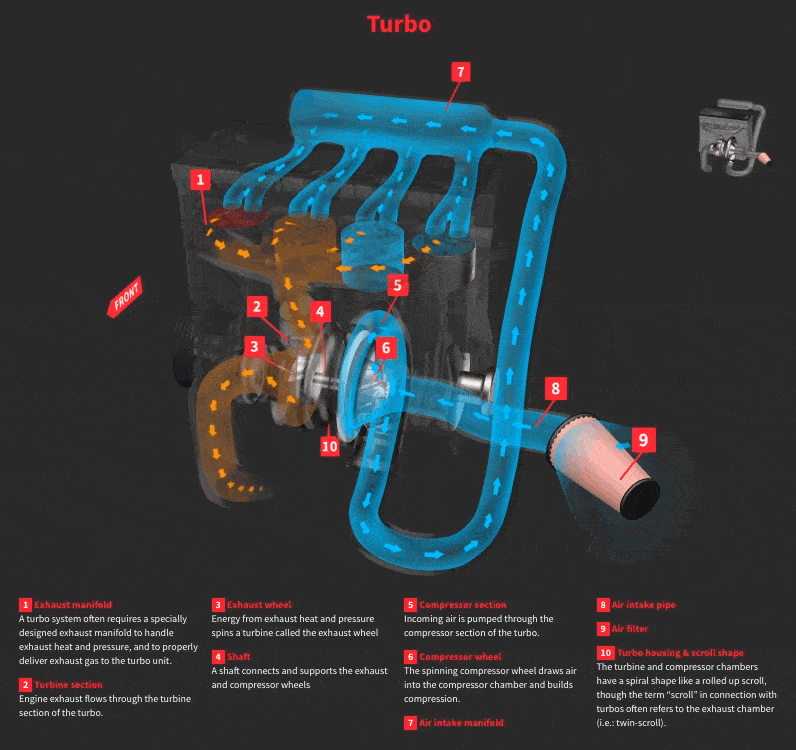

You can clearly see the where and how the hot air (red) and cold air (blue) moves in and out of the car engine and turbocharger. What a great overview!
You’ll be able to clearly see the the place and the way the recent air (pink) and chilly air (blue) strikes out and in of the automotive engine and turbocharger. What an important overview!

It begins from the exhaust manifold of our automotive engine.

As engine combusts the air-fuel combination, it produces by-product that we name exhaust fumes. Regardless of being known as a “by-product”, these exhaust fumes even have plenty of warmth vitality and stress which we will use.

In case you’ve ever unintentionally stood close to an exhaust pipe, you already know what I imply.

So, as a substitute of losing them, we join our turbocharger to the exhaust stream. This fashion, the exhaust fumes are channelled onto the turbine blades of our turbocharger, which turns the turbine blades.

Turbine blades are linked on to the compressor blades via a shaft, discovered contained in the centre hub rotating meeting. When turbine blade turns, the compressor blade turns as properly.

As quickly because the compressor rotates, air contained in the compressor are displaced. This creates a partial vacuum impact with low stress on the compressor facet. This fashion, it attracts in additional air from the encompassing to equalize the stress.

Lastly, the compressor compresses the air, after which sends the compressed air on to the engine consumption manifold.

With extra compressed air, our automotive engine can combusts extra gas, and that gives the additional energy increase to our automotive.

[Bonus] How blowoff valve works?

“However what’s making the gorgeous stututuutuuu sound that’s unique to a turbocharged automotive?”

This deserves a point out by itself. It’s a supplementary element to our turbocharger, designed particularly to stop compressor surge. In layman’s time period, you possibly can consider them as air pressure-regulator.

Compressor surge occurs while you all of a sudden carry your toes off the fuel pedal which causes the throttle to abruptly closes. As a result of the turbine blades are nonetheless spinning from inertia, the final remaining compressed air tries to enter the engine consumption manifold. However, solely to be stopped by a closed throttle.

WIth nowhere else to go, the compressed air flows again into the compressor, which messes with the turbo response and ruins drivability.

That is the place blowoff valve is available in.

The valve is actuated by stress. When the distinction in stress is excessive, it opens as much as launch air into the environment as a substitute of reversing again into the compressor. Because the compressed air exits the valve, it create a really distinctive hissing sounds that individuals go completely loopy for.

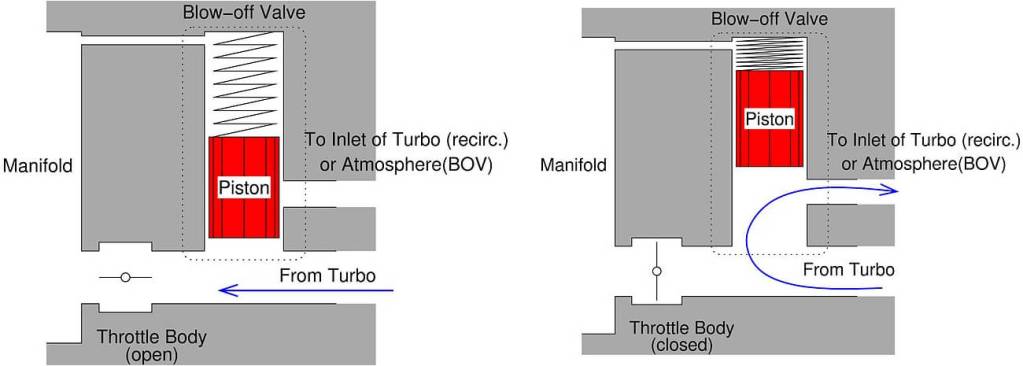

Here's a comparison WITHOUT blowoff valve working (left) and WITH blowoff valve working (right). It helps to relief the pressure.
Right here’s a comparability WITHOUT blowoff valve working (left) and WITH blowoff valve working (proper). It helps to aid the stress.

Individuals like it a lot that some turbocharged automotive house owners would buy and set up the blow off valve purely to get that auditory impact. Some would even go to the extent of modifying the valve exit design to a get louder, and maybe completely different sound.

Right here’s how blowoff valve appears like on your pleasure.

Benefits and downsides of getting turbocharger

Everyone knows that turbochargers are there to fulfill your want for velocity. However, what are a few of the different elements that it is best to take into account earlier than getting your engine turbocharged?

Listed below are some professionals and cons of getting a turbocharger.

Gas Financial system: Financial savings or Sabotaging?

The primary benefit of getting a turbocharger is you get extra energy whereas having the identical measurement of engine. However, producing extra energy equals extra vitality output which suggests your engine will burn extra gas. Subsequently, an engine with a turbocharger isn’t gas environment friendly in that approach.

However, in apply, having an engine with a turbocharger are a lot smaller and lighter than engines with no turbocharger, so a turbocharger offers a greater gas financial system in that facet. Automotive producers can match a a lot smaller engine to the identical automotive. As an alternative of a giant V8 engine, they’ll match a a lot smaller turbocharged V6, or as a substitute of getting a V6, they’ll match a a lot smaller and lighter turbocharged four-cylinder engine. These lighter turbocharged engines may properly save as much as 10% of your gas.

As you possibly can see, this can be a controversial debate.

Some drivers declare that not solely their energy is boosted, however so did their gas financial system. Whereas on the opposite finish of the spectrum, some claims that the gas financial system advantages promised by the turbochargers producer didn’t prove as they’re presupposed to. There was a research achieved in 2013 by Client Stories which came upon that small turbocharged engines truly give worse gas financial system than their common measurement engines.

Whose facet are you on? Tell us within the remark part under!

Greater upkeep price

Many automotive fashions don’t include turbocharged engine. If you wish to turbocharge your engine, be able to fork out a great couple thousand Ringgit Malaysia, with good causes. The automotive workshop must carry your automotive engine, set up the turbocharger, further wiring and tubings.

It’s plenty of work!

Then, there may be the upkeep price as properly. Having a turbocharger in your engine means that you’ve got one other layer of mechanical complexity to your engine. Though, turbochargers are normally very strong and may last as long as 10 years. At one level or one other, you’ll have to change it and which means $$$.

And guess what?

It’s not simply the turbocharger itself, engine parts could have a shorter lifespan too. A turbocharged engine will maintain higher stress and temperature than normal, which damages the elements. Because of this, chances are you’ll end up extra typically at an area automotive workshop.

Distinction between turbocharger and supercharger

Turbocharger and supercharger are very related, however completely different. Right here’s an important video by Engineering Defined explaining and evaluating turbochargers and superchargers.

Throughout your hunt for extra engine energy, chances are you’ll come throughout a factor known as supercharger.

It’s similar to a turbocharger!

When talking about turbocharging and supercharging, individuals point out them in the identical breath. Each of them are capable of present that further energy to your engine. They each create a substantial quantity of increase that may attain as much as 50% extra energy to the engine.

However, there are positively sufficient variations between them that you could have to contemplate earlier than selecting a facet!

Right here’s a fast abstract of their variations.

Take pleasure in!

Turbocharger Supercharger
Powered by exhaust stream Powered by engine
Improves effectivity by using vitality that might in any other case be wasted. Does NOT enhance effectivity as a result of it’s a parasitic load on the engine.
Improve as much as 50% engine energy Improve as much as 50% engine energy
Smog filtering No smog filtering
Turbine spins as much as 150,000 RPM Turbine spins as much as 50,000 RPM
Higher increase at greater engine RPM Higher increase at decrease engine RPM
Signature turbo flutter sound Extra dependable
More durable to take care of Simpler to take care of

The Backside Line

Properly, that sums up the introduction to a turbocharger.

What do you assume?

In case you personal a flowery turbocharged engine, go away a remark down under.

Do you’re keen on your turbocharger? Or do you remorse it? Tell us.

Till then, drive protected and drive good!
