Crew exhibits crowdsourced information from smartphones in automobiles may help monitor structural integrity of bridges

Researchers from the Senseable Metropolis Laboratory at MIT report that crowdsourced information from the smartphones of auto passengers crossing bridges might assist monitor bridge structural integrity. An open-access paper on their demonstration is printed within the Nature journal Communications Engineering.

Monitoring and managing the structural well being of bridges requires costly specialised sensor networks. Previously decade, researchers predicted that low cost ubiquitous cellular sensors would revolutionize infrastructure upkeep; but extracting helpful info within the discipline with ample precision stays difficult. Herein we report the correct willpower of essential bodily properties, modal frequencies, of two actual bridges from on a regular basis automobile journey information.

—Matarazzo et al.

The group collected smartphone information from managed discipline experiments and uncontrolled Uber rides on The Golden Gate Bridge—a long-span suspension bridge—and developed an analytical methodology to get well modal properties precisely.

The researchers additionally efficiently utilized the strategy to partially-controlled crowdsourced information collected on a short-span freeway bridge in Italy.

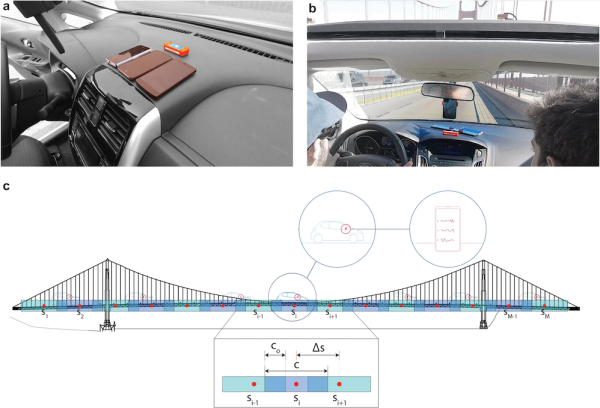

Illustration of managed information assortment and the spatial segmentation strategy. a Sensor structure on the dashboard of the primary automobile (Nissan Sentra) which was used to gather first fifty journeys. b Sensor structure on dashboard of the second automobile (Ford Focus) which was used to gather fifty-two journeys. For all automobile journeys over the Golden Gate Bridge, The smartphones have been dealing with upward, such that one axis was well-aligned with gravity. Such an orientation just isn’t strictly crucial; though, information on the configuration of the sensors is useful for information preprocessing. c Generic schematic of spatial segmentation of a bridge which is outlined by way of two impartial parameters: Δs and c, which stay uniform over the size of the bridge. The pink circles characterize the facilities of every phase, whereas the sunshine coloured packing containers present the phase widths. An in depth-up of three adjoining segments s_i−1, s_i, and s_i+1, is proven to element the segmentation parameters: c is the size of every phase, c_o is the size of the overlap between segments, and Δs is the gap between the facilities (pink circles) of adjoining segments. Matarazzo et al.

Smartphones that comprise dozens of sensors are carried by nearly 50% of the inhabitants globally. Current purposes of smartphones in civil engineering have proven that smartphone accelerometers can sufficiently seize structural vibrations. Theoretical and experimental analysis on vehicle-bridge interplay relationships have established governing equations and influential parameters.

The researchers discovered that bridge vibration frequencies might be recognized from smartphone-vehicle journey information in real-world situations. Information from a single journey is inadequate; but as few as 100 crowdsourced datasets can produce helpful modal frequency estimates (under 6 % error) for each short-span and long-span bridges.

Collectively, the analyses of managed and ridesourcing information (N = 174 whole) produced correct estimates of ten (seven distinctive) modal frequencies of the Golden Gate Bridge; 5 of which had an error of 0.000%. The variety of journeys thought-about within the major examine was lower than 0.1% of the day by day journeys made on the Golden Gate Bridge; this exhibits that there’s an infinite sensing potential represented by smartphones globally that accommodates helpful details about bridges and different essential infrastructure. Moreover, the accuracy of the most-probable modal frequencies (MPMFs) improved because the variety of datasets elevated.

—Matarazzo et al.

Additional evaluation projected that the inclusion of crowdsourced information in a upkeep plan for a brand new bridge may add greater than fourteen years of service (30% enhance) with out further prices.

Our outcomes recommend that large and cheap datasets collected by smartphones may play a task in monitoring the well being of current transportation infrastructure.

—Matarazzo et al.

Sources

• Matarazzo, T.J., Kondor, D., Milardo, S. et al. (2022) “Crowdsourcing bridge dynamic monitoring with smartphone automobile journeys.” Commun Eng 1, 29 doi: 10.1038/s44172-022-00025-4
