Well, it is separated again after I screwed it up.
Finally got enough parts to put the engine/gear together and provide the installation.

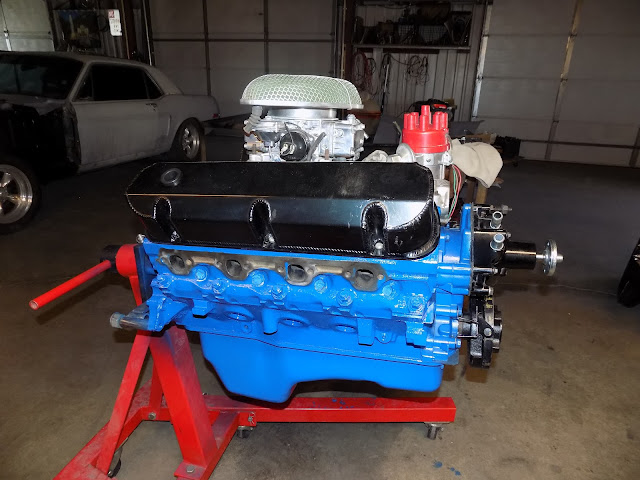

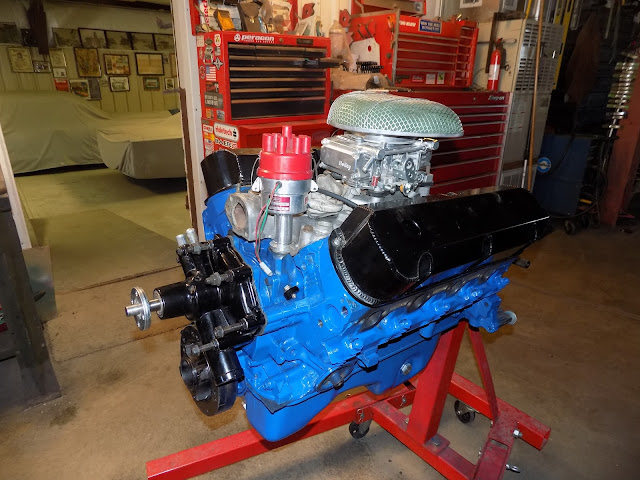

The distributor came by car, but was separated from the cap that was missing. I robbed the clips from the 82-302 I have and made my own brackets connected to the dealer and got the circuit diagram for the Mallory from the Internet. The 600 CFM Holley Unilite came by car and the air purifier is a fool of the 1970s that I had saved for 40 years.

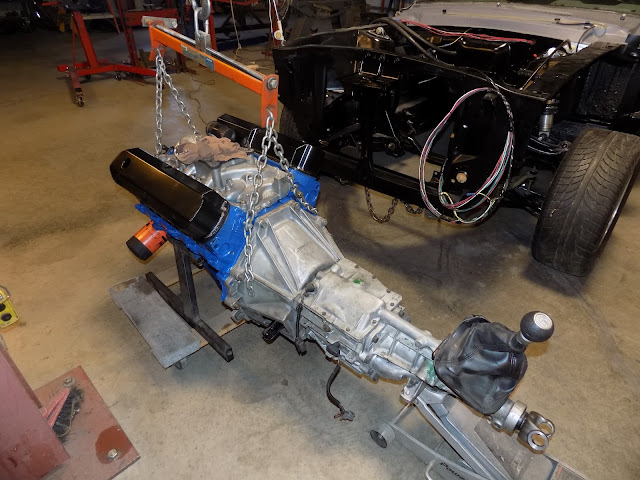

The engine was removed from the engine stand and a few travel stands were created. The new separator plate, the fly wheel, the pilot bearing, the clutch and the pressure plate installed. Then the bell housing, the throwing arm and the warehouse and the transmission.

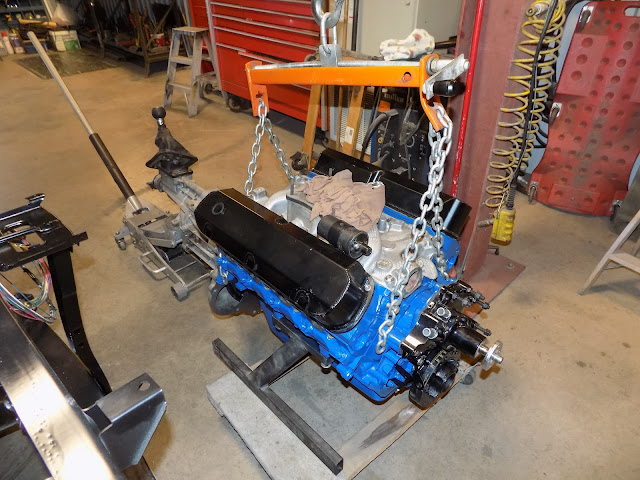

I used an adjustable motor loop so that the engine can be inclined enough to get it in the car with the gear.
A set after-market engine brackets came by car that took time and modification to fit them, but they worked out well. The new starter was also installed.

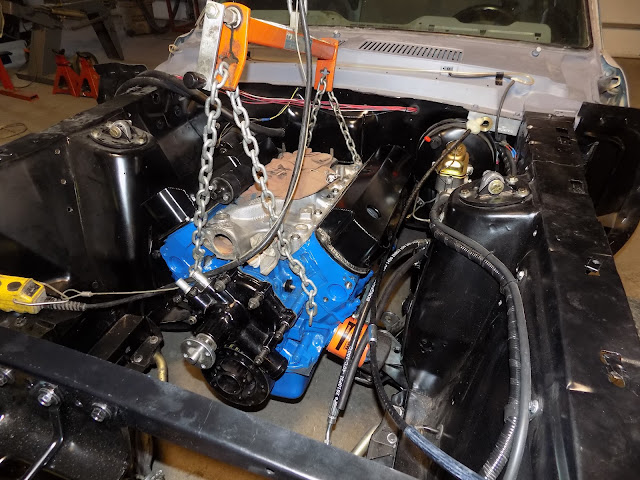

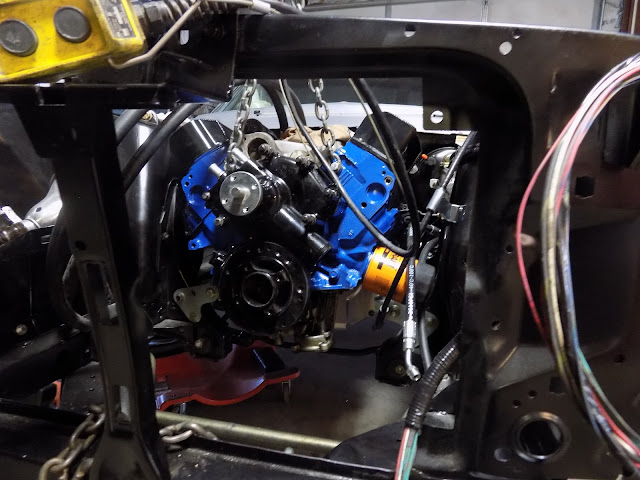

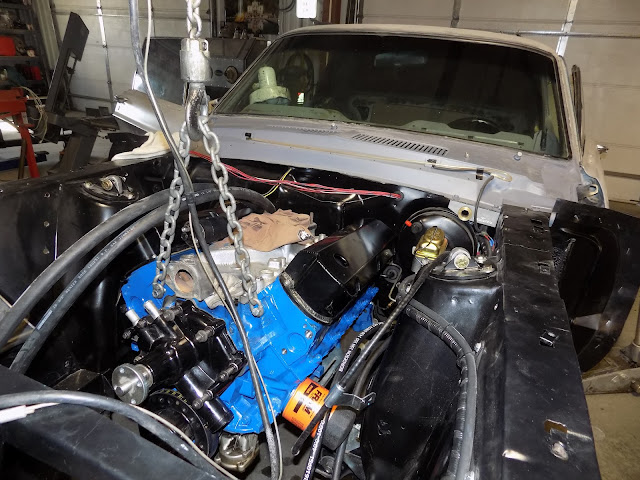

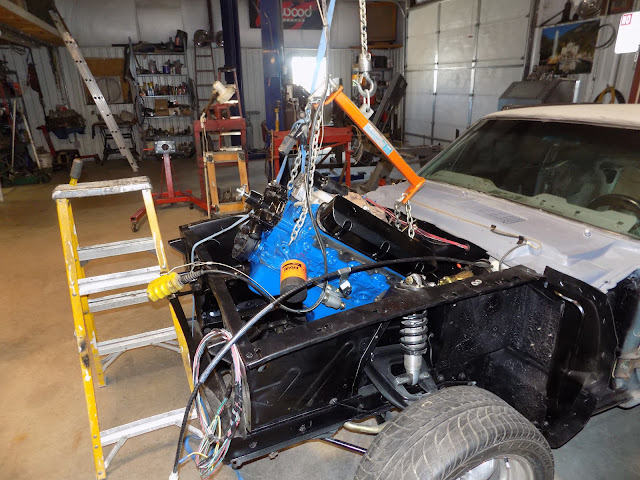

The engine went in order after a lot of pressing, pulling and wanking and the gearbox was lined up with the opening in the floor pan, but it would not be put on the brackets.

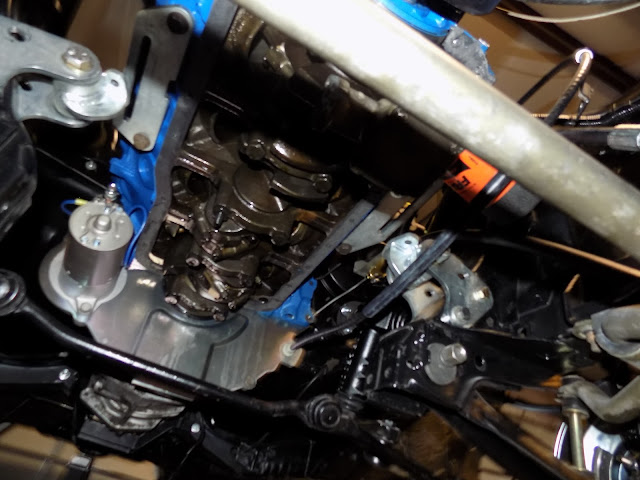

I joined the car and put it on Jackstands and found that the engine was set on the steering connection with steering center. I then tried to use spacers on the engine brackets to delete the steering that did not work because the engine angle was too big.
After a few research, I found that the 302 from 1992 used a dual swamp oil pan, in which the 68 engines used a single forward swamp form.

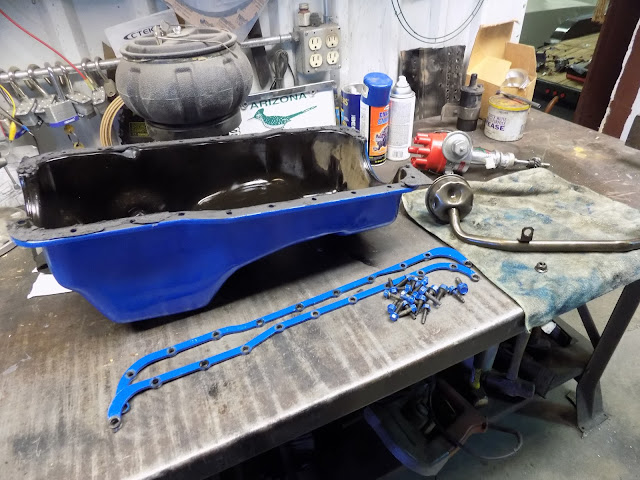

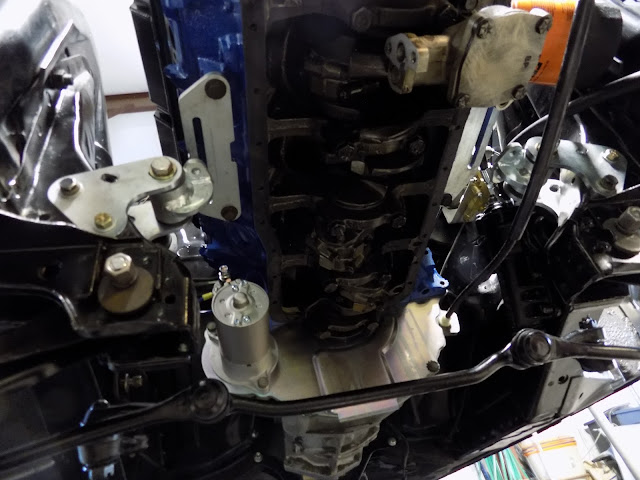

The dual swamp pan and the oil fish tube were removed and the engine just sat in the car. So if you want to add a newer engine to an older car, be sure to look for all changes in configuring the installations over the years.
A new front swamp oil pan, an oil -pickup tube and an oil pump kit was ordered by Jeg’s race, which should take place by the end of the week. I was not sure if the oil pump was different, so a new one was ordered.
