Construct an Exaust system

[ad_1]

Considered one of my objectives on this 4105 undertaking was to make use of as lots of the 2 components automotive components on the 41 Cadillac with out shopping for new components. I’ve a lot of the exhaust programs from the 05 & 07 together with another left over components from different initiatives, together with 2 mufflers, to make use of for this method.
The 05 exhaust (under) was eliminated as an entire meeting.

Build an Exaust system

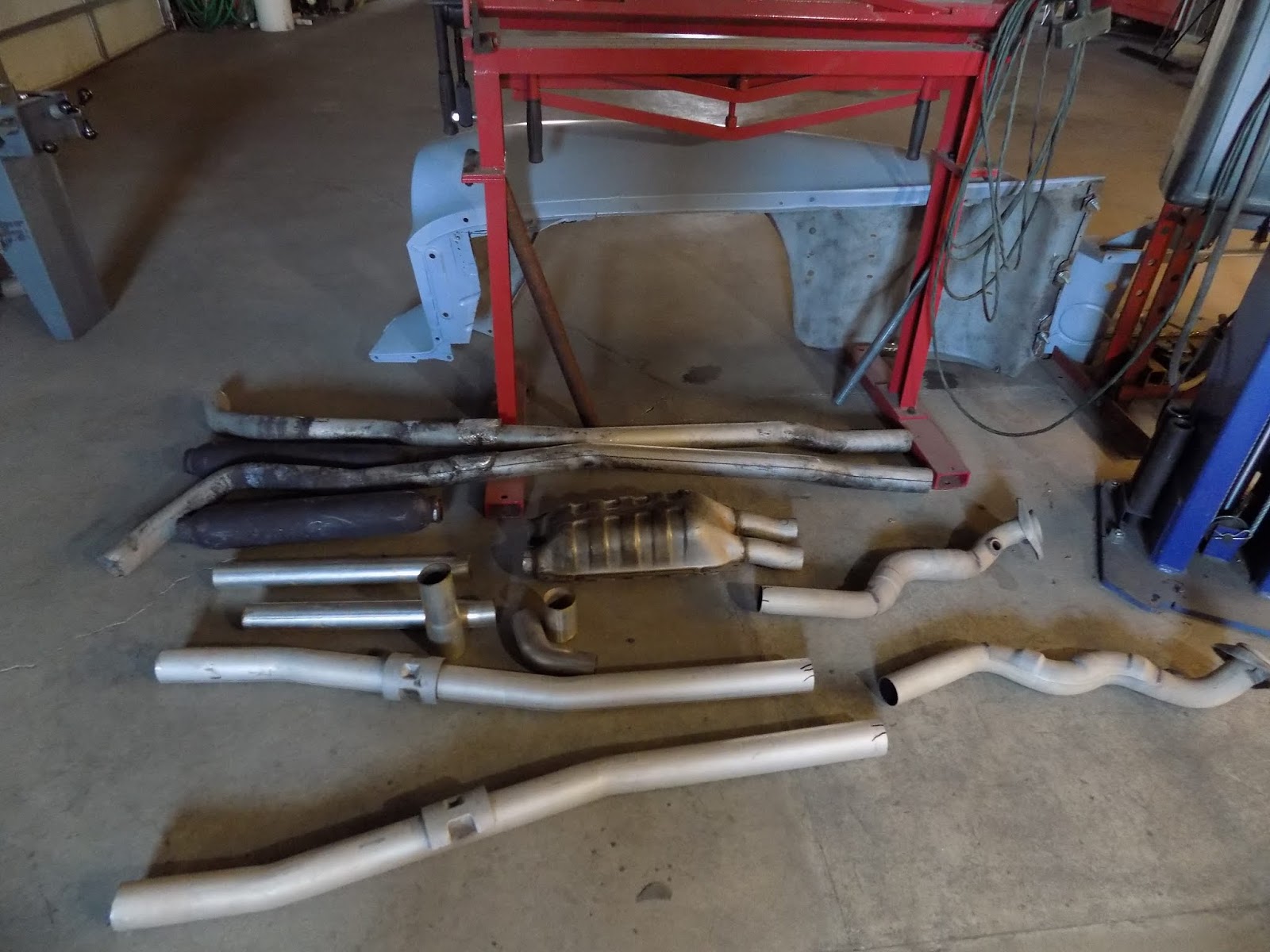

 There two of all the two” exhaust components besides the tail pipes and mufflers.

1648797676 103 Build an Exaust system

 The 05 pipes have been held in place as an entire meeting to see the place the 41 body would intrude with it, minimize aside for 3 items – head pipes, resonator & 2 rear pipes. The pinnacle pipes have been bolted to the catalytic converters and I selected to make use of the 05 that has warmth shields one each on the transmission the 07 solely had one.

1648797677 918 Build an Exaust system

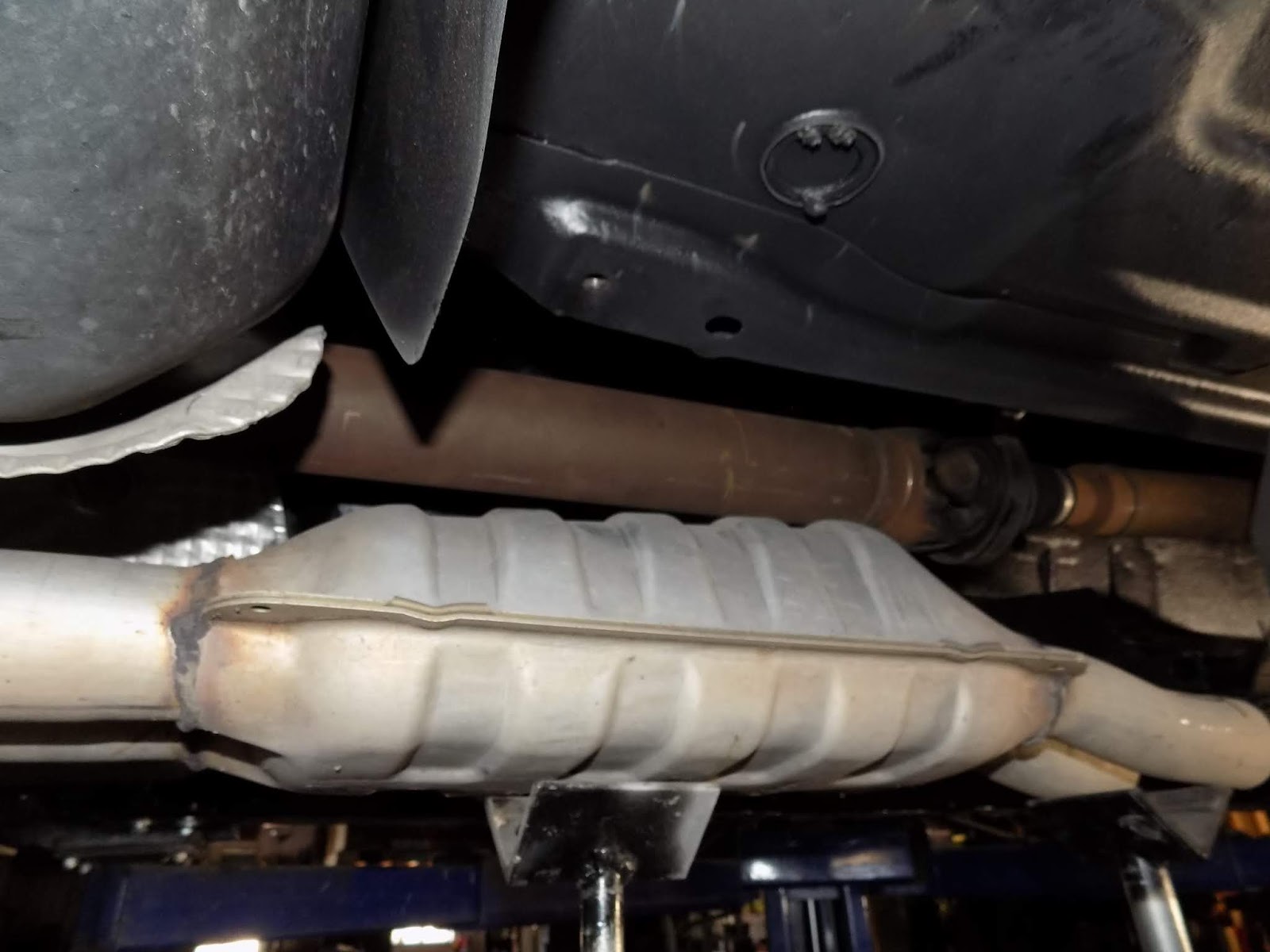

 The resonator / collector wouldn’t match within the inventory location and needed to be moved again behind the X member of the 41 body.

1648797677 558 Build an Exaust system

 I needed to maintain it away from the U-joint and sinter provider bearing and was moved to the place there sufficient room on the heart of the rear drive shaft, then I used items of the 07 straight a part of the pipes to increase from the top pipes to the resonator.

1648797678 5 Build an Exaust system

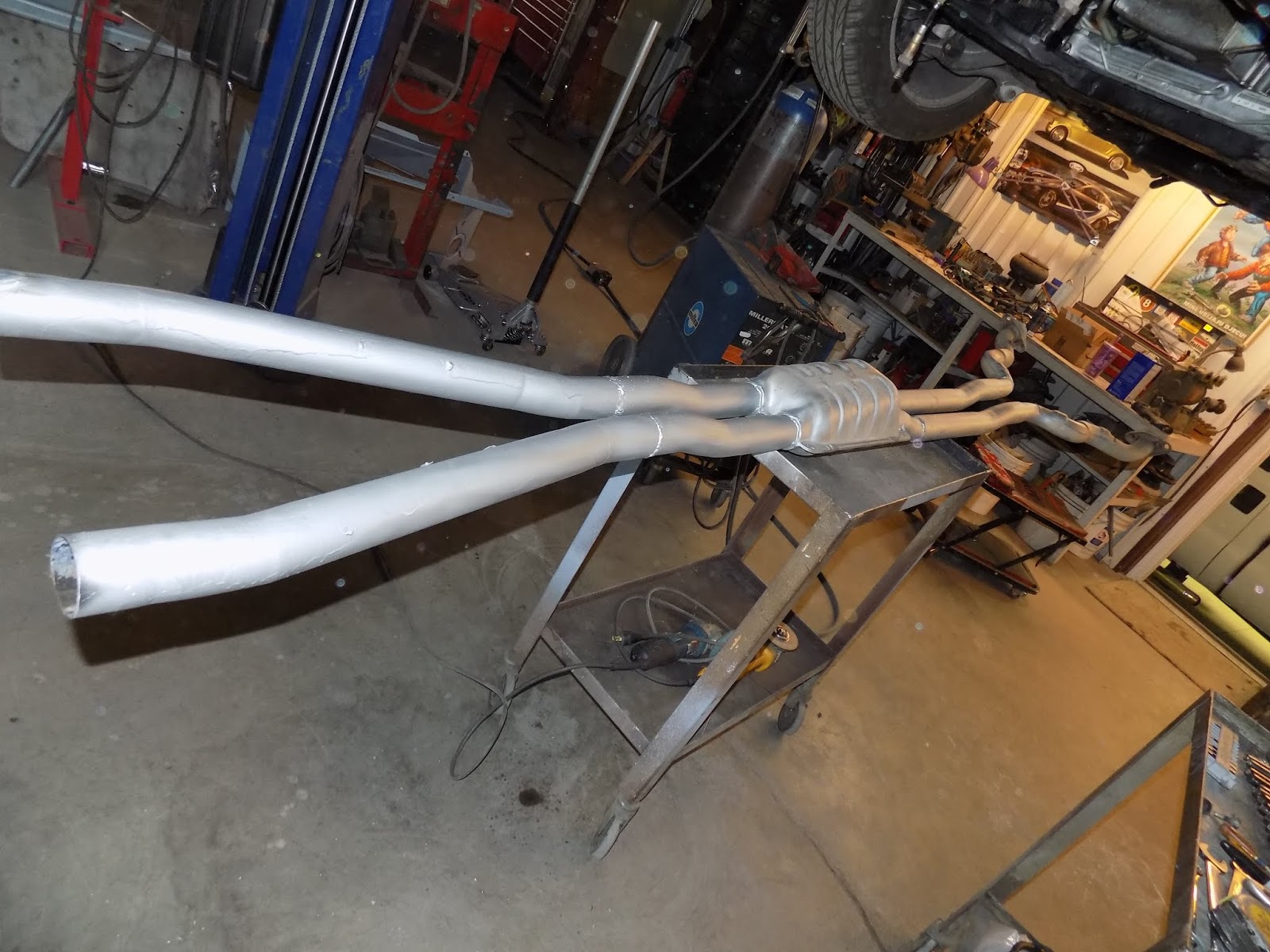

 Right here you may see the top pipes then the 07 pipes, resonator and final the  rear part of the 07 pipes.

1648797678 997 Build an Exaust system

 The items have been tack welded in place as they have been match then eliminated and welded collectively.

1648797678 0 Build an Exaust system

 The inventory warmth shields have been used wherever doable.

1648797678 638 Build an Exaust system

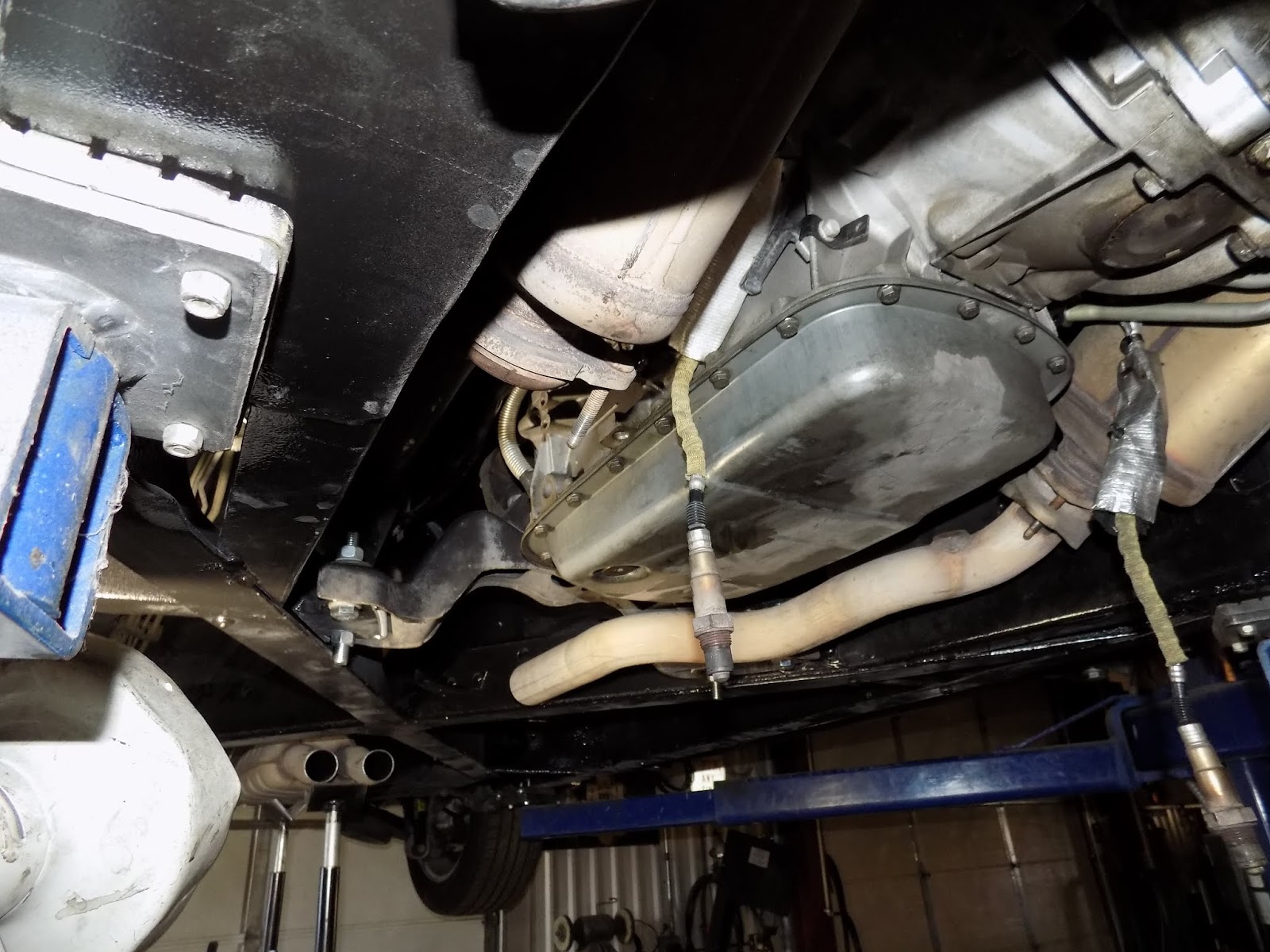

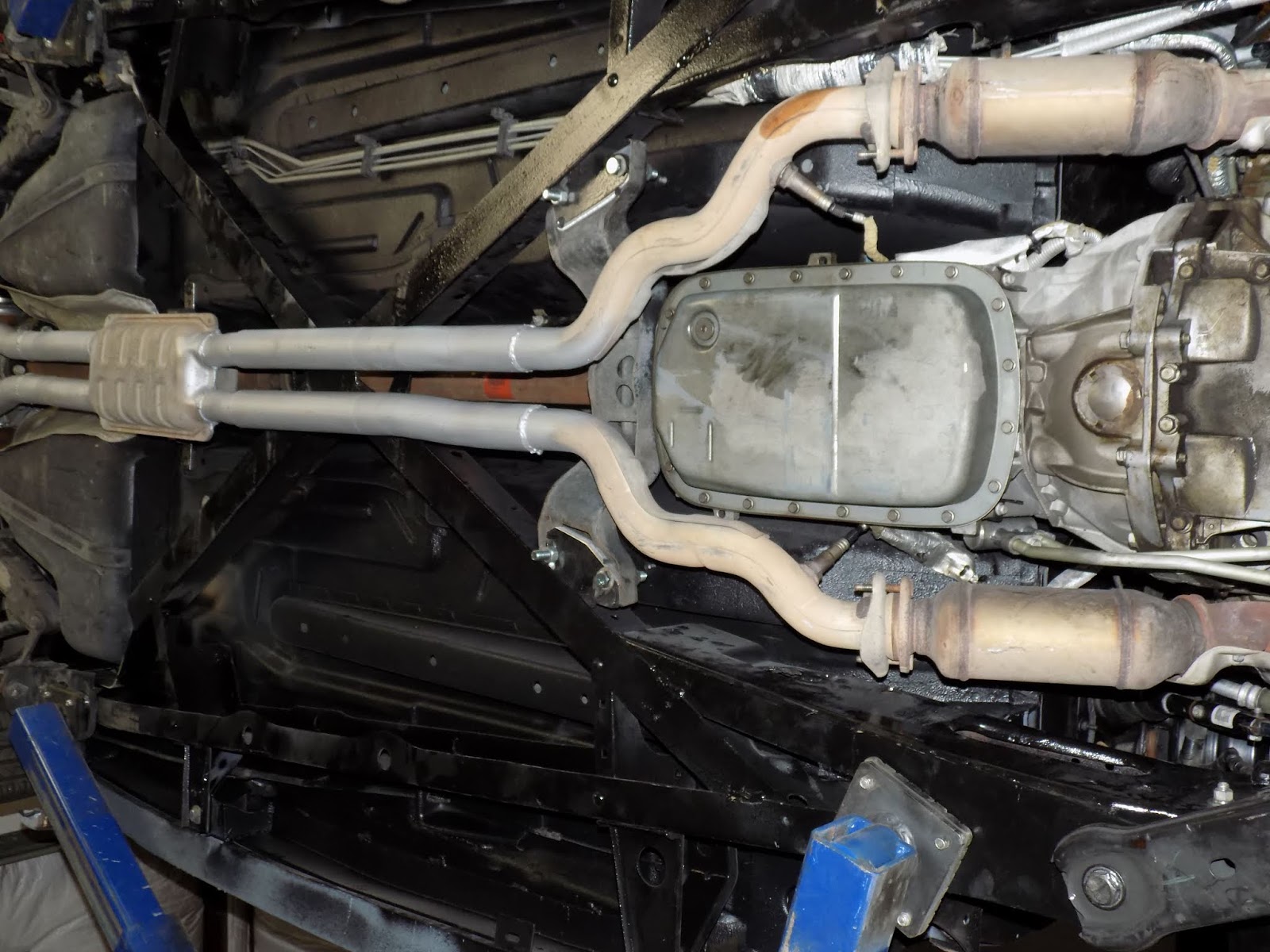

 The meeting was bolted again in place then helps put in on the resonator.

1648797678 186 Build an Exaust system

 Tail pipes shall be put in after the rear bumper is full and perhaps mufflers because the automotive will not be very loud now with the converters and resonator in place.

1648797679 26 Build an Exaust system

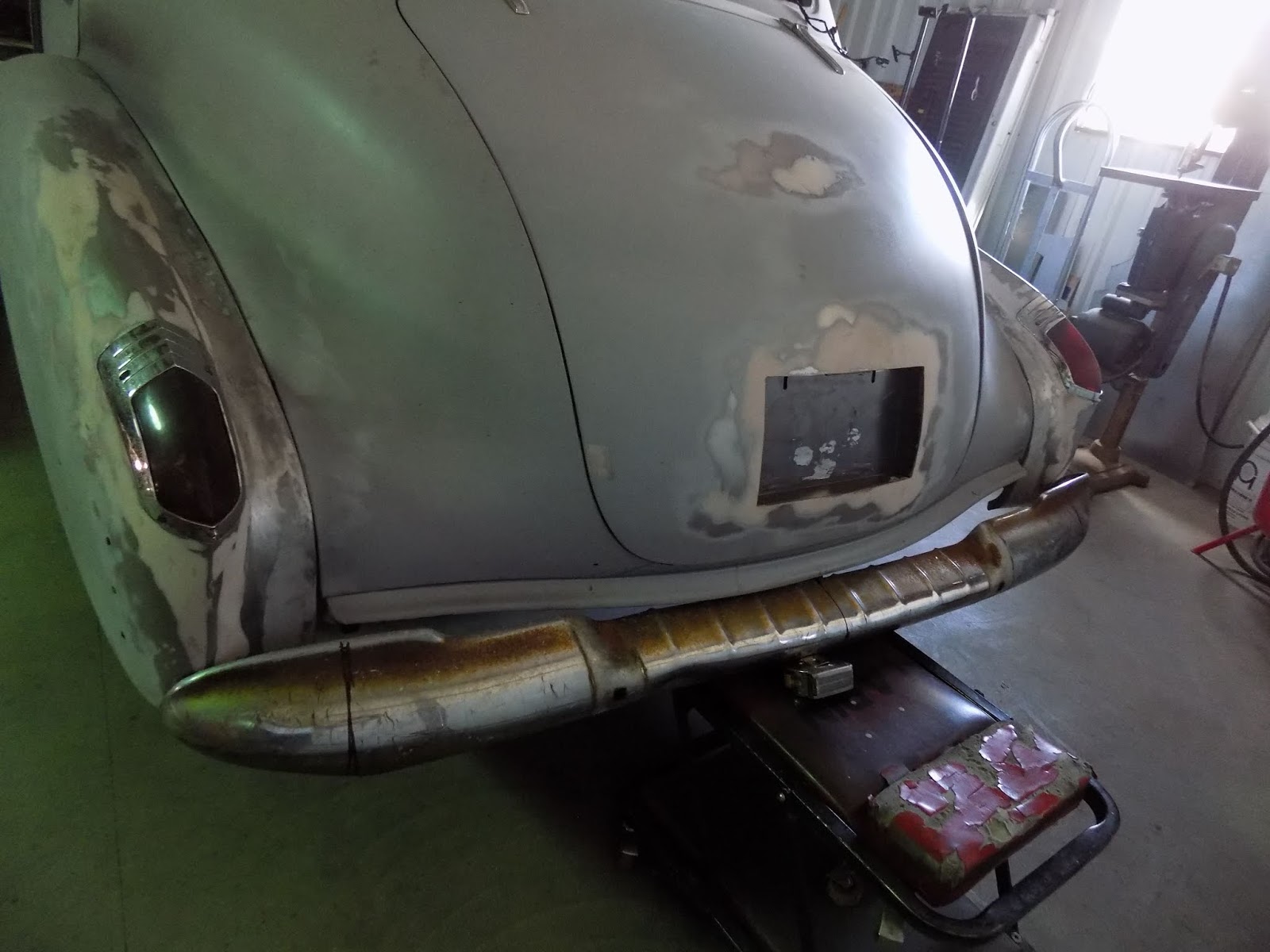

 The rear bumper is the subsequent little undertaking on my checklist, it will likely be minimize down and reshaped to suit the again of the automotive.

1648797679 552 Build an Exaust system
